IPB-5000B
9. Timing Chart
9-8

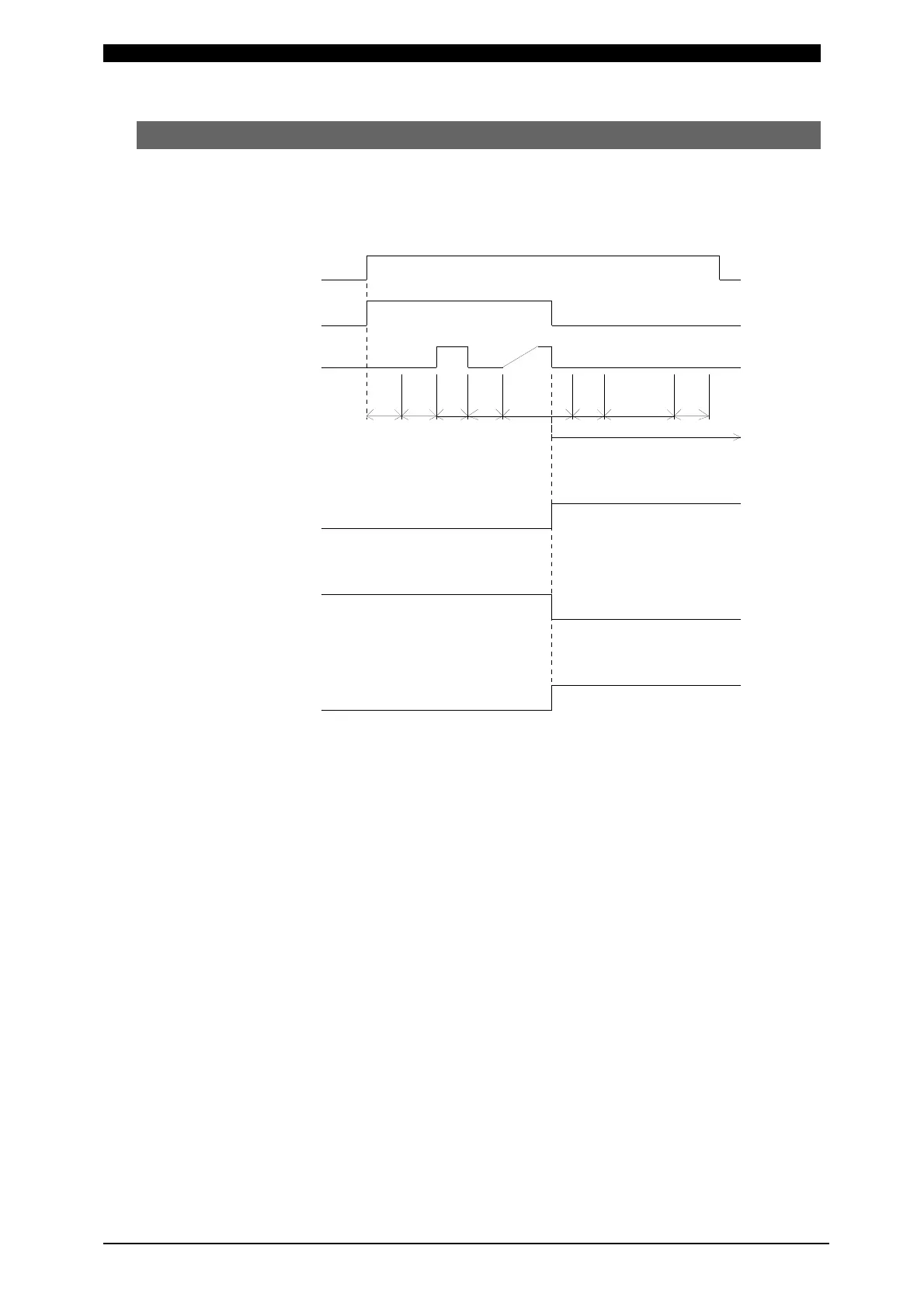

(7) At Occurrence of “Error” or “Caution”
A sample weld sequence is shown, which represents the occasion where NG or
CAUTION is produced while current is supplied.
Note) Reset an error at least a second after an error is displayed.
If an error is reset immediately, the display may not disappear.
2ND STAGE
SOL2 Outp ut
CAUTION O utput
NG OUTPUT:
NORMALLY OPEN
NG Output
NG Output
（EN D Ou tpu t is not pro duc ed.）
Sequence i s not perform ed
after NG o r Caution is produced.
Weld Cu rrent
W2 HOCOW1CPRCSQZ
OFF
ON
OFF
OFF
OFF
OFF
SQD
NG OUTPUT:
NORMALLY CLOSE
To Next Page
