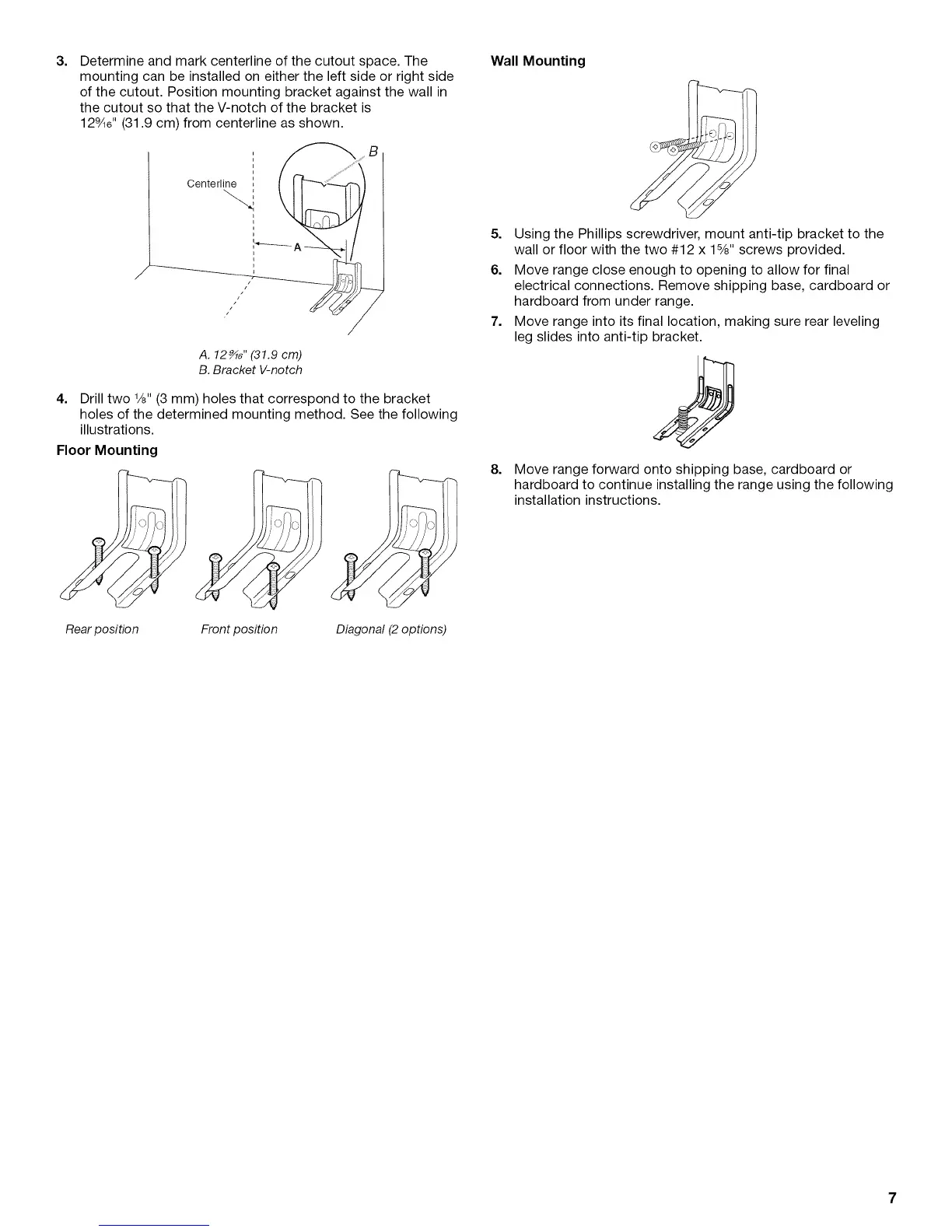

3.
Determine and mark centerline of the cutout space. The
mounting can be installed on either the left side or right side
of the cutout. Position mounting bracket against the wall in
the cutout so that the V-notch of the bracket is
12%6" (31.9 cm) from centerline as shown.
A. 12_" (31.9cm)
B. Bracket V-notch
4=
illustrations.
Floor Mounting
Rearposition
Drill two 1/8"(3 mm) holes that correspond to the bracket
holes of the determined mounting method. See the following
Front position Diagonal (2 options)
Wall Mounting
5.
6.
7=
Using the Phillips screwdriver, mount anti-tip bracket to the
wall or floor with the two #12 x 15/8"screws provided.
Move range close enough to opening to allow for final
electrical connections. Remove shipping base, cardboard or
hardboard from under range.
Move range into its final location, making sure rear leveling
leg slides into anti-tip bracket.
8. Move range forward onto shipping base, cardboard or
hardboard to continue installing the range using the following
installation instructions.
