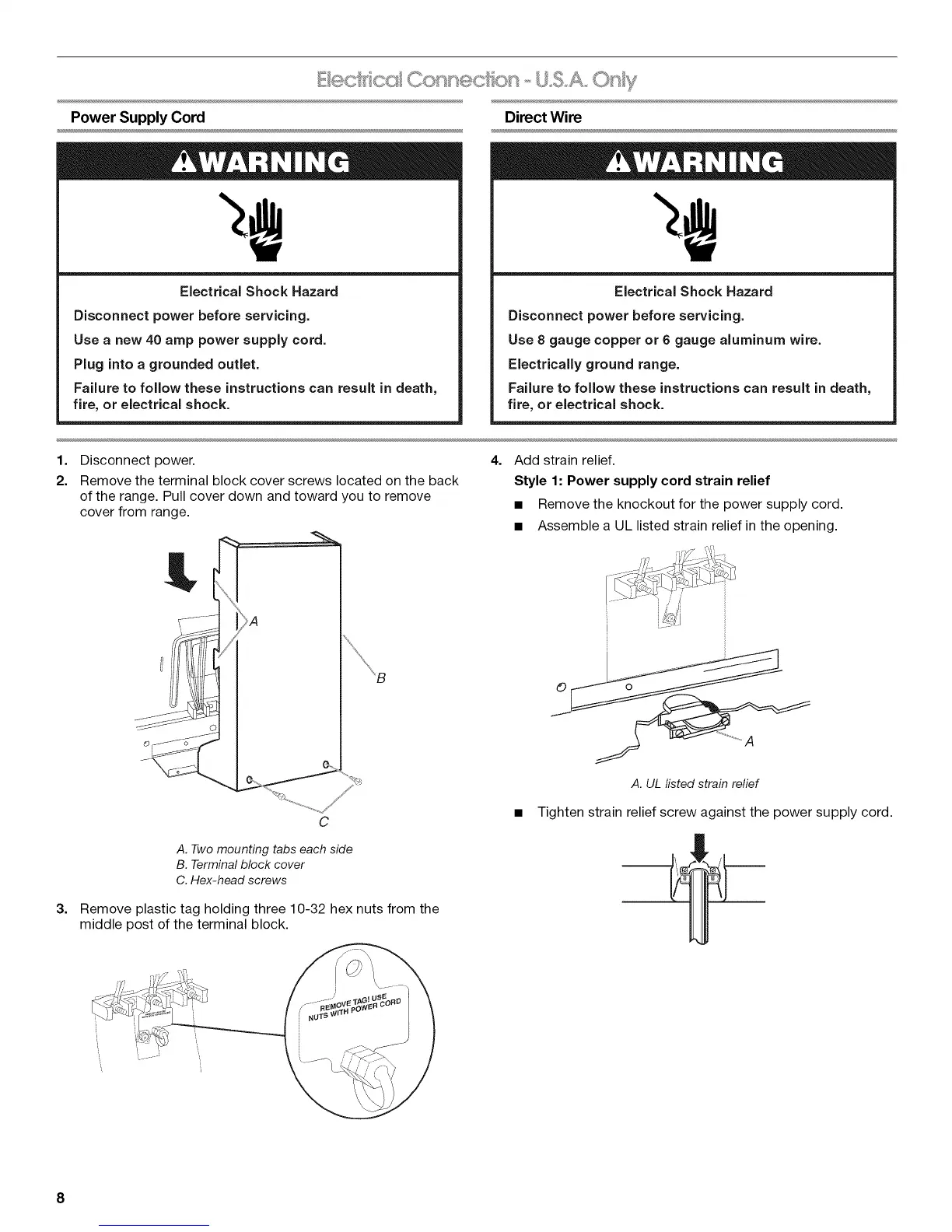

Power Supply Cord
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Direct Wire
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper or 6 gauge aluminum wire.
Electrically ground range.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1=
2.
3.
Disconnect power.
Remove the terminal block cover screws located on the back
of the range. Pull cover down and toward you to remove
cover from range.
C
A. Two mounting tabs each side
B. Terminalblock cover
C.Hex-head screws
Remove plastic tag holding three 10-32 hex nuts from the
middle post of the terminal block.
4= Add strain relief.
Style 1: Power supply cord strain relief
• Remove the knockout for the power supply cord.
• Assemble a UL listed strain relief in the opening.
A. UL fisted strain relief
• Tighten strain relief screw against the power supply cord.
8
To Next Page
