4. Loosen air shutter screw and open or close air
shutter.
A
B

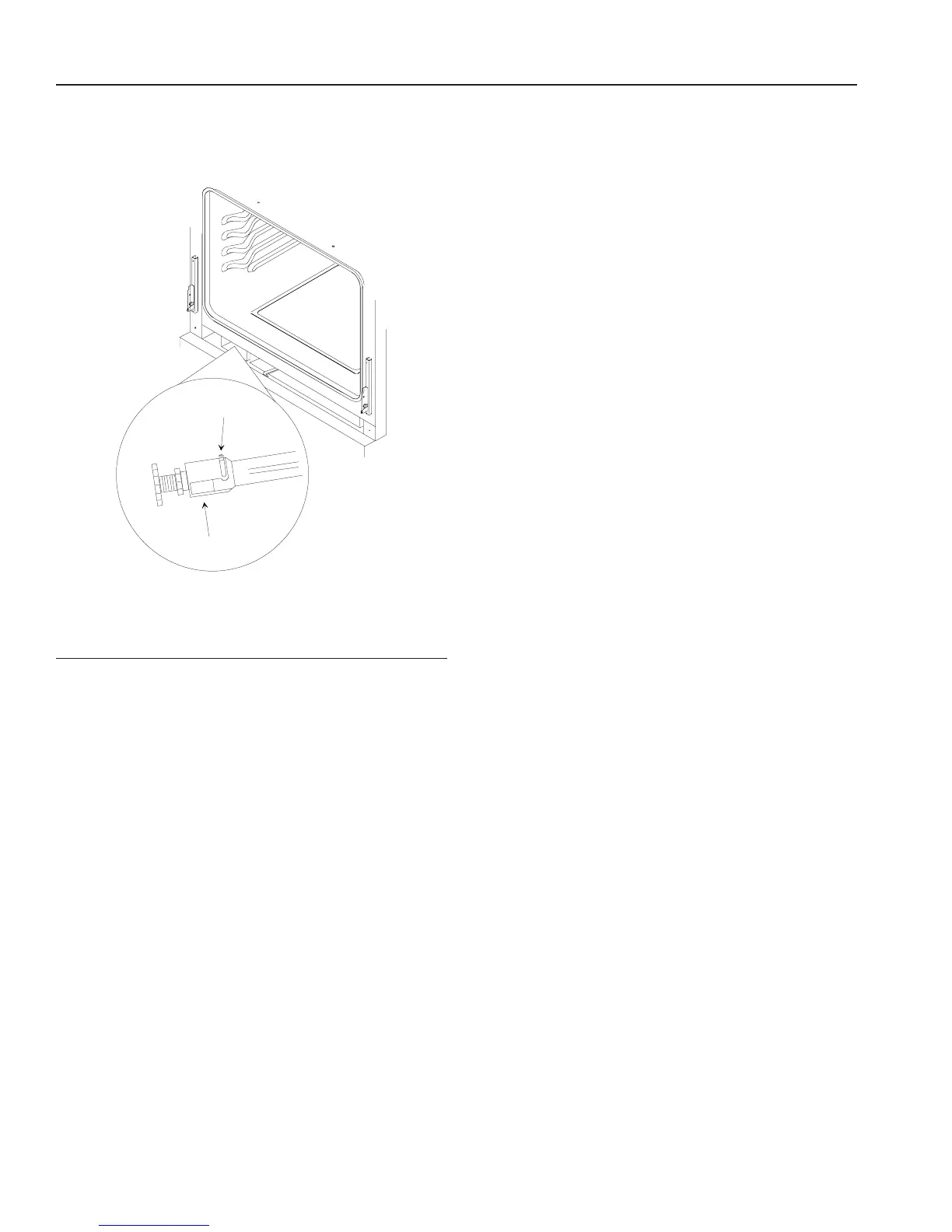

A—Air Shutter Screw
B—Air Shutter
Loosen air shutter screw
5. Replace trim after burner is tested and air shutter is
properly adjusted.
Test Broiler Flame
Broiler flame should appear hazy or fuzzy. Haze should
be no more than
3
/8-inch thick. The radiant screen should
begin to glow red or oven within 1–2 minutes.
Because broiler has a fixed orifice it can not be adjusted.
Broiler does not have an air shutter.
Removal and Replacement of Oven
1. Disconnect power to oven at circuit breaker or fuse
panel.
2. Turn off manual shutoff gas valve, and disconnect gas
supply.
3. Remove oven, unplug power cord, and place oven
aside.
4. To reinstall oven, follow instructions in
Installation
section of this manual.
• Do not reuse a flexible connector after moving
appliance.
