and

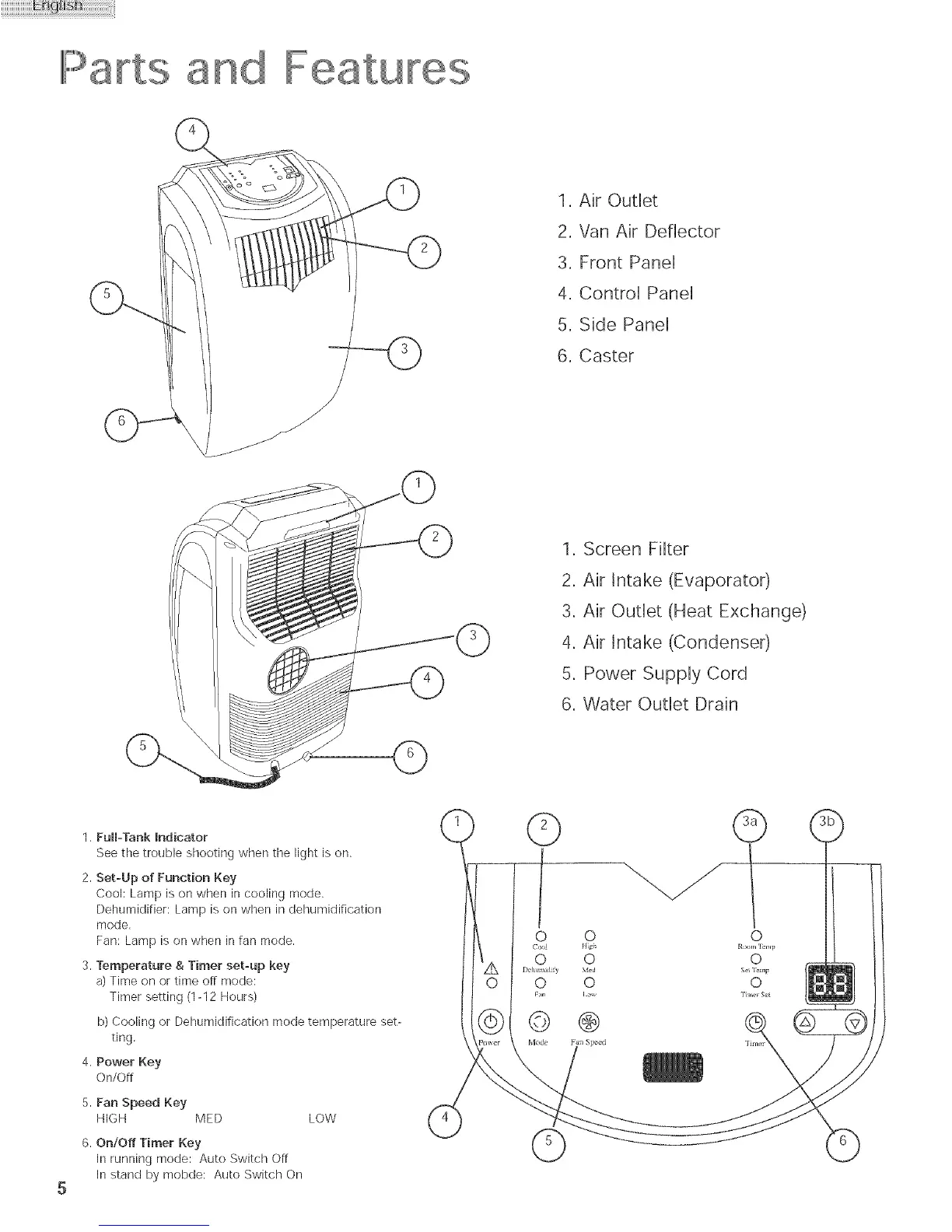

1. Air Outlet

2. Van Air Deflector

3. Front Panel

4. Control Panel

5. Side Panel

6. Caster

1. Screen Filter

2. Air Intake (Evaporator)

3. Air Outlet (Heat Exchange)

4. Air Intake (Condenser)

5. Power Supply Cord

6. Water Outlet Drain

1. Full-Tank mndicator

See the trouble shooting when the light is on.

2. SetoLJp of Function Key

Cool: Lamp is en when in cooling mode.

Dehumidifier: Lamp is on when in dehumidification

mode.

Fan: Lamp is on when in fan mode.

3. Temperature & Timer set-up key

a) Time en or time of[ mode:

Timer setting (1-12 Hours)

b) Ceoling or Dehumidificatien mode temperature set-

ting,

4. Power Key

On/Of[

Fan Speed Key

HIGH MED LOW

On/Off Timer Key

In running mode: Auto Switch Off

In stand by mebde: Auto Switch On

O O

0 0
