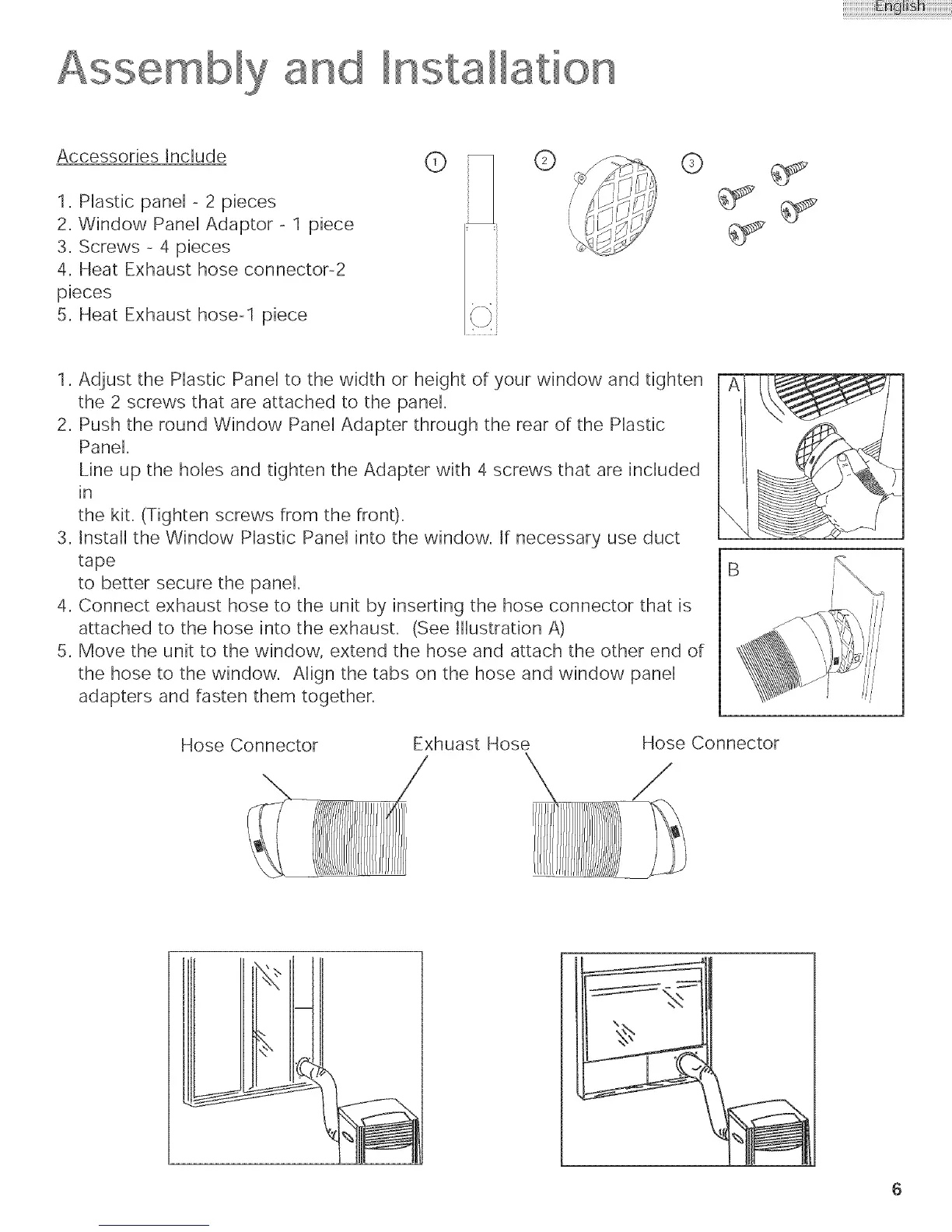

and nsta
Accessories Include
1. Plastic panel 2 pieces
2. Window Panel Adaptor 1 piece
3. Screws 4 pieces
4. Heat Exhaust hose connector 2
pieces
5. Heat Exhaust hose1 piece
© ©
©
1. Adjust the Plastic Panel to the width or height of },our window and tighten
the 2 screws that are attached to the panek
2. Push the round Window Panel Adapter through the rear of the Plastic
Panek
Line up the hobs and tighten the Adapter with 4 screws that are included
in
the kiL (Tighten screws from the front).
3. Install the Window Plastic Panel into the window. If necessary use duct
tape
to better secure the panek
4. Connect exhaust hose to the unit by inserting the hose connector that is
attached to the hose into the exhausL (See Illustration A)
5. Move the unit to the window, extend the hose and attach the other end of
the hose to the window. Align the tabs on the hose and window panel
adapters and fasten them togethen
B
Hose Connector
Exhuast Hose Hose Connector
