Assembly and Installation
IN DOOR
Assembly Instruction

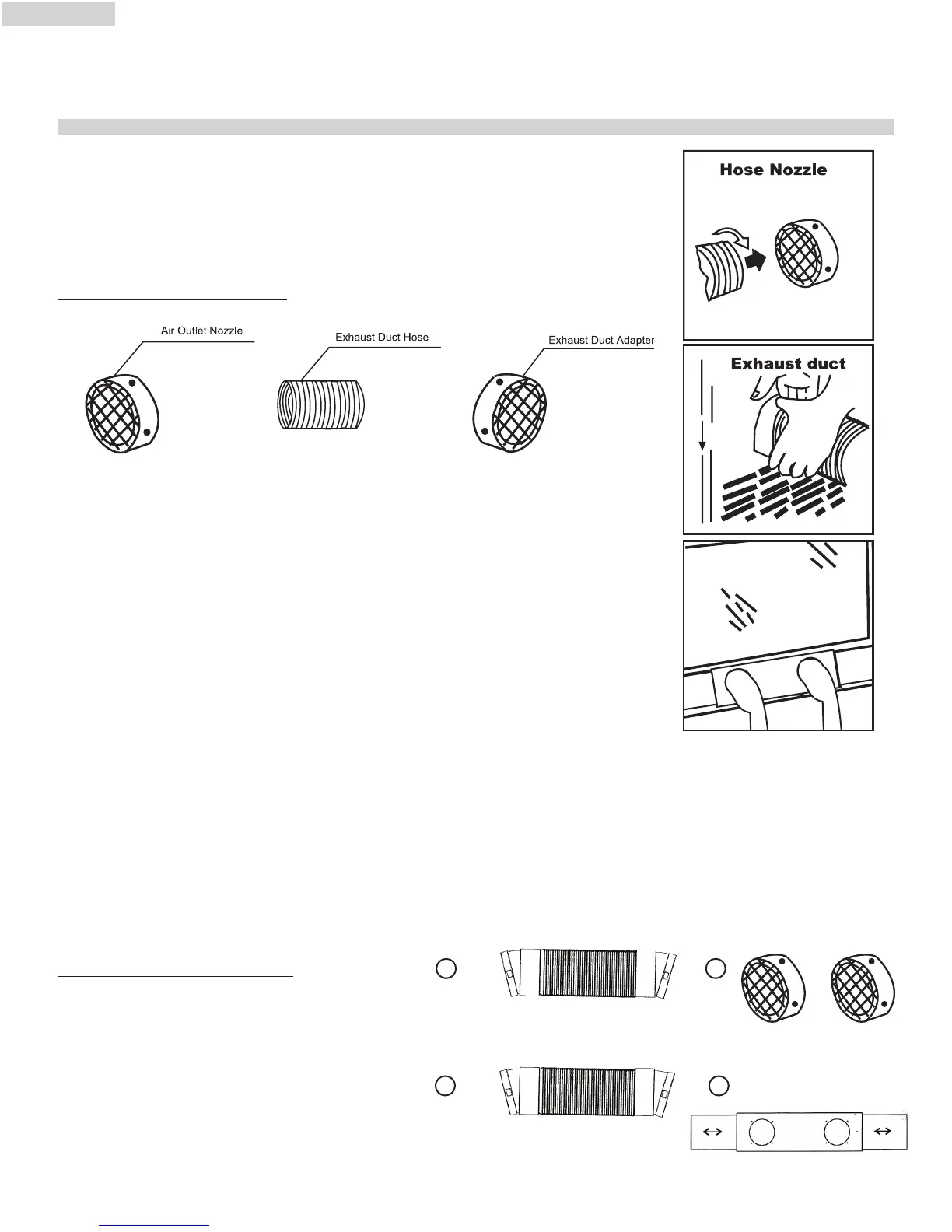

A. Connect exhaust hose to the back of the unit. Extend hose to desired
length and connect with window kit.
USING EXHAUST DUCT SET
1. Insert ends of Exhaust hose into air outlet nozzle and Exhaust
duct “A” by twisting until it stops.
2. Fix the Exhaust duct “A” to the exhaust outlet on the rear of
the unit. This is achieved by sliding the appropriate connector
downward over the exhaust outlet, ensuring that the lugs on
the outlet are engaged with the grooves on the connector.
3. The exhaust hose is snap-fit to the unit. To take it off, turn it
clockwise and remove.
Note: Air outlet hose should be mounted at right side
(see fig. 1)
4. Extend the Exhaust hose and close the Window as far as
possible, trapping the air outlet nozzle.
B. Repeat same steps for the air intake hose.
USING WINDOW PANEL KIT
1. Air Inlet Hose - 1 set
2. Air Outlet Hose - 1 set
3. Window Exhaust Adapter - 2 pieces
4. Window/Patio Door Slider Kit - 1 set
1
2
3
4
Fig. 2
Window Kit Installation
To Next Page
