33
RS2240002 Rev.
1
Disassembly
WAR
NI
NG
!
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.

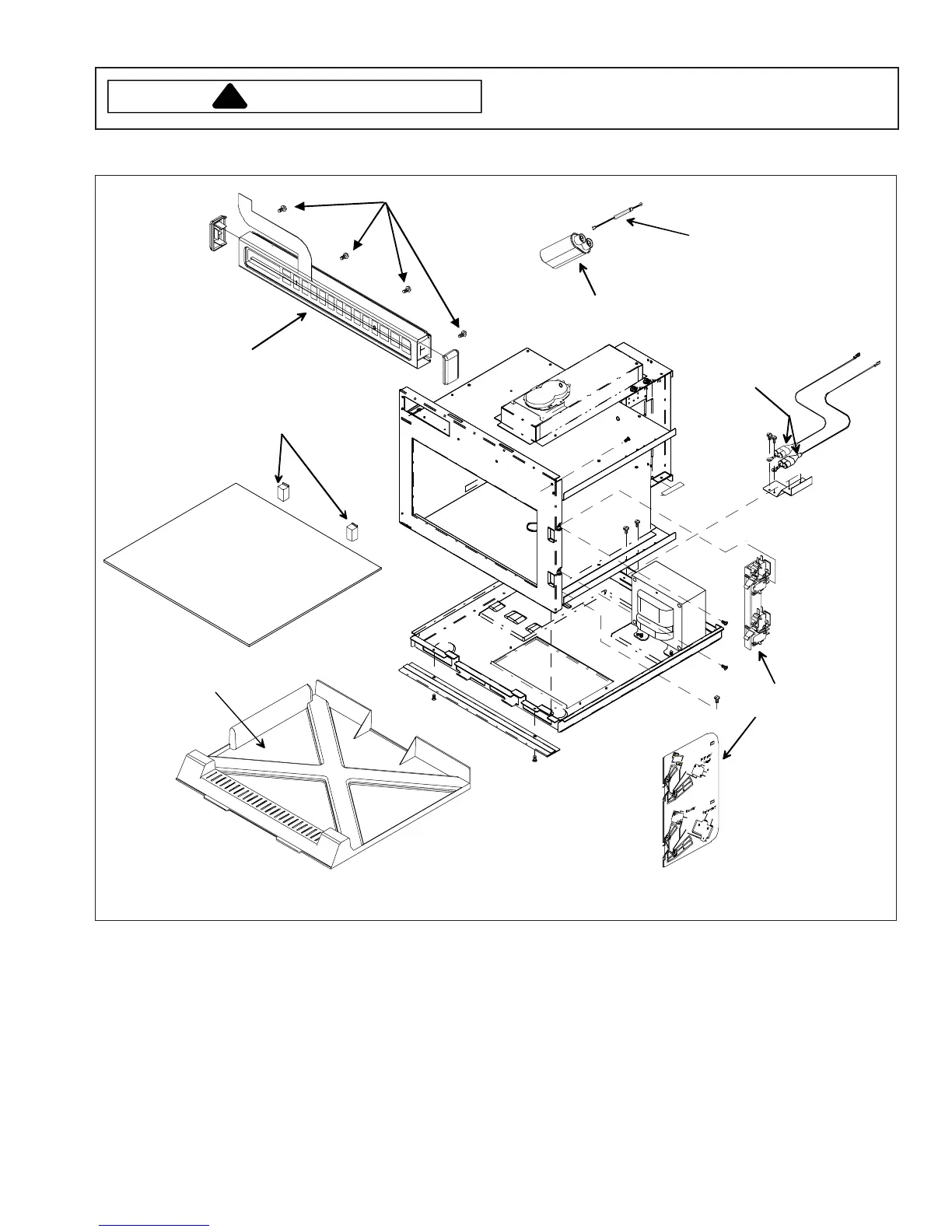

Component Location
Figure 1
In
terlock s
w
it
ch
a
s
semb
lies
Touc
h pane
l
Scre
ws
Grea
se Shiel
d
Di
ode lo
catio
n
2 ma
gn
et
ron
o
ve
ns
O
v
en T
ray
Tray supports
D
iod
e lo
catio
n
sin
gle m
agnetr
on
o
ve
ns
Cap
acitor
32
34
Table of Contents
English
3
Important Product Information
2
Table of Contents
3
Important Information
4
Important Safety Information
5
Product Information
8
Antenna Blade
8
Blower/Fan Assembly
8
Grease Shield
8
Door Interlock and Monitoring Switch
8
Auto Transformer
8
Transformer High Voltage
8
High Voltage Capacitor
8
High Voltage Diode (Rectifier)
8
Magnetron
8
Installation
9
Unpacking Oven
9
Oven Placement
9
Radio Interference
9
Grounding Instructions
9
Installation Unpacking Oven
9
Care and Cleaning
10
Changing Oven Light Bulb
10
Cleaning Interior, Exterior, and Door
10
Cleaning Splatter Shield
10
Care and Cleaning Changing Oven Light Bulb
10
Cleaning Air Intake Filter
11
Cleaning Discharge Air Vents
11
Control Panel Features
12
Displays
13
Cooking Methods
13
Cooking Displays
13
Programming Displays
13
Displays Cooking Methods
13
Operation
14
Interrupting Operation
14
Canceling Mistakes
14
Operating Preprogrammed Pads
14
Using X2 Pad
14
Manual Time Entry
14
Operation Interrupting Operation
14
Programming Instructions
15
Memory Pads
15
Multiple Cooking Stages
15
X2 Quantity Feature
15
User Options
16
Component Testing Procedures
17
Test Modes
21
Power Test
21
Microwave Energy Leakage Testing
22
Equipment
22
Procedure for Measuring Radiation Leakage
22
Measurement with the Outer Case Removed
22
Measurement with a Fully Assembled Oven
22
Record Keeping and Notification after Measurement
22
Troubleshooting
23
Initial Power up
23
Troubleshooting Initial Power up
23
Standby Condition
24
Cook Condition
25
Disassembly
26
Door Removal
26
Inner Door/Window Removal
26
Door Disassembly
26
Door Handle
26
Hinge
26
Disassembly Door Removal
26
Interlock Switch Assembly
27
Switch Replacement / Door Adjustment
28
Outer Case
29
Back Panel
29
Grease Shield
29
Antenna Assembly-Top
29
Antenna Motor-Top
29
Oven Tray Removal
29
Antenna Assembly-Bottom
29
Antenna Motor-Bottom
30
Touch Panel Assembly
30
Control Board
30
Interlock Switch Assembly
30
Magnetron Cutout (TCO)
30
Triac
30
Diodes
30
Magnetron
30
Cavity Thermal Cutout Replacement
31
Fuse
31
Blower Wheel and Motor
31
Fan Blade
31
Auto Transformer
31
High Voltage Transformer
32
Capacitor
32
Power Cord
32
Lamp Receptacle
32
Replacing Oven Lamp
32
Component Location
33
Figure 2
34
Figure 3
35
