ACCESSORIES
34
EXTERNAL FILTER RACK ( EFR02 )
SIDE WALL VENT KIT (0170K00000S/0170K00001S)
SIDE WALL VENT KIT (0170K00000S)
This side wall only vent kit #0170K00000S is to be used
with 2” - 3” vent systems. This kit is NOT intended for use
with single pipe (indirect vent) installations.
The vent kit must terminate outside the structure and may
be installed with the intake and exhaust pipes located side-
by-side or with one pipe above the other.
See the section in this manual under "Vent Flue and Com-
bustion Air Pipe Terminations" for more information or con-
sult the Installation Instructions (IO-635).
SIDE WALL VENT KIT (0170K00001S)
This side wall only vent kit #0170K00001S is to be used
with 2” vent systems. This kit is NOT intended for use with
single pipe (indirect vent) installations.
The vent kit must terminate outside the structure and may
be installed with the intake and exhaust pipes located side-
by-side or with one pipe above the other.
See the section in this manual under "Vent Flue and Com-
bustion Air Pipe Terminations" for more information or con-
sult the Installation Instructions (IO-805).
Vertical Installation
Horizontal Installation
SLOTS IN FILTER
CLEAR SCREWS
ON UNIT
FRONT
OF UNIT
LOWER EDGE
SCREW
UNIT SIDE
PANEL
90% Upflow Model Furnaces

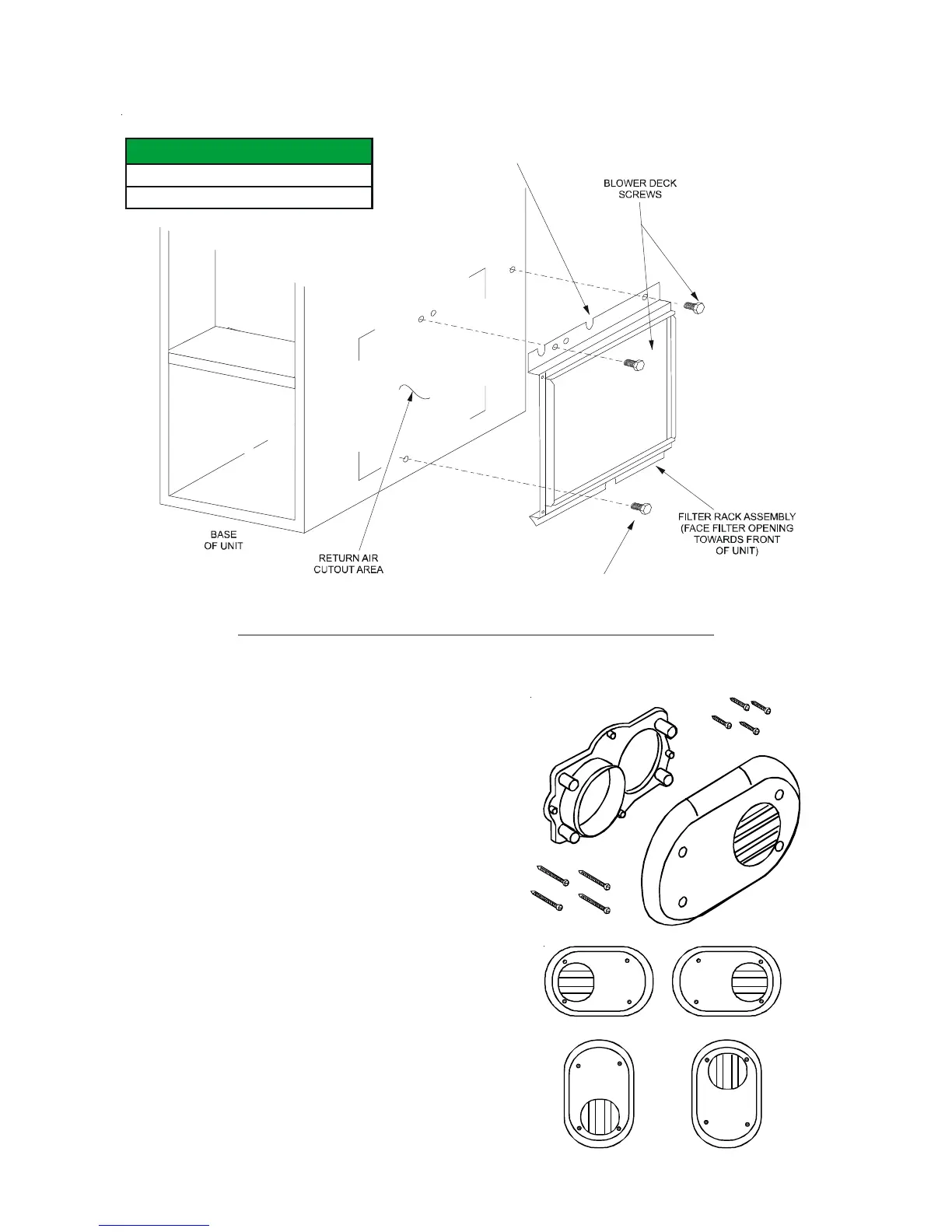

EFR02 EXTERNAL FILTER RACK KIT
Used on Models
