Amana RC22S - Service Test; Multiple H.V. System Testing; Door Cycles and Magnetron Hours

25 RS2220001 Rev. 2
Service Test
Multiple H.V. System Testing
Two or three H.V. Systems may be tested together.

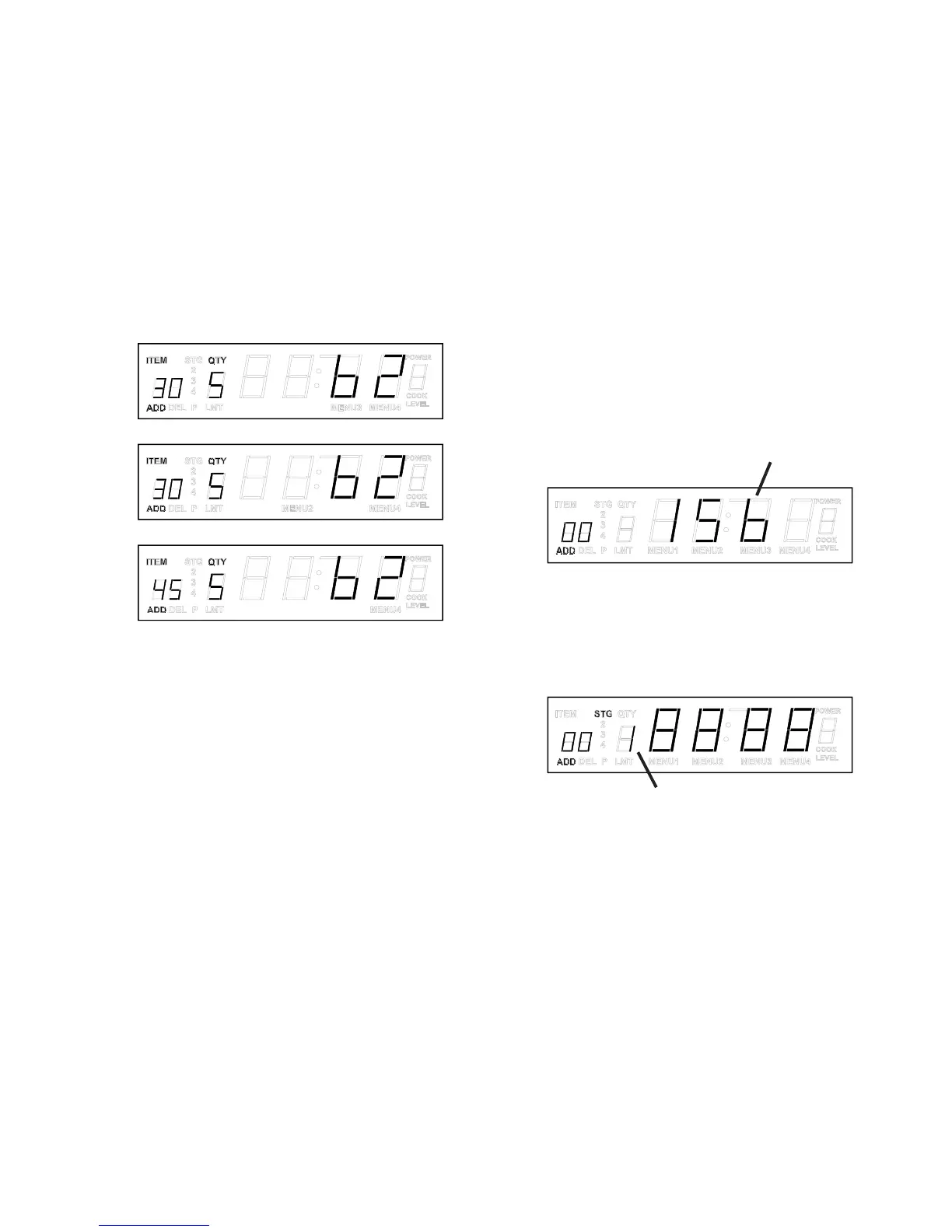

Below are display samples showing different
combinations.
NOTE: This is not showing actual amperage, but a
current reference.
Example: If one H.V. System is showing a current
reading of 15, then any two H.V. Systems
may have a reading of about 30, and all three
H.V. Systems may have a reading of about
45. Current reference readings will vary.
MENU1 MENU2
H.V. System 1 & 2
MENU1 MENU3
H.V. System 1 & 3
MENU1 MENU2 MENU3
H.V. System 1 , 2, & 3
Door Cycles and Magnetron Hours
• Press TIME ENTRY pad once for door cycles.
NOTE: Door cycle counter advances one number for
every 100 door cycles.
Example:
Display reads 156 x 100 = 15,600 (Actual
door cycles)
• Press TIME ENTRY pad again for H.V. section
# 1 hours.
• Press TIME ENTRY pad again for H.V. section
# 2 hours.
• Press TIME ENTRY pad again for H.V. section
# 3 hours.
• Press TIME ENTRY pad again reverts to door
cycles.
Door Cycles
Display
Magnetron Hours
Display
Number of
Door Cycles
Magnetron
Hours
Indicates Operating
H.V. System
