Amana SR520T User Manual

April 1998 77 RS5290000 Rev. 0
Kit Instructions
3. Dispenser Models

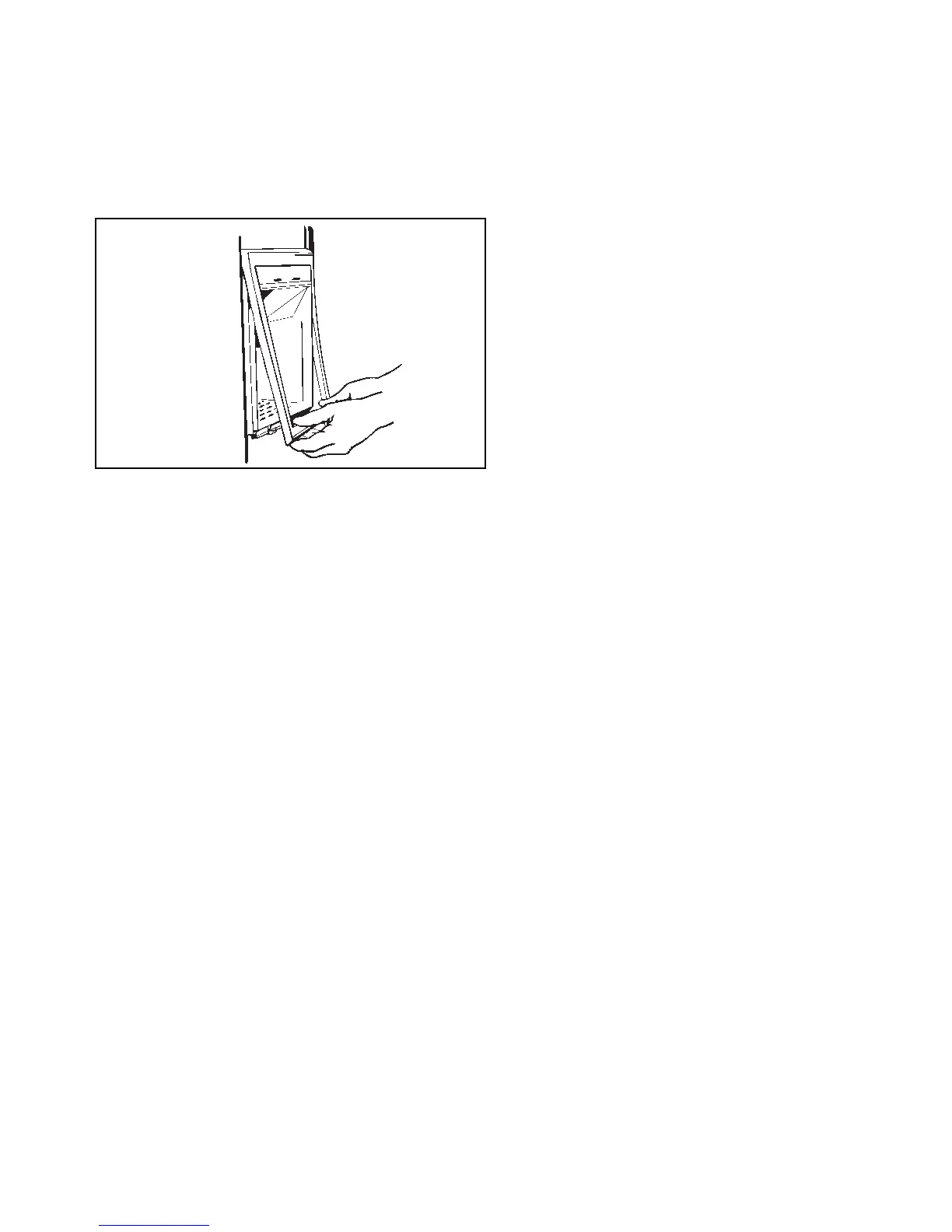

Remove crushed/cubed ice switch cover on dispenser
by pulling forward. Remove screws from bottom of
dispenser cover. Release bottom clips on dispenser
cover by placing taped edge of putty knife underneath
cover and pulling out. Release top clips by holding
bottom of dispenser cover out and sliding up.
4. Non Dispenser Models
Remove center trim by grasping trim along inside
edge of door and pulling forward.
Dispenser Models
Remove center trim on refrigerator door by grasping
trim along inside edge of door and pulling forward.
Remove center trim on freezer door by removing
screws.
5. Non Dispenser Models
Install new black center trim by snapping in place.
Dispenser Models
Install new black center trim on refrigerator door by
snapping in place. Install new black center trim on
freezer door by placing trim on door. Insert and
tighten screws.
Important
One piece of center trim will not be used.
6. Dispenser Models
Replace dispenser cover by snapping in place.
Insert and tighten screws. Replace switch by
snapping in place.
7. Install new black handles by placing handles on
refrigerator. Insert and tighten screws.
8. Place new black inserts above each handle. Install
new black trim above each handle by snapping in
place. Hold new black inserts below each handle.
Install new black trim below each handle by snapping
in place.
9. Remove toe grille by pulling forward. Install new
black toe grille by inserting clips in holes and
snapping in.
10. Remove door stops by removing screws. Install new
black door stops by placing door stops on doors.
Insert and tighten screws.
