Installation

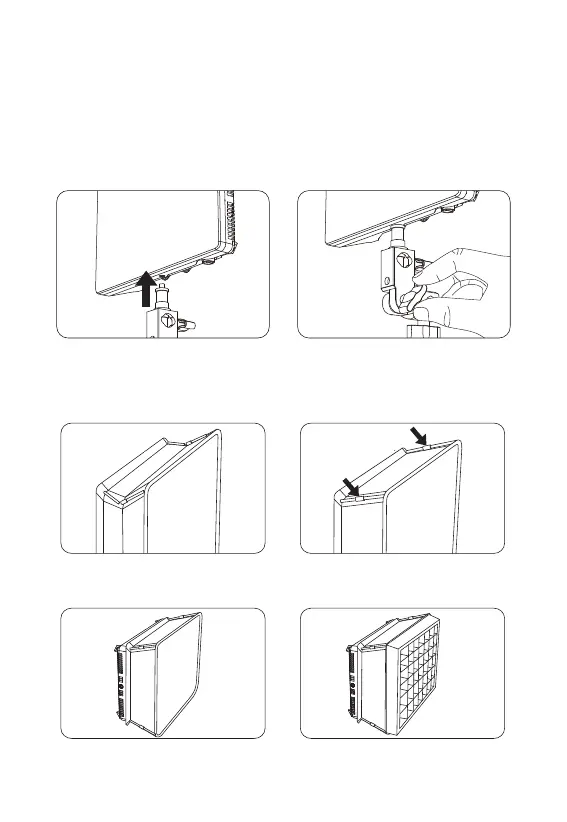

1. The lamp fixing
2. Softbox installation
Screw the 1/4’’ to 3/8’’ screw clockwise into the 1/4’’ copper nut at the
bottom (or side) of the LED lamp, and tighten it;Connect the 1/4’’ to 3/8’’
screw and the lamp holder through the lamp holder support column,
adjust the appropriate angle and tighten it.
The light soft box can be installed according to the needs of use.
1. Stretch soft box
2. Straighten the two support
rodson both sides of the soft
box to become a support rod
3. Install the soft box to the
lamp body
4. The grid can be installed
according to the requirements
- 6 -
