12.3.1 Applying the spray liquid
Example:
Required spray rate:
200 l/ha
Intended operational speed:
8 km/h
Nozzle type:
LU/XR
Nozzle size:
'03'
Permissible pressure range for the
spraying nozzle when fitted
min. pressure 3 bar
max. pressure 8 bar
Target spray pressure:
3.7 bar
Permissible spray pressure:
3.7 bar ±25 %
min. 2.8 bar and max. 4.6 bar
1. Prepare and stir the spray liquid correctly in
accordance with the instructions from the
crop protection product manufacturer.

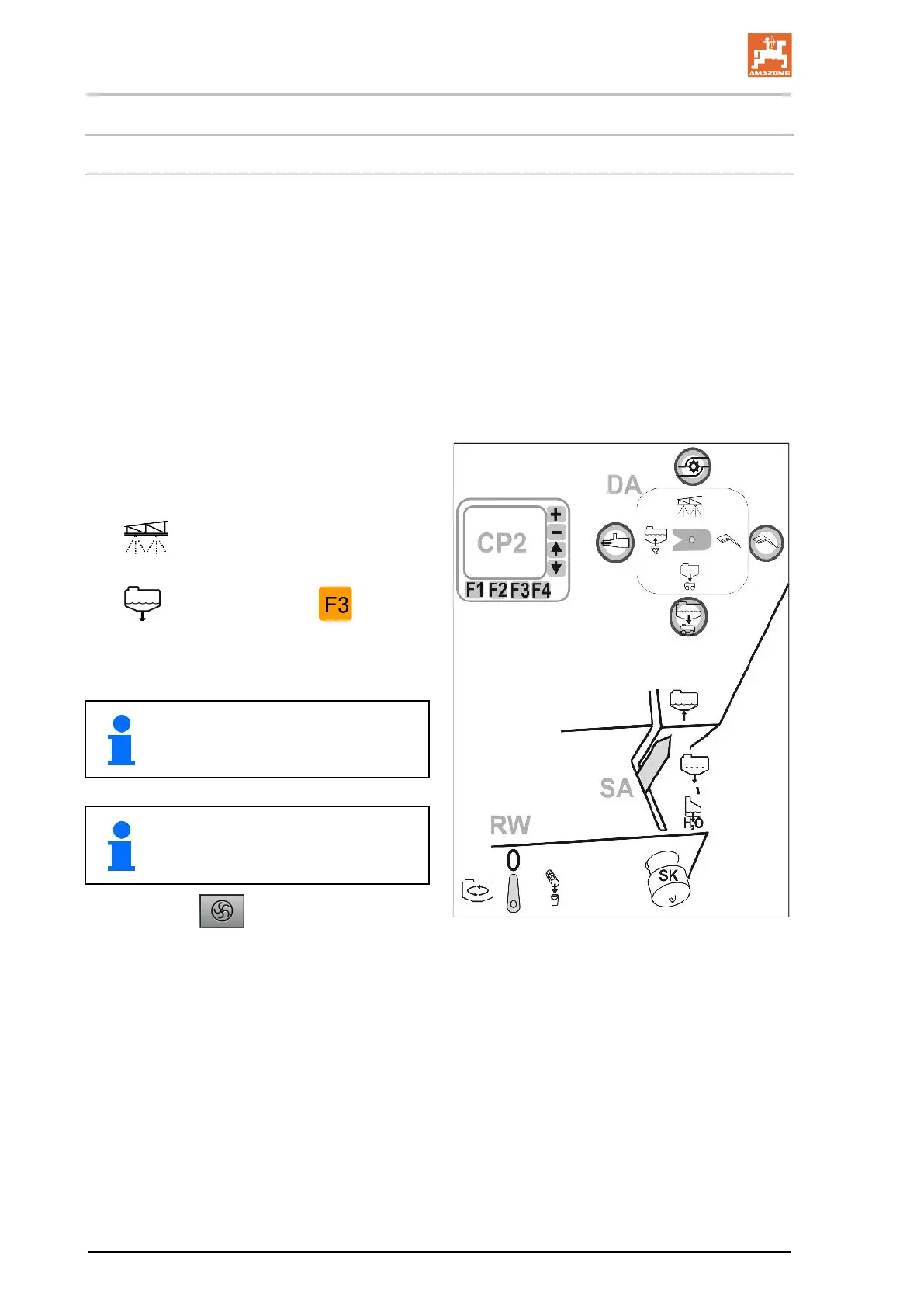

2. Function selection switch DA to position
.
3. Control suction valve chest SA in position
; if necessary, actuate on the
control terminal.
4. Set the agitator capacity with switch tap
RW
.
In order to achieve the maximum appli-
cation rate, switch off the additional
agitator, position 0.
The main agitator is automatically con-
trolled depending on the filling level.
5. AmaDrive: If necessary, switch on
the pumps and drive at the pump operating
speed.
