Version 1.1 ©Copyright 2022, Ambient LLC. All Rights Reserved. Page 8
1. IP Address. The default setting is receiving automatically (DCHP), which is recommended.
The network will assign an IP address. To statically assign an IP address, select Static from
the pull-down menu. This will prevent the IP address from changing each time you power up
the OBSERVERIP2.0 receiver.
2. Static IP Address. If Static is selected as the IP address, enter the IP address you wish to
access the OBSERVERIP2.0 module.
3. Static Subnet Mask. Default is 255.255.255.0. This should not be changed unless you are
familiar with networking and subnet masking.
4. Static Default Gateway. This is typically the IP address of your router.
If you made any Static IP Address changes (not recommended), to confirm these changes, select
Apply and Reboot.
Note: If you incorrectly set the static IP settings and can no longer access the OBSERVERIP2.0, press
the reset button on the back of the module.

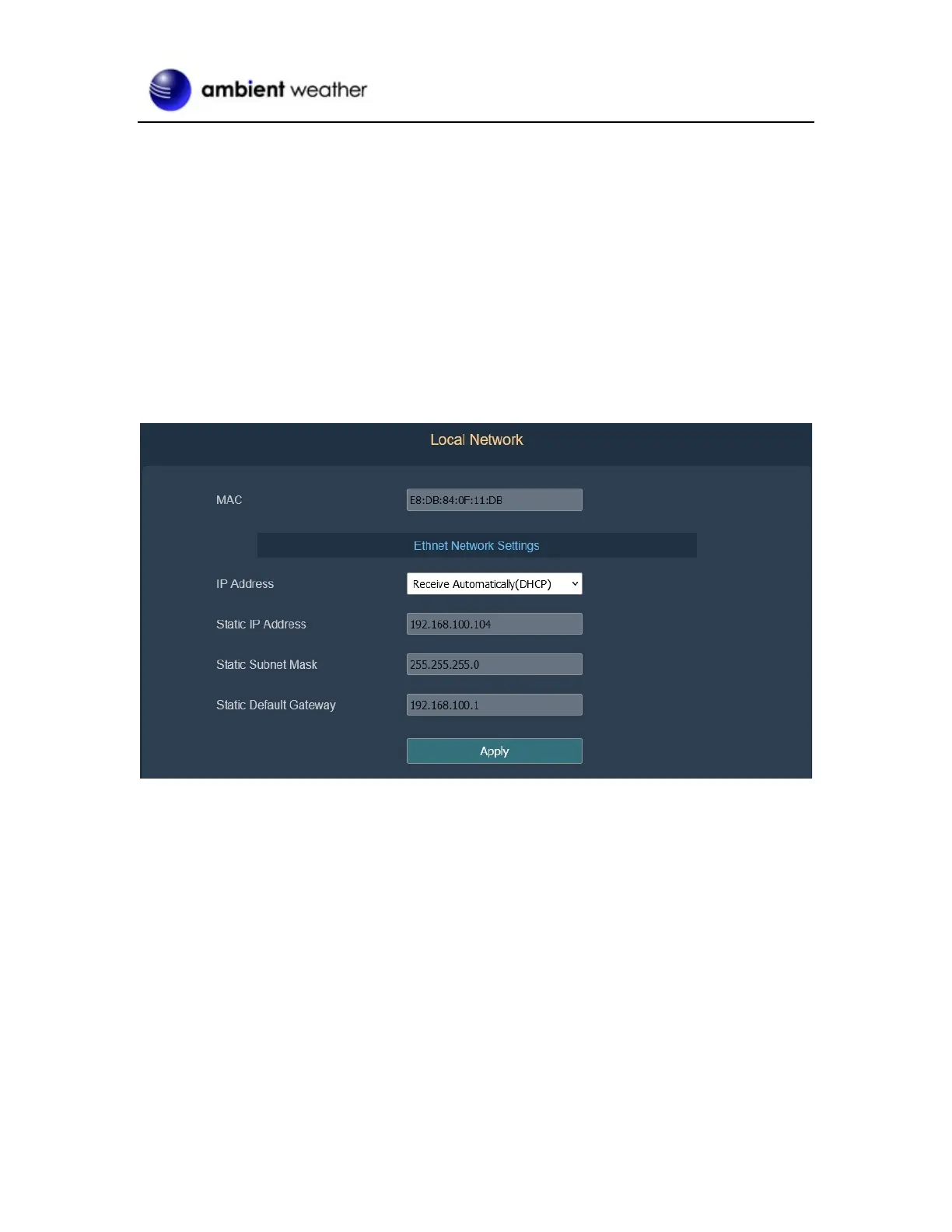

Figure 3
2.6 Weather Network Settings
Select the Weather Services tab to program the Weather Underground station settings and Ambient
Weather Network settings. Reference Figure 4:
