Ambient Lockit+ - Connector Pinouts

23Lockit+ Users manual |

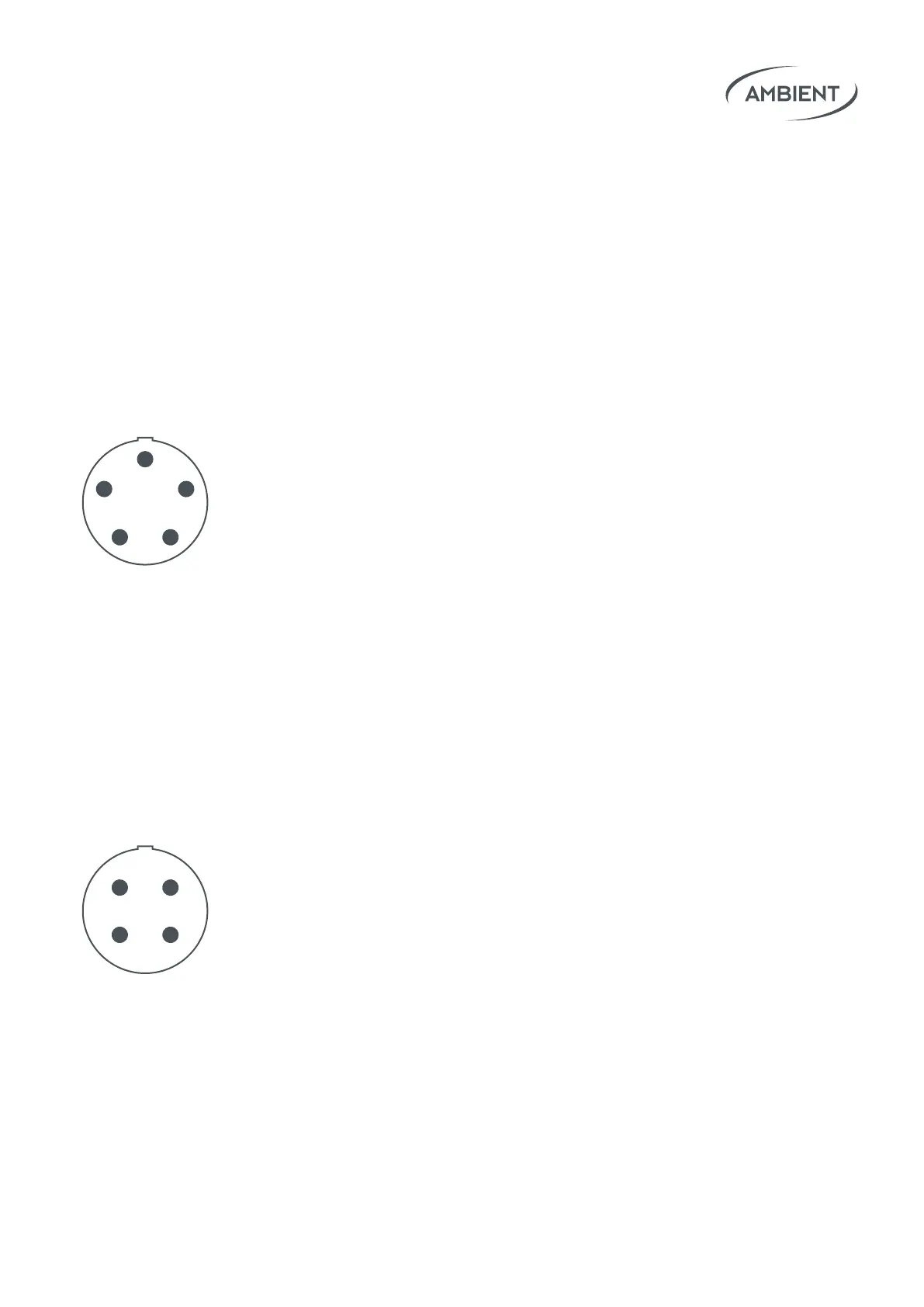

11.2 Connector Pinouts
Blue ACN Connector and Yellow Sync Connector
Accept LEMO FGG.0B.305 and compatible push-pull plugs
Connectors carry TC in and out as per industry standard,
plus sync on one and ACN metadata on the other.
They accept Lemo FGG.0B.305 compatible push-pull plugs.
Hirose
Primary DC port, connect your external power supply here.
Trilevel Sync Out Impedance 75Ω / Dual Load: 38Ω
LTC Out Impedance 1kΩ
LTC In Impedance 15kΩ
Antennas
SMA type F, leave supplied antenna attached, only substitute with
original replacements ANT-2.4-SMA-M(90)
ACN SYNC (yellow cable)
1 GND GND
2 TC in TC in
3 ACN TX PPF out
4 ACN RX Sync out
5 TC out TC out
Hirose HR10-7P-4P or compatible
1 GND
2 NC
3 NC
4 6-24V DC
1
5
4
2
3
2
1
3
4
