05Lockit+ Users manual |

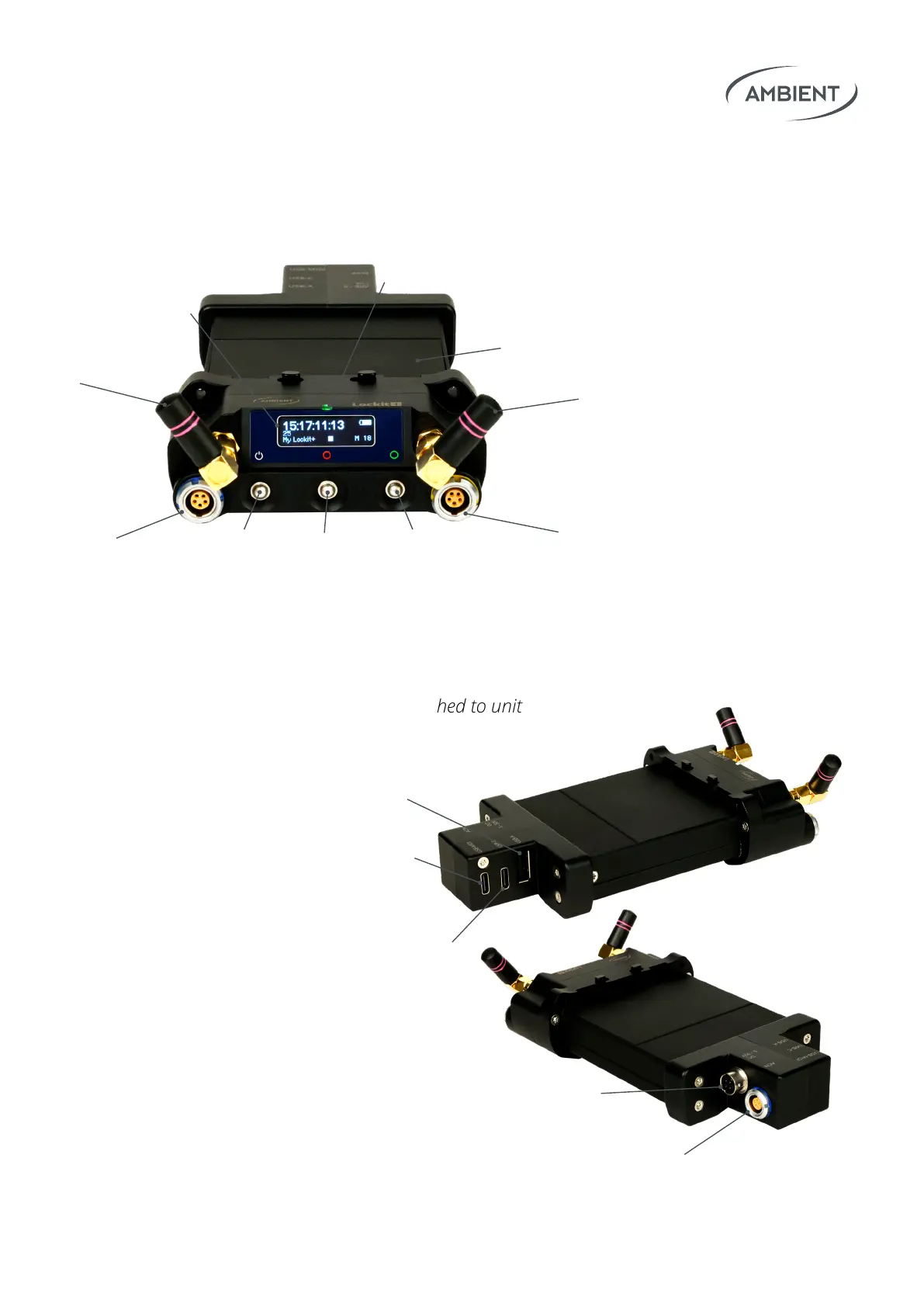

2. Unit Description
Front
1 Blue TC & ACN Connector (LEMO-compatible)
2 Yellow TC & Sync Connector (LEMO-compatible)
3 ACN Antenna, SMA RP 2.4GHz, keep attached to unit
4 WiFi Antenna, SMA RP 2.4GHz, keep attached to unit
5 RGB Status LED
6 OLED Display
7 Power Button
8 Red Button
9 Green Button
10 Battery Compartment (2x BX1)
Standard Extension
A USB-A connector
B USB-C connector (also for powering)
C USB-C connector for Midi TC (future feature)
D Blue TC & ACN Connector (LEMO-compatible)
E Hirose (for external powering)
A
C
E
B
D
1
7
8
9
2
4
5
6
10
3
