4. Powering
The Lockit+ can be powered by 6 to 24 Volts DC via a Hirose 4-pin connector,
pin 1 carrying GND pin 4 positive voltage. Supply ratings and typical values in
operation:
6V DC min. rating 3.5A, 12V DC min. rating 1.7A, 24V DC min. rating 1A
Alternatively, you can also power the Lockit+ via the USB-C socket.
Supply rating: 5V min. rating 3A
It is also possible to run the Lockit+ only with the two included BX1 batteries.
Please make sure to only change the batteries one after the other. This work-
ow keeps the timecode running while the unit is switched on and also main-
tains the real-time clock when switched o. In basic operation the batteries
will last for up to 4 hours.
1.
2.
If the Lockit+ is switched o and power is applied, the LED will slowly blink red
to indicate charging of the batteries. Fully charged, the LED will be lit perma-
nently green.
If the Lockit+ is in operation the charging status and the connected external
power supply are shown in the display.

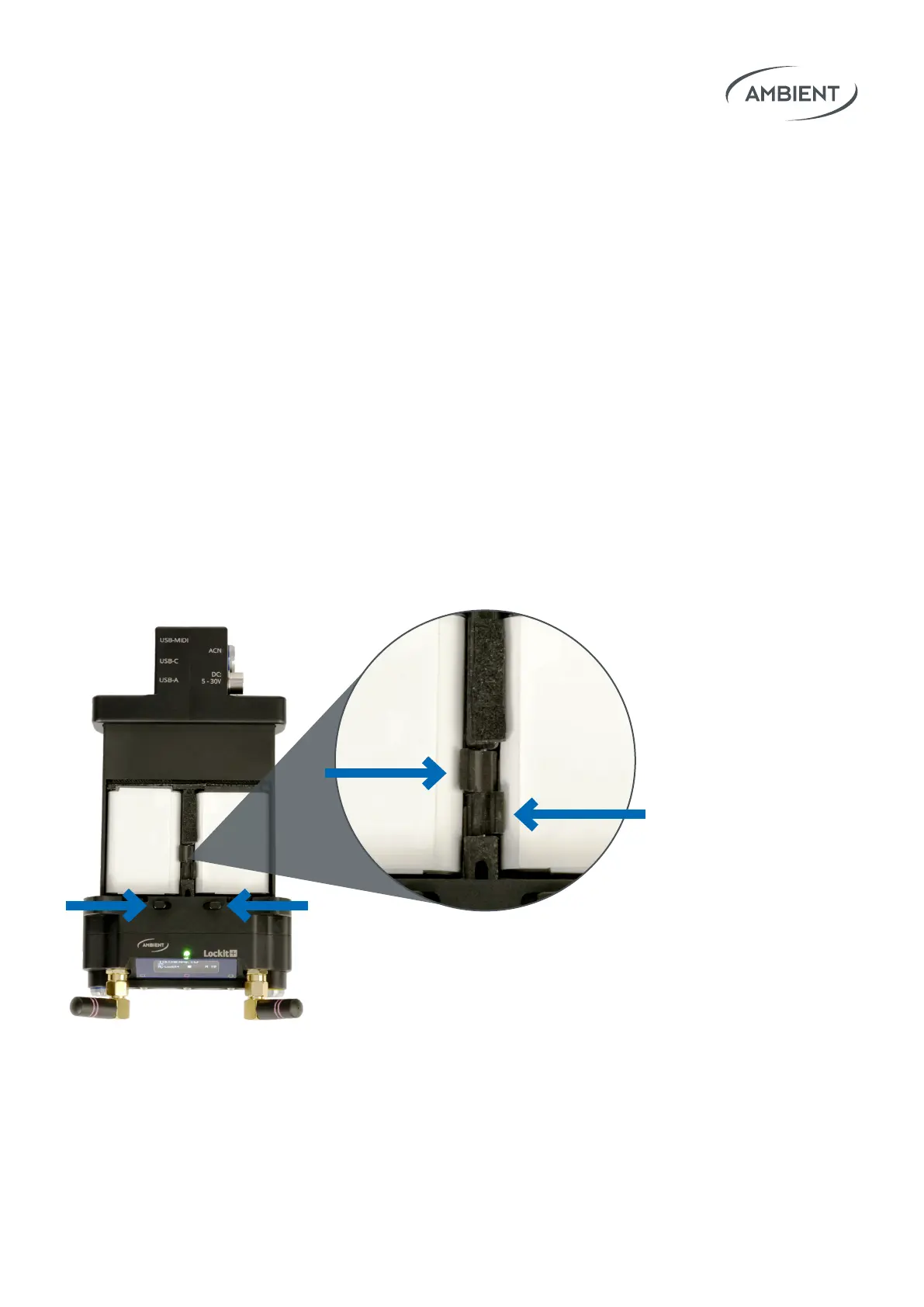

Note: To change batteries please push the
battery release levers.
Please assure to push the levers down
before inserting the batteries.
