12
Model AR/ARE Required angle Chain length Eye bolt position
13 ‘U’ tube 45˚-60˚ 8 links 2
30˚-35˚ 5 links 2
22 ‘U’ tube 45˚-60˚ 14 links 2
30˚-35˚ 8 links 2
35-50 ‘U’ tube 60˚ 24 links 3
45˚ 18 links 3
30˚-35˚ 15 links 3

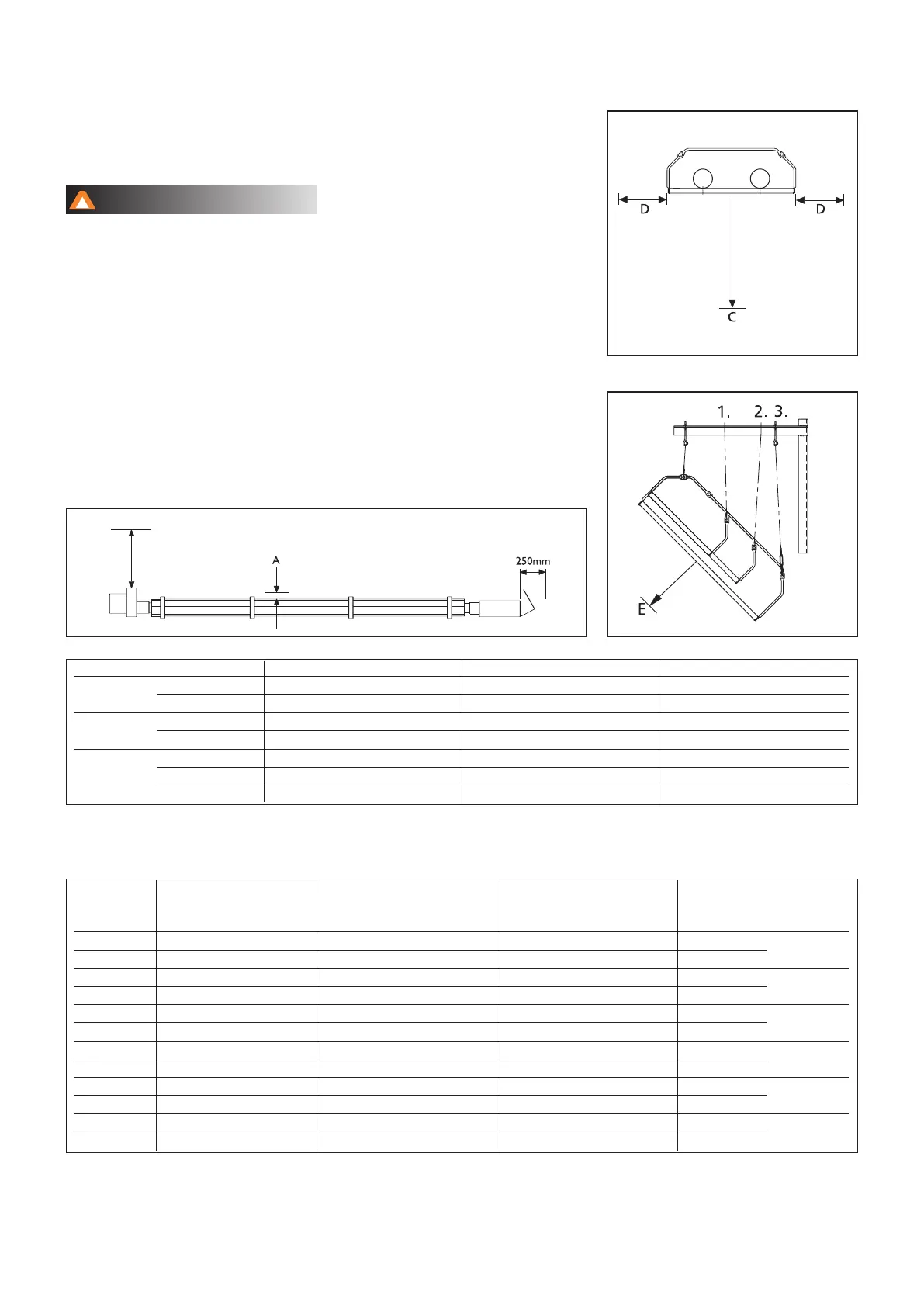

12 Installation – suggested
methods of heater suspension
Health and safety
Attachment to the heater bracket support
lugs should be made by either a ‘speed
link’, D shackle, nut bolt and large washers,
or in the case of drop rods, a closed formed
hook. Due allowance must be made for
thermal expansion of the heater. The
hanging attachments to overhead steelwork
etc. must be purpose made to good sound
engineering practice or of a proprietary type
fixing.
They must be adequately fixed and designed
to carry the whole weight of the heater and
to permit free movement due to linear
expansion.
In the event of suitable roof steelwork not
being available, additional steelwork should
be fitted to enable vertical hangers to be
used for suspending the heaters.
If there are any doubts as to the strength
or suitability of roof steelwork to which
heaters are to be suspended, please refer to
Consultant/Architect/owner of the building.
The recommended minimum and preferred
mounting heights for the Ambi-Rad heaters
are as below.
The recommended clearance to combustibles
are shown in the table opposite.
Model
Mounting position Minimum mounting height (m) Recommended mounting When mounting over these
height range (m) heights contact Ambi-Rad
design office (m)
AR/ARE13 Horizontal 3.0 3.3 to 4.2 over 4.2
AR/ARE13 Inclined/wall mounted 2.7 3.0 to 4.0
AR/ARE22 Horizontal 3.6 4.8 to 7.0 over 7.0
AR/ARE22 Inclined/wall mounted 3.0 4.2 to 4.9
AR/ARE35 Horizontal 4.3 4.9 to 11.0 over 11.0
AR/ARE35 Inclined/wall mounted
3.6
4.0 to 7.0
AR/ARE40 Horizontal 4.3 4.9 to 11.0 over 11.0
AR/ARE40 Inclined/wall mounted 3.6 4.0 to 7.0
AR/ARE45 Horizontal 5.0 5.9 to 12.0 over 12.0
AR/ARE45 Inclined/wall mounted 4.3 5.0 to 8.0
AR/ARE50 Horizontal 5.7 6.9 to 13.0 over 13.0
AR/ARE50 Inclined/wall mounted 5.0 6.0 to 9.0
Mounting heights
Note Component available pre-drilled Part No WMB-13-22-38
