9

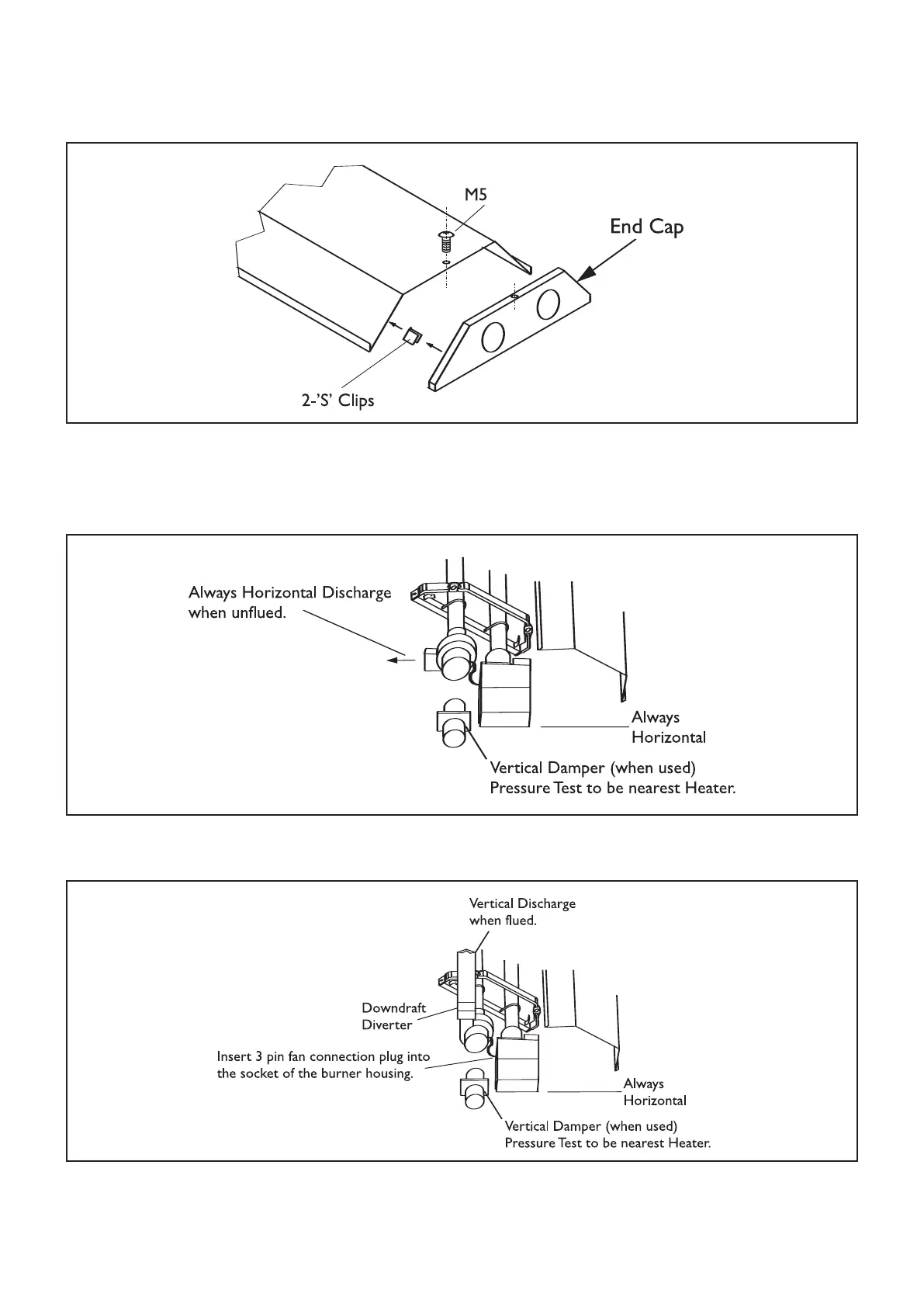

Figure 7 Fitting reflector end caps
Figure 8 Inclined mounting – unflued
Figure 9 Inclined mounting – flued
Fit reflector end caps using M5 bolts
, washers and ‘S’ clips. (Not applicable to ARE range)
Note Do not stand on reflectors when removing plastic film.
Fit relector end-caps before fitting burner
assembly and fan assembly.
