19
Using waterproof wire nuts, connect both left and right channels from
the amp to the subwoofer, making sure positive is connected to positive
and negative is connected to negative.
II. From the subwoofer location, extend the left speaker cable to the
left satellite speaker, and the right speaker cable to the right satellite
speaker, using a parallel connection from the subwoofer.
Strip ½'' of the jacket o the ends of all cables.
+ +
--
+ +
--
L300
L300
+ +
L300
L300 Subwoofer Amp:
Engage LPF
+ +
--
+ +
--
8Ω
8Ω
--
■381.00
■740.00
■615.00
坑纹方向
■740.00
■615.00
AS41SYS LSCAPE: Gift box
材質：
300G 白板+A9 高强+A9 高强+光胶
Scale: 1:1
Unit: mm
数量：
1SUB+4PCS SATS
AS4100SYS
844.674.4461
sales@originacoustics.com
www.originacoustics.com
AS4SAT
AS4SAT
AS4SAT
AS4SAT
AS41SUB10
DESIGNED IN OREGON, USA - MADE IN CHINA
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
PREMIUM OUTDOOR LOUDSPEAKER SYSTEM
ADD UP TO EIGHT SATELLITE SPEAKERS
WITH STANDARD 2-CHANNEL AMPLIFICATION (SOLD SEPARATELY)
WHAT’S INCLUDED:
4 x AS4SAT 4.5” SATELLITE LOUDSPEAKERS
1 x AS41SUB10 10” DUAL VOICECOIL SUBW0OFER
CREATE RICH HI-FI SOUND IN ANY OUTDOOR ENVIRONMENT
1,500 SQ FT OF HIGH QUALITY AUDIO COVERAGE |EXPANDABILITY UP TO 2,550 SQ FT*
* WITH 8 x AS4SATS | AS4SAT EXPANSION PAIR PACKS SOLD SEPARATELY
SIMPLE, FAST & FLEXIBLE INSTALLATION | EXPANDABILITY
WORKS WITH 2 CHANNELS ON AMBISONIC L300 AMPLIFIER
SOUND CAN BE DIRECTED INWARDS / ELIMINATING DISTURBANCES TO SURROUNDING NEIGHBORS
DUAL-USE PATIO OR BURIAL SUBWOOFER | CO-AXIAL TWO-WAY LOUDSPEAKERS
ALL MOUNTING HARDWARE INCLUDED | BURIAL SPEAKER WIRE SOLD SEPARATELY
EARTH COLOR CAMOUFLAGE ENCLOSURES FOR A HIDDEN SOUNDSCAPE WITHIN PLANTS & FOLIAGE
IPX6 RATED | ENGINEERED TO WITHSTAND ANY CONDITIONS FROM 4
º TO 176ºF (-15.5º TO 80ºC)
BACKED BY 5 YEAR FACTORY WARRANTY
FOUR AS4SAT 4.5” SATELLITE LOUDSPEAKERS
ONE AS41SUB1 10” DUAL VOICE COIL SUBW0OFER
AS41SUB10 FLEXIBLE INSTALLATION
BURIAL
OR
HARDSCAPE
1 x AS41SUB10 Subwoofer
(Included)
4 x AS4SAT Speakers
(Included)
Receiver
(Not Included)
4 x AS4SAT Speakers
(Sold Separately)
Description
Quantity
Dimensions
Woofer Cone
Tweeter
Enclosure
System Impedance
Frequency Response (System)
Crossover Frequency (System)
Power Handling
Output SPL
Dispersion
Listening Area
Wire Recommendations
4 1/2” Plantable Speakers w/ 11 3/4” In-Ground Mounting Stakes
4
5 3/4” W x 5 9/16” H x 7 1/16” W (146 x 142 x 180mm) |18“ H w/ Stakes (457mm)
4
1/2” Injection Molded Polypropylene
0.75” PEI Dome
Sealed Color-Molded Composite
10
” Dual Voice Coil Subwoofer with Sealed Enclosure for Low Bass Extension
1
12
7/8 ” H x 15 3/4 ” W (326 x 400mm)
10
” Dual Voice Coil Injection Molded Polypropylene
-
Sealed Poly Composite PVC Enclosure
4 - 8 Ω per Channel, Nominal
35Hz - 20kHz
(+/-3dB)
100Hz
120W (Program) / 240W (Peak)
87dB
70° up to 20’ Omnidirectional
Up to 1,500 Sq Ft (Up to 2,550 Sq Ft with 8 AS4SATs)
14 Gauge -- Up to 250 Feet (80 Meters) 2 Conductor,
Stranded, Direct Burial
12 Gauge -- Up to 400 Feet (122 Meters) 2 Conductor,
Stranded, Direct Burial
AS4SAT SATELLITE LOUDSPEAKER AS41SUB10 10” DUAL VOICE COIL SUBWOOFER

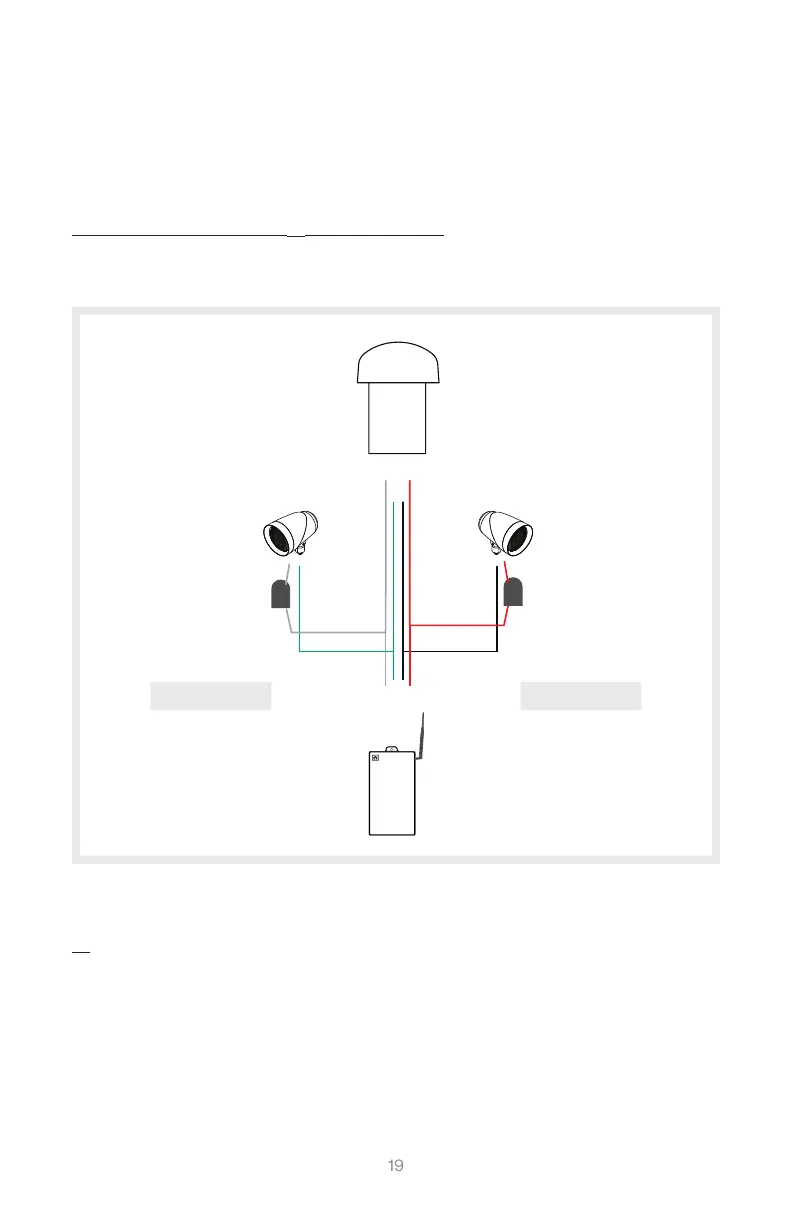

DIAGRAM  • LS KIT 3 | Wiring Diagram
RIGHT CHANNELLEFT CHANNEL
