AMC 2N100-5 User Manual

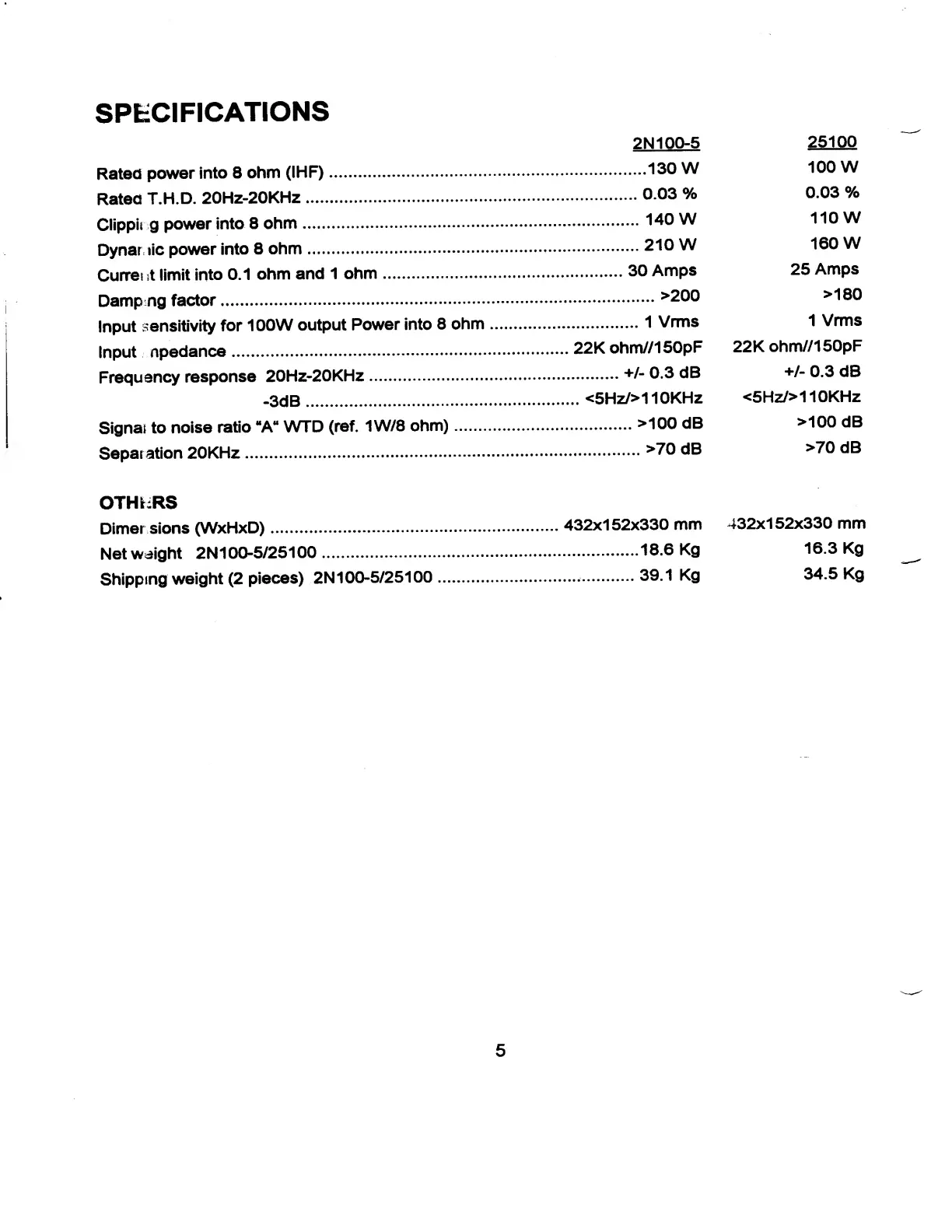

SPECIFICATIONS
2N100-5
Rated power into 8 ohm (IHF).
Rated T.H.D. 20Hz-20KHz.
Clippin g power into 8 ohm.
Dynamic power into 8 ohm.
Current limit into 0.1 ohm and 1 ohm
Damp ng factor.
Input sensitivity for 100W output Power into 8 ohm.1 Vrms
Input npedance.22K ohm//150pF
Frequency response 20Hz-20KHz.. + f- 0.3 dB
-3dB.<5Hz/>110KHz
Signal to noise ratio “A“ WTD (ref. 1W/8 ohm).>100 dB
Separation 20KHz.>70 dB
... 0.03 %
... 140 W
... 210 W
30 Amps
. > 2 00
25100
100 W
0.03%
110W
160 W
25 Amps
>180
1 Vrms
22K ohm//150pF
+/- 0.3 dB
<5Hz/>110KHz
>100 dB
>70 dB
OTHERS
Dimensions (WxHxD).432x152x330 mm
Net weight 2N100-5/25100.18.6 Kg
Shipping weight (2 pieces) 2N100-5/25100..39.1 Kg
432x152x330 mm
16.3 Kg
34.5 Kg
5
