Repair of the T60A Posi-Pump

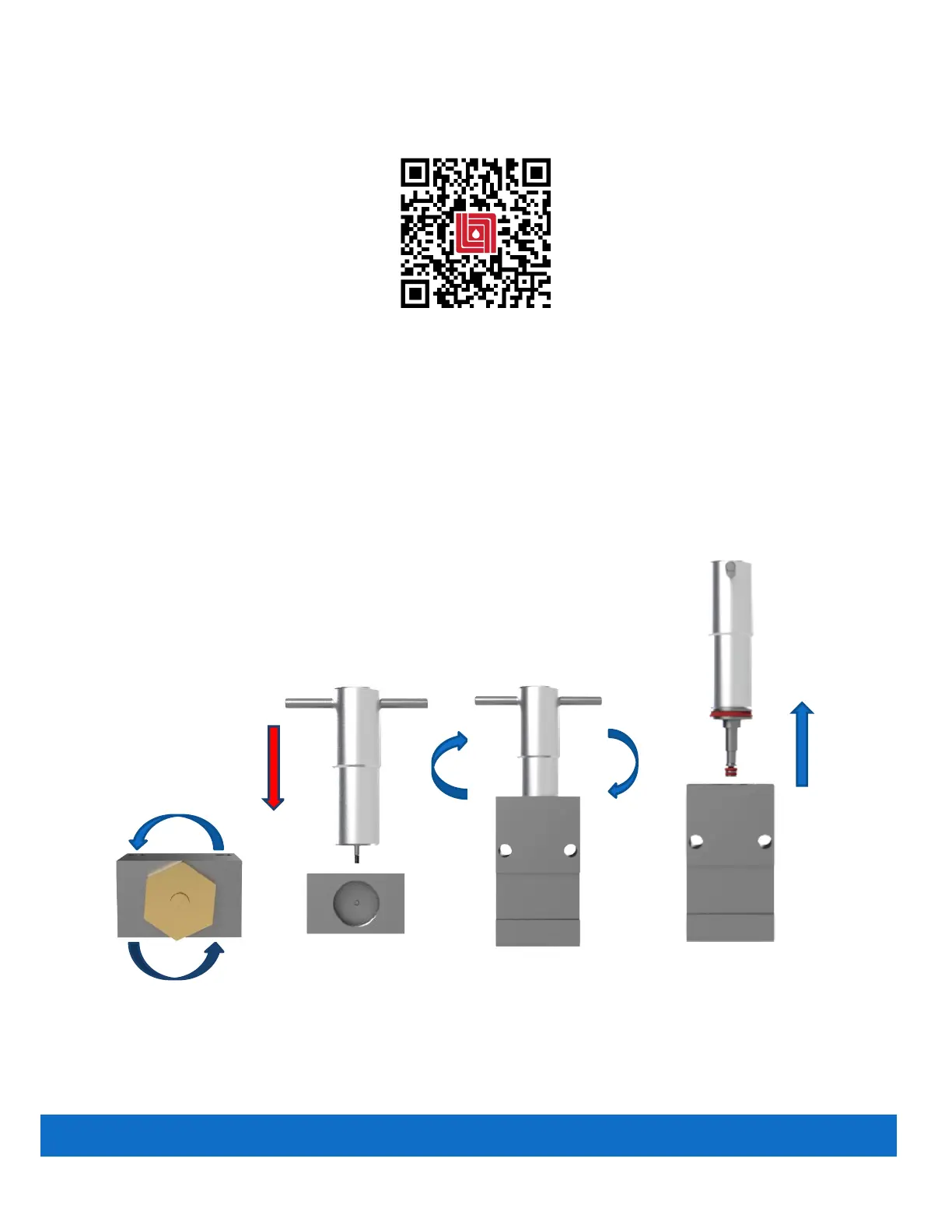

1. Remove brass hex cap from the body using a 7/8” wrench.
2. Unscrew adjustment stem from brass hex cap using standard screwdriver.
3. Thread RT-T60A Repair Tool into threaded hole on top of piston subassembly. Slowly
pull piston assemble straight out of piston sleeve.
4. Remove Helical Spring from Piston Sleeve.
5. Unscrew Piston Sleeve from pump body using the ears on the RT-T60A Repair Tool
and remove.
6. Clean and observe all components, both internally and externally.
7. Using the liquid to be pumped as a lubricant, replace and install all associated
components in reverse order.
