P A G E | 5
4 Recommended Settings
Item ID
Description
Recommended Setting
A
System Air Pressure
60 PSI
B
Injection Pulse Rate Solenoid
According to machine cycle rate and volume
C
Dispersing Air Solenoid
According to machine cycle rate
D
Dispersing Air Pressure
20 PSI as a starting point. Adjustment of the flow
control at the transition block is highly
dependent on spray tip. Adjust as needed, DO
NOT mist or fog!
E
Injection Volume
Start at 1.5 turns open from off (fixed injection
volume is also available)
Settings with SMART Metering
All 6000E systems include a dual solenoid control package that eliminates the
variability of traditional pneumatic controls. Fixed position hex caps and non-
adjustable regulators remove variability associated with spray volume and pattern.
• Fixed hex caps use set screws and epoxy to lock the distance of the
adjustment screw inside the hex cap. This allows for a consistent, minimal fluid
output to remove variability in spray volume.
• Nonadjustable regulators remove the variability in adjustable regulators,
allowing for a consistent spray pattern at the spray point.
Using a combination of SMART Metering components, all variability of a 6000E
system can be remove, allowing the spray volume to be solely based on injection
rate of the T60A pump.

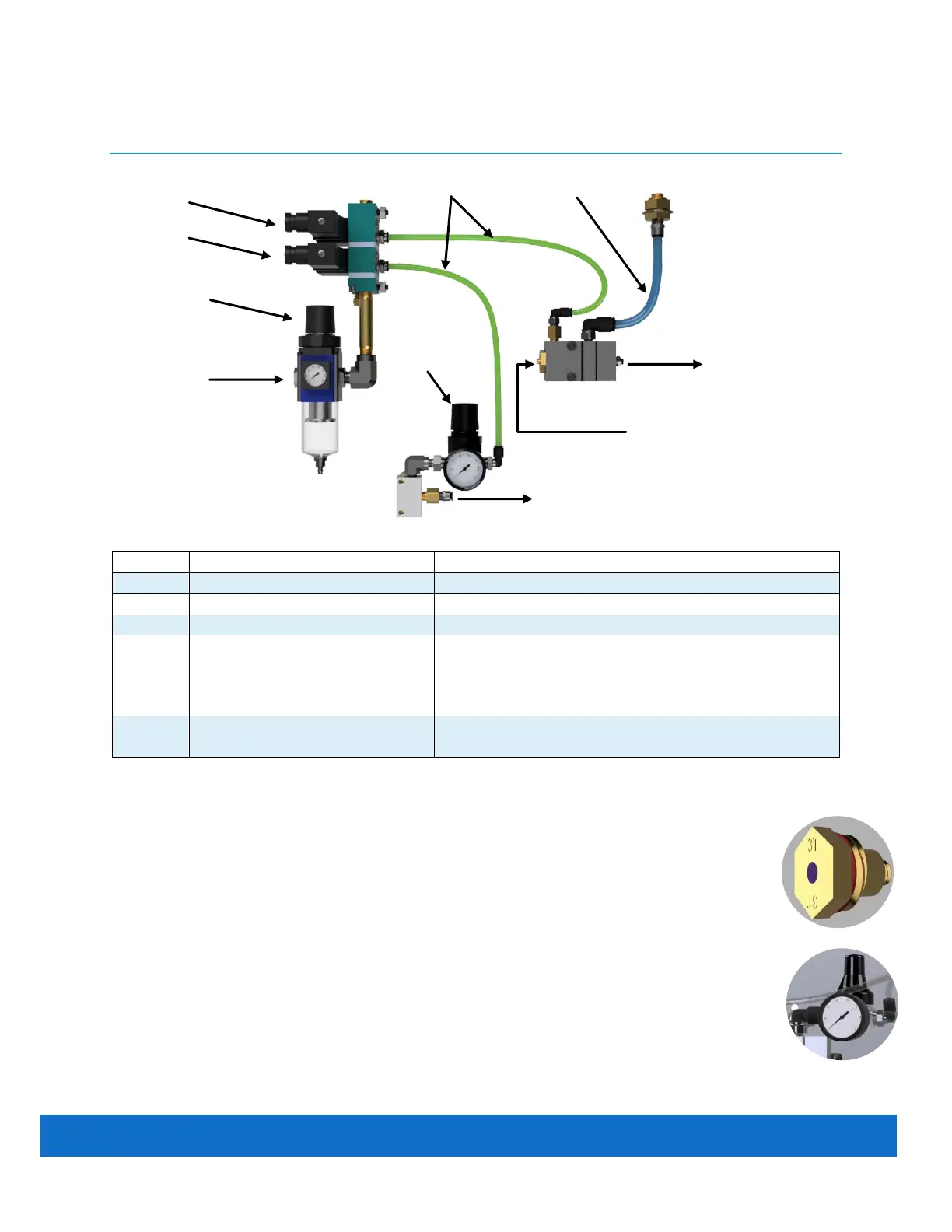

B
D
E
C
System
Air In
Air Liquid
Liquid Out
To Spray Point
Air Out
To Spray Point
A
