AMCOL 6000E - Schematics and Drawings; General System Schematic

6000E ELECTRONICALLY CONTROLLED PRECISION LUBRICATION SYSTEM
Operator’s Manual
P A G E | 15
11 Schematics and Drawings

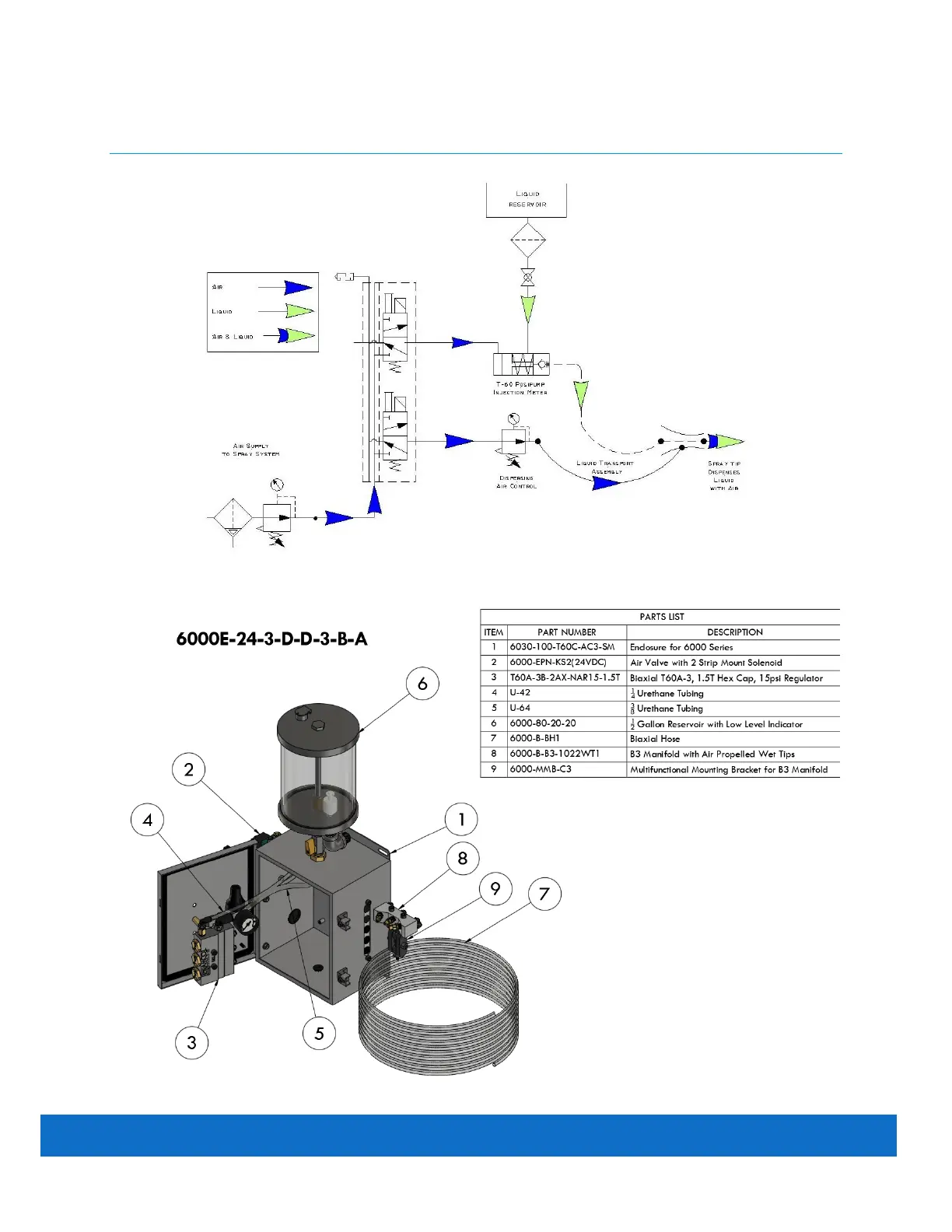

General schematic for dual air source
Sample System with Components (6000E-24-3-D-D-3-B-A)
