AMD Radeon HD 6750 - Figure 3-1 Connecting the Power Cables

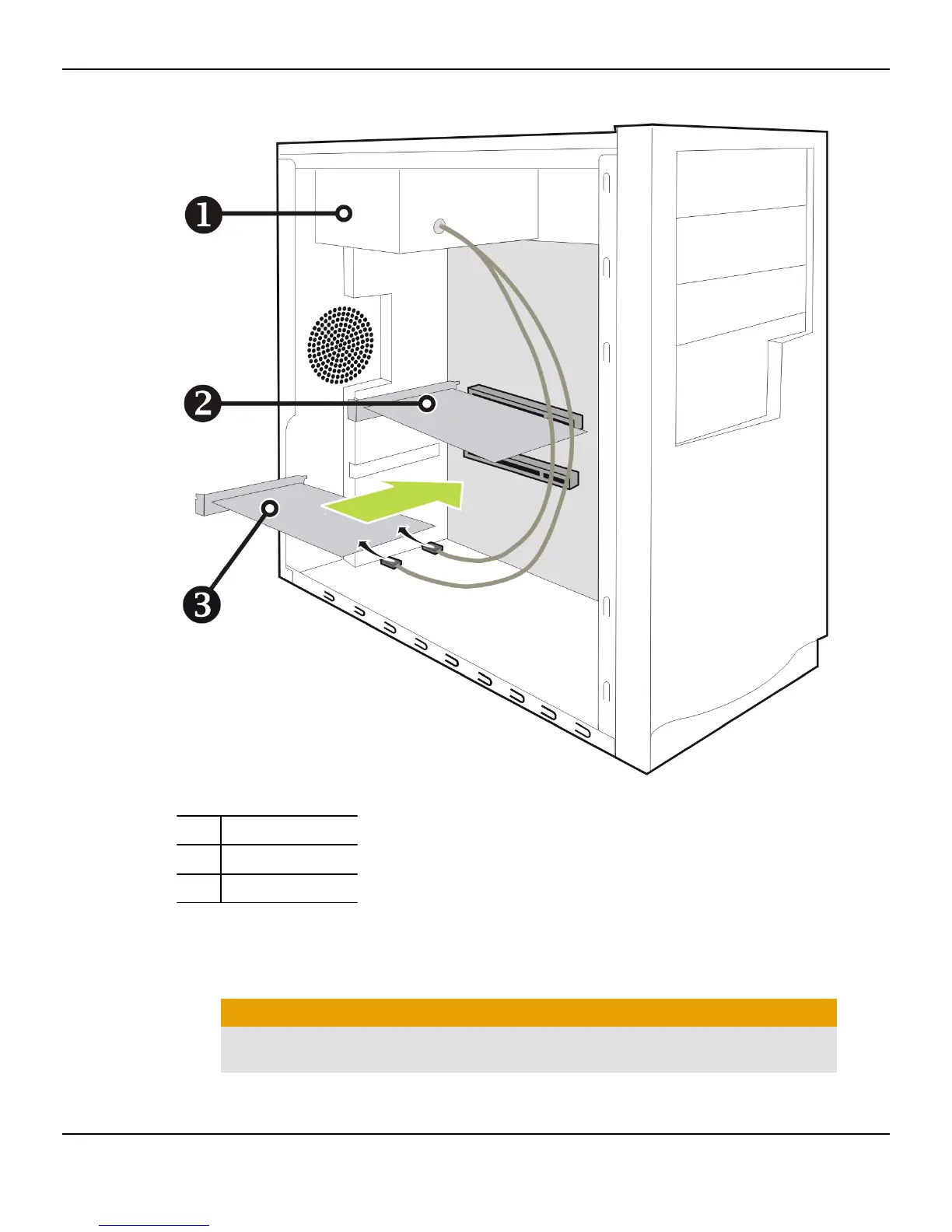

Figure 3–1 Connecting the Power Cables
1 Power supply
2 Existing card
3 New card
8. Remove protection tags from the ends of the AMD CrossFireX interconnect and
connect the cards.
Caution:
Always handle the AMD CrossFireX bridge interconnect by the connector
only. Do not push or pull on the flexible cable.
AMD CrossFireX™ Technology 13
