Caution:
Static electricity can seriously damage computer components. Discharge
your body's static electricity by touching the power supply or the metal
surface of the computer chassis before you touch any components inside the
computer's case to avoid damaging them.
4. Unscrew or unfasten and remove any existing graphics card from the computer,
if necessary.
5. Locate the appropriate bus slot and, if necessary, remove the corresponding
metal backplate cover(s). Make sure all internal cables are clear of the slot.
Note: If you cannot find a bus slot to match the card, you need a graphics card
with the correct bus to match the motherboard.
6. Align the graphics card with the slot and press it in firmly until the card is fully
seated.
7. If your card requires supplementary power and must be connected directly to
the power supply, locate the appropriate power connector cable(s) from the
power supply and connect it (or them) to the graphics card's supplementary
power connector(s).
Note: If applicable, before installing a card that requires a supplementary
power connection, make sure your existing power supply has such a
connection available.
Tip: The location of power connections may vary between models. They can
be located on either the side or back of the card.

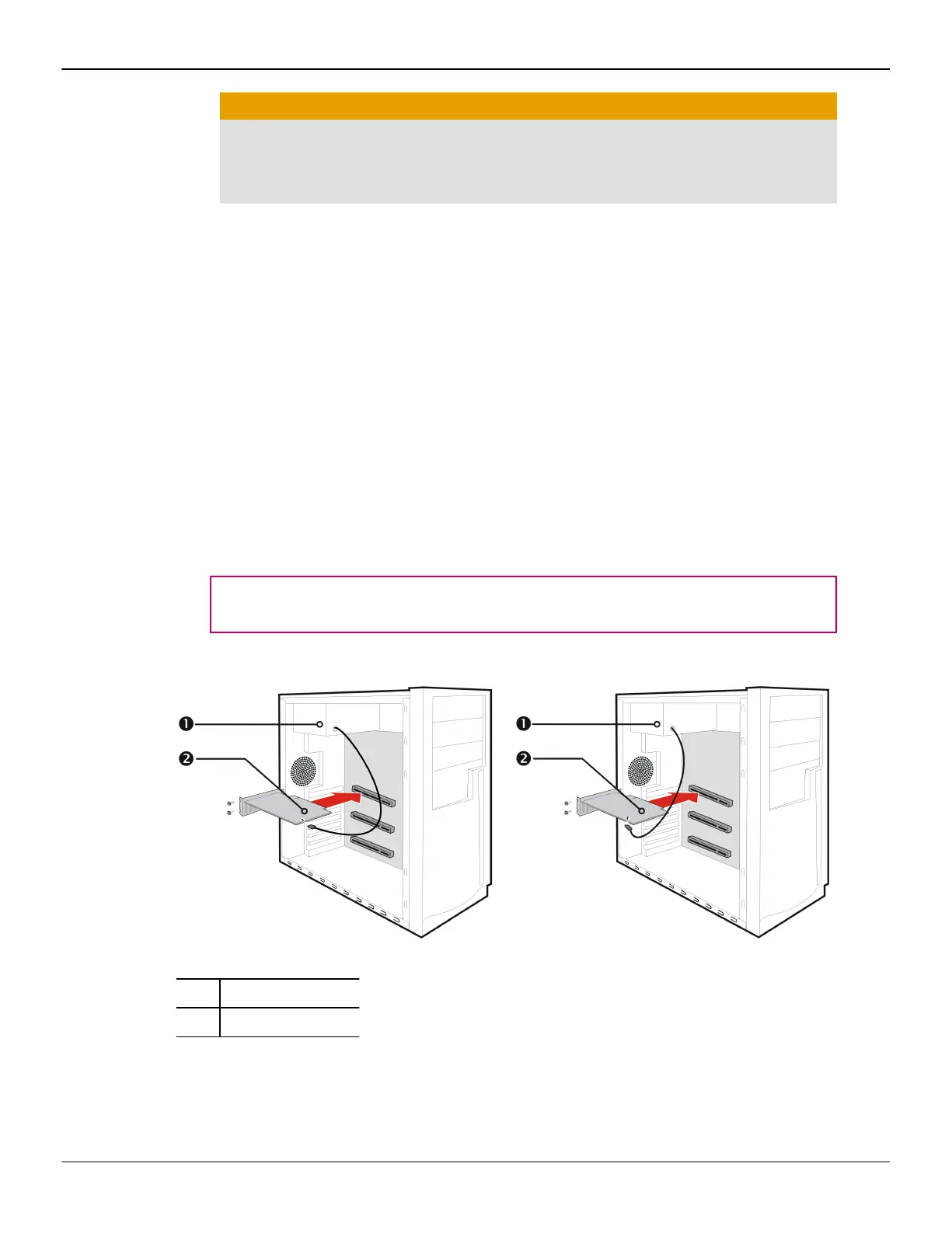

Figure 2–1 Possible Power Connection Locations on the Graphics Card
1 Power supply
2 Graphics card
8. Fasten the graphics card securely to the back panel.
9. Make sure no internal cables are interfering with components inside the
computer (for example, a cooling fan), and then replace the computer cover.
4 Hardware and Software Installation
AMD Radeon™ R7 360 Graphics Card © 2016 Advanced Micro Devices, Inc.

AMD Radeon R7 360 Specifications

General

Stream Processors	768
Core Clock	1050 MHz
Memory Size	2 GB
Memory Type	GDDR5
Memory Bus	128-bit
TDP	100 W
DirectX Support	12
Process Size	28 nm
Transistors	2.08 billion
Boost Clock	1050 MHz
Memory Clock	6500 MHz
Memory Bandwidth	104 GB/s
Compute Units	12
Texture Units	48
Render Output Units	16
OpenGL	4.5
OpenCL	2.0
Shader Model	5.0
PCI Express Version	3.0
Outputs	DisplayPort, HDMI, DVI
GPU Architecture	Graphics Core Next (GCN) 1.1
