4-3-3. LACP Status
Function name:
LACP Status
Function description:
Display LACP status. Fig. 4-30 illustrates that LACP Status window can show
LACP information and status for all ports in the same time.
Parameter description:
LACP Aggregation Overview:
Show the group/port status. Default will set to red sign for port link down,
user can check legend table below for all reference.
LACP Port Status:
Group/Port:
Show the port number.
Normal : as Legend.

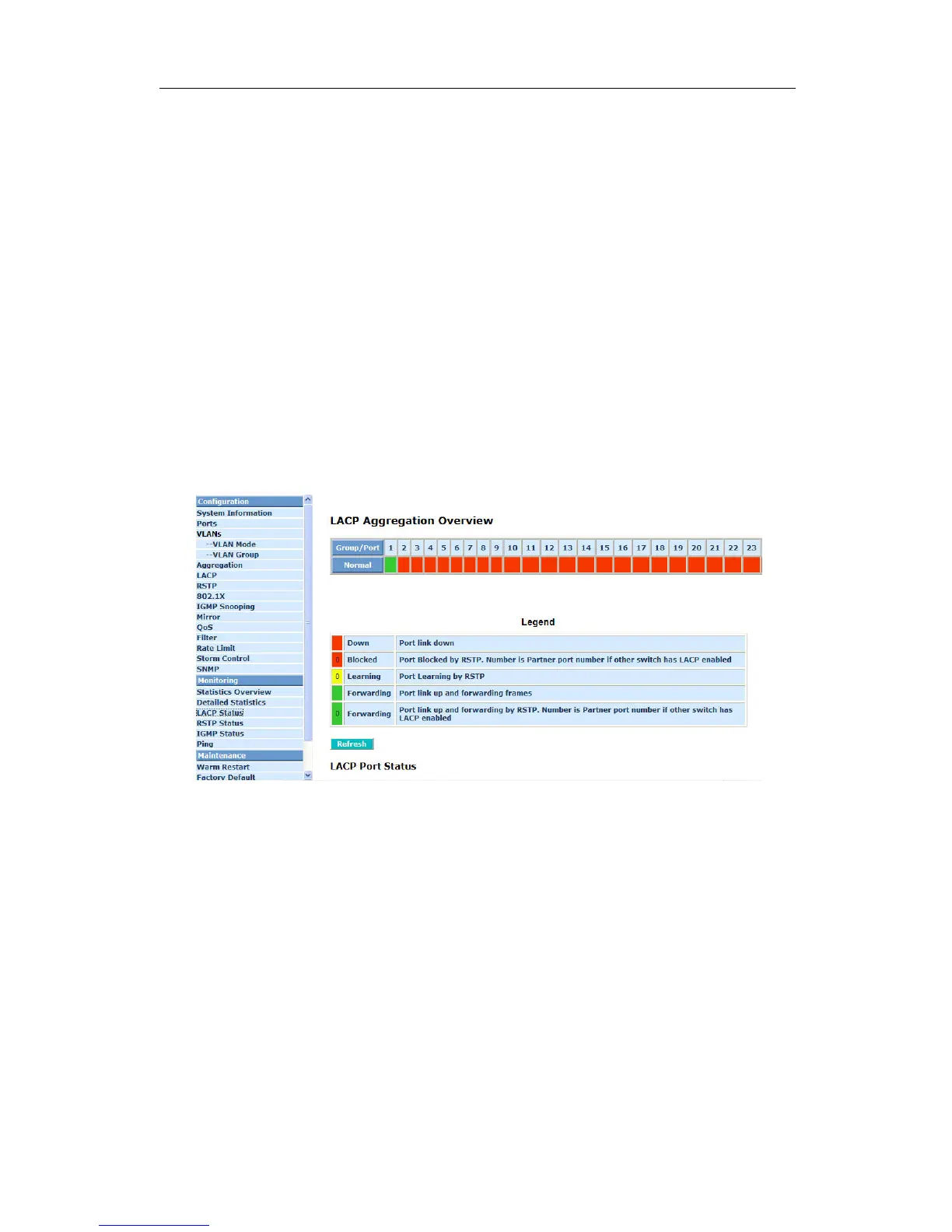

Fig. 4-30 LACP Status
