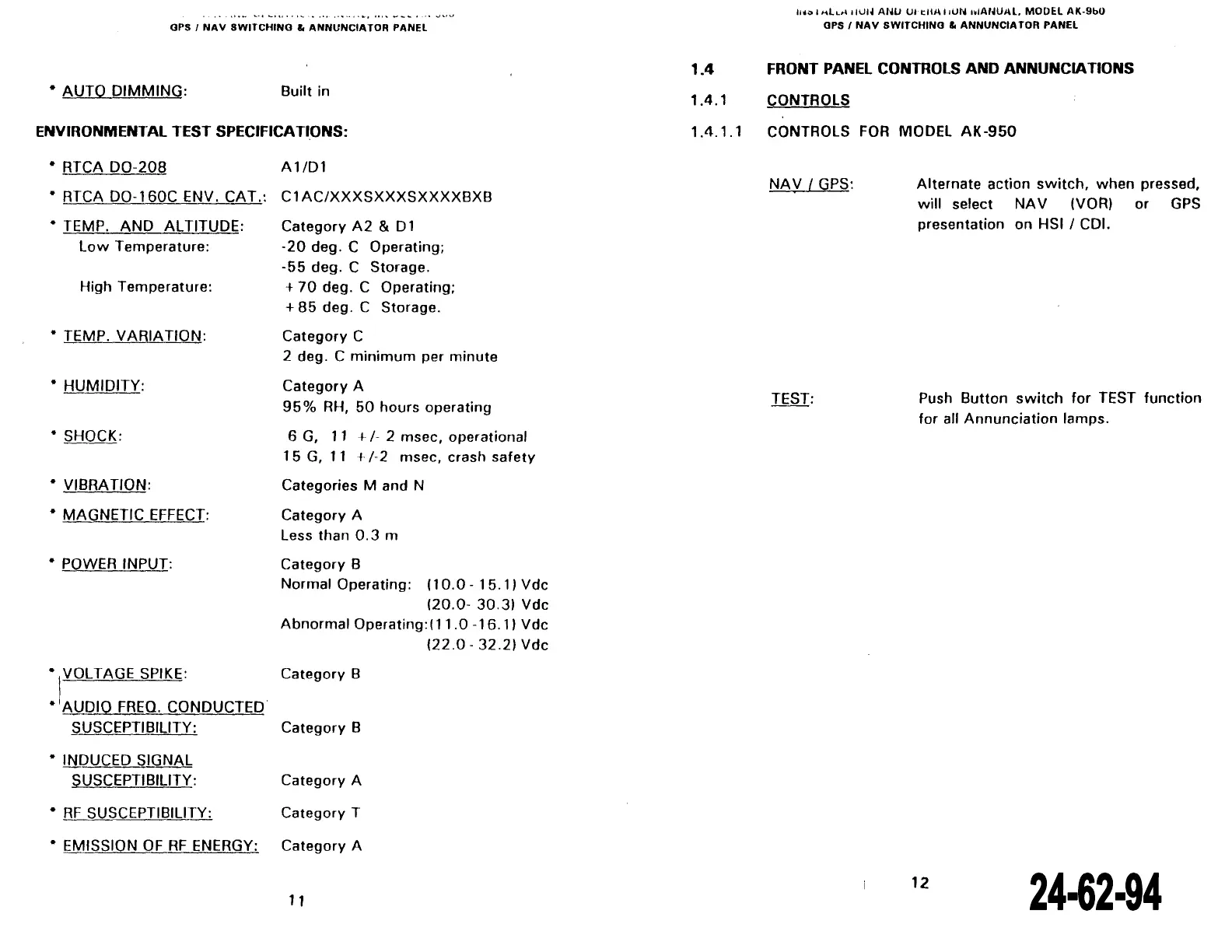

OPS 1 NAV SWITCHINO & ANNUNCIATOR PANEL
• AUTO DIMMING: Built in
ENVIRONMENTAL TEST SPECIFICATI_ONS:
• RTCA D0-208 A 1 /Dl
• RTCA D0-160C ENV. CAT.: ClAC/XXXSXXXSXXXXBXB
• TEMP. AND ALTITUDE:
Low Temperature:
High Temperature:
• TEMP. VARIATION:
• HUMIDITY:
• SHOCK:
• VIBRATION:
• MAGNETIC
EFFECT:
• POWER INPUT:
Category A2 & D 1
-20 deg. C Operating;
-55 deg. C Storage.
+ 70 deg. C Operating;
+ 85 deg. C Storage.
Category C
2 deg. C
minimum per minute
Category A
95% RH, 50 hours operating
6 G, 11 + /- 2 msec, operational
1 5
G, 11 + 1-2 msec, crash safety
Categories M and N
Category A
Less than
0.3 m
Category
8
Normal Operating: 110.0- 15.1) Vdc
120.0- 30.31 Vdc
Abnormal Operating: 111 .0 -16. 1) Vdc
122.0- 32.2) Vdc
• VOLTAGE SPIKE:
Category 8
.!AUDIO FREO. CONDUCTED
SUSCEPTIBILITY:
Category 8
* INDUCED SIGNAL
SUSCEPTIBILITY:
Category A
• RF SUSCEPTIBILITY: Category T
• EMISSION OF RF ENERGY: Category A
11
1.4
1.4.1
llO<> 1 -.LL,.. oiUI~ ANU Uio:IIA loUN hiAIWAl, MO DEl AK-9b0
OPS 1 NAV SWITCHINO & ANNUNCIATOR PANEL
FRONT PANEL CONTROLS AND ANNUNCIA TIONS
CONTROLS
1.4.1. 1 CONTROLS FOR MODEL AK-950
NAV 1 GPS:
TEST:
Alternate action switch, when pressed,
will select NA V IVO~) or GPS
presentation on HSI 1 CDI.
Push
Button switch for TEST function
for ali Annunciation lamps.
12
