GPS 1 NAV SWITCHING & ANNUNCIATOR PANEL

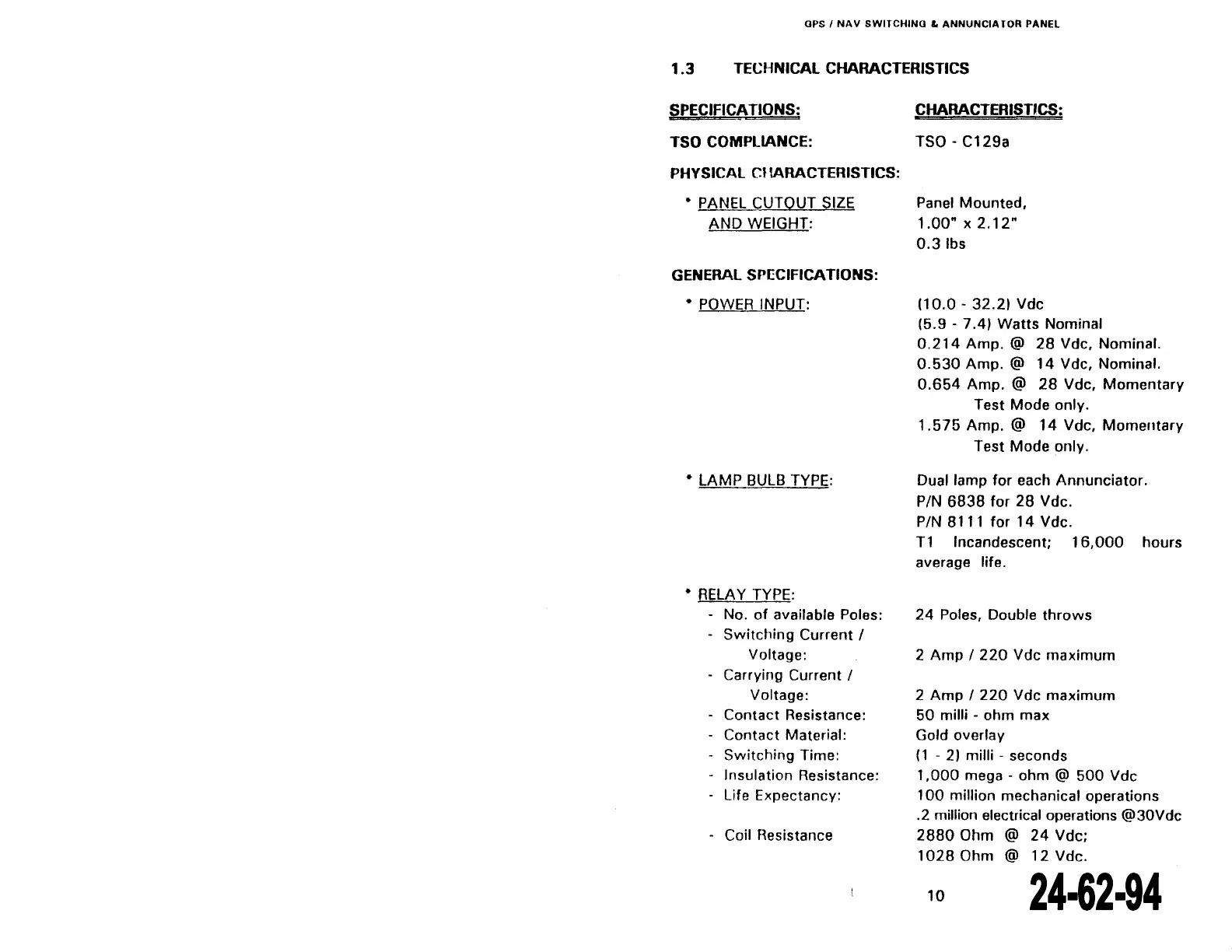

1.3 TECHNICAL CHARACTERISTICS
SPECIFICATIONS:
TSO COMPLIANCE:
PHYSICAL
CJ IARACTERISTICS:
• PANEL CUTOUT SIZE
AND WEIGHT:
GENERAl SP[CIFICA Tl ONS:
• POWER INPUT:
•
LAMP BULB TYPE:
•
RELA Y TYPE:
-
No. of available Poles:
-
Switching Current 1
Voltage:
-
Carrying Current 1
Voltage:
-
Contact Resistance:
- Contact Material:
-
Switching Time:
- lnsulation Resistance:
- Life Expectancy:
- Coil Resistance
CHARACTERISTJCS:
TSO- C129a
Panel Mounted,
1.00" x 2.12"
0.3 lbs
(1 0.0- 32.21 Vdc
(5.9- 7.41 Watts Nominal
O. 214 Am p. @ 28 V de, Nominal.
0.530 Amp. @ 14 Vdc, Nominal.
0.654 Amp. @ 28 Vdc, Momentary
Test Mode only.
1.575 Amp.@ 14 Vdc, Momentary
Test Mode only.
Duallamp for each Annunciator.
P/N 6838 for 28 Vdc.
P/N
8111 for 14 Vdc.
Tl Incandescent; 16,000 hours
average
lite.
24 Poles, Double throws
2 Amp 1 220 Vdc maximum
2 Amp 1 220 Vdc maximum
50 milli - ohm max
Gold overlay
(1 - 21 milli - seconds
1
,000 mega - ohm @ 500 Vdc
1 00 million mechanical operations
.2
million electrical operations @30Vdc
2880 Ohm @ 24 Vdc;
1028 Ohm @ 12 Vdc.
10
