Ameri-King AK-950 Series - 2.2 Mechanical Installation

INSTALLATION AND OPERATION MAN\JAL, MODEL AK-960
OPS 1 NAV SWITCHINO & ANN\JNCIATOR PANEl
SECTION Il
INSTALLATION AND TEST
2.1 UNPACKING AND INSPECTING EOUIPMENT
2.2
2.2.1
2.2.2
Extreme care when unpacking the equipment. Visual inspection
of the equipment for evidence of damage incurred during
shipment. Any claim should be promtly filed with the
transportation company. Save the shipping container to
subtantiate the claim. Retain the container and packaging
material for possible future use.
MECHANICAL INSTALLATION
The AK-950 is designed with the installer in mind. Ali
accessories which are required for completing system
installation are provided, including Pre-fabricated Wiring Cable
Assembly.
EQUIPMENT LOCATION
The AK-950 must be mounted as close to the pilot's field of
view as possible. The preferable location is near the HSI 1 CDI
that will be displaying the FPS information. The unit depth,
with connecter atttached, must also be taken into
consideration.
Avoid mounting close to heater vents or other high heat
sources.
The
indicator is secured in place behind the panel since it is
designed for rear mount only. Make a panel cutout as shawn
in Figure 2-1. Secure the indicator in place with four 4-40 x
3/8 to 1.0" flat head phillips screws.
COOLING
No direct cooling is required. As with any electronic
equipment, overall reliability may be increased if the AK-950 is
not located near any high heat source or crowded next to other
equipment. Means of providing a gentle air flow will be a plus.
22
INSTAllATION AND OPERATION MANUAl, MODEl AK-960
OPS 1 NAY SWITCHINO &. ANNUNCIATOR PANEl
R.130
( 4 PLS)
-r··--~-
r---0
+ 0
1.000 0.750
1 1
, _j~+
_j- -;,-2~-=r-
0.175
~ . - 2120 ---~
2.470
~.125
thru hole for
4-40 screw
(4 PLS)

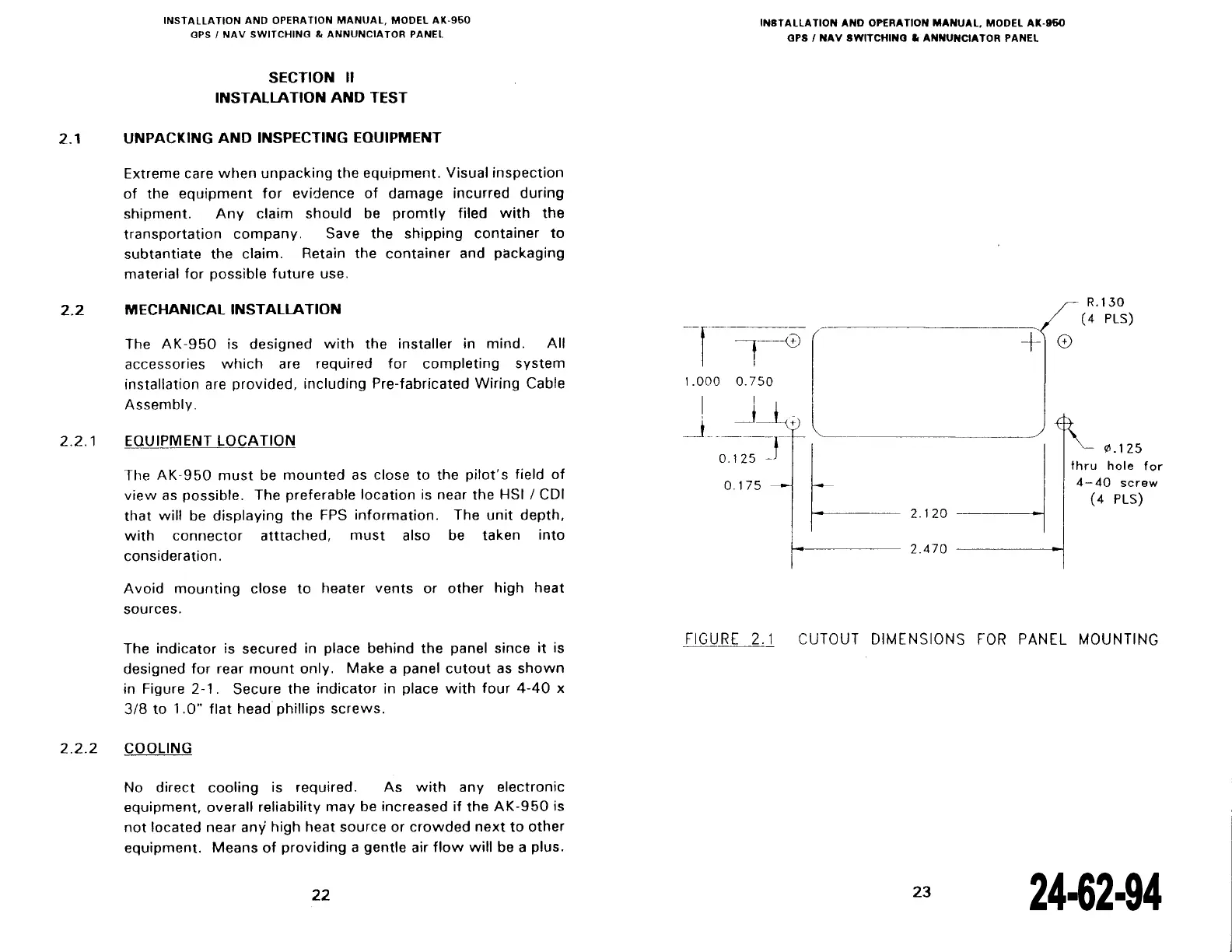

FIGU~l CUTOUT DIMENSIONS FOR PANEL MOUNTING
23
