SENSORRAIL IIIE 8200-0593-03, REV. A
SERVICE GUIDE
25 of 34

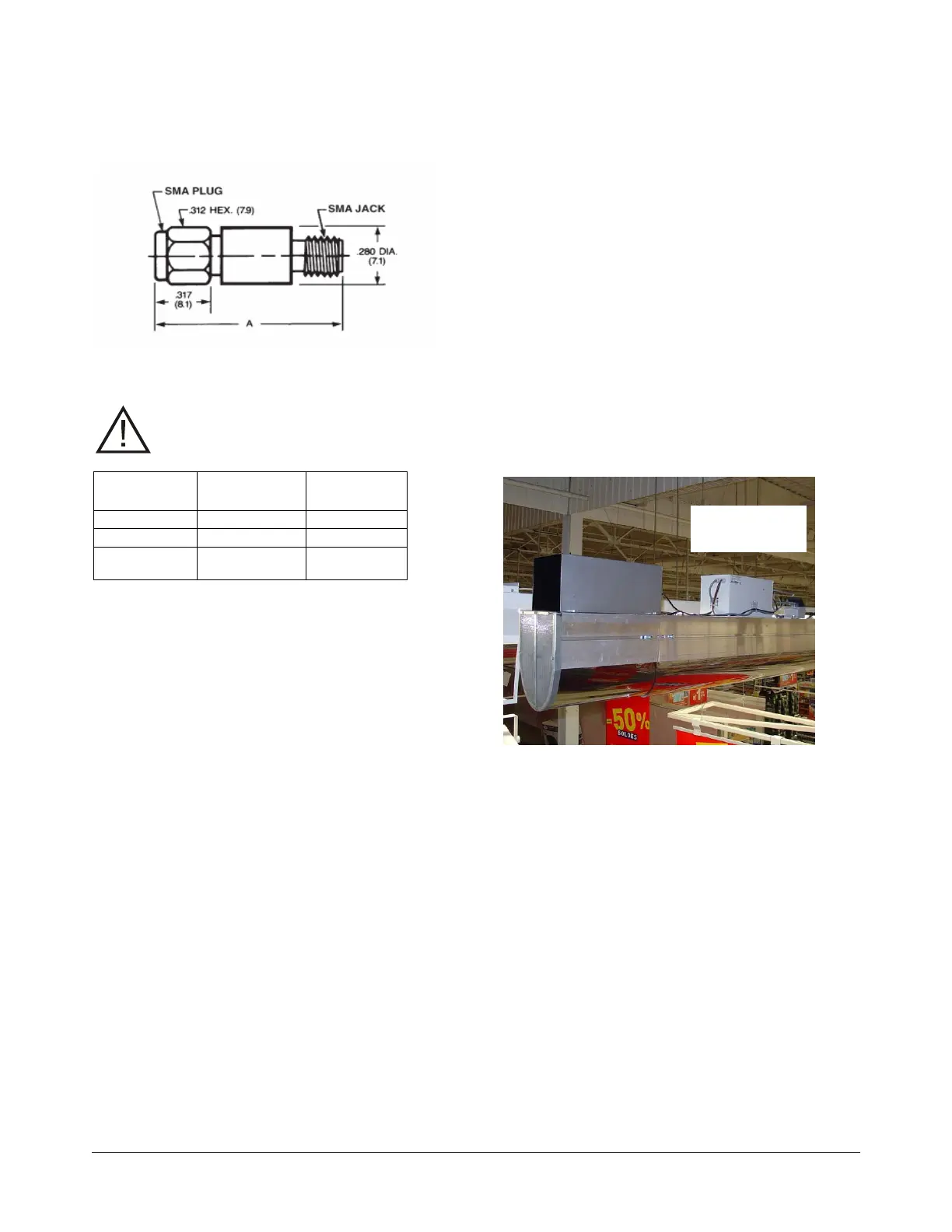

RF Attenuator
(dc to 6GHz usable)
The RF attenuator is located at the transmit
antenna on the trolley.
CAUTION: The attenuator is required
to comply with the CE regulation.
Rail
Distance
RF
Attenuator
Part
Number
10–45m 30dB ADSMA30DB
50–75m 20dB ADSMA20DB
75–100m 10dB or 15dB ADSMA10DB
ADSMA15DB
Note: There are environmental circumstances that
may require a different value.
Light Reduction Kit
SR3-END-COVER and ADRL3BUL3.5U
This kit prevents light reflections from entering the
cowling from each end of the rail.
1. Mount the ection onto the existing rail using the
hardware provided.
2. Attach the top hat to the top of the section to
cover the large cutout.
3. Add extra cowling to the rail structure.
4. Attach the new end cover.
Note: be sure to follow the installation guide for
minimizing light reflections into the cowling.
IMPORTANT! Ensure the customer understands
that if installation requirements are not met, some
light reflections cannot be removed from the
picture on the video monitor.
Old metal end
cover shown.
