SENSORRAIL IIIE ADRL3TRK SERIES 8200-0593-02, REV. A
INSTALLATION GUIDE
32 of 34

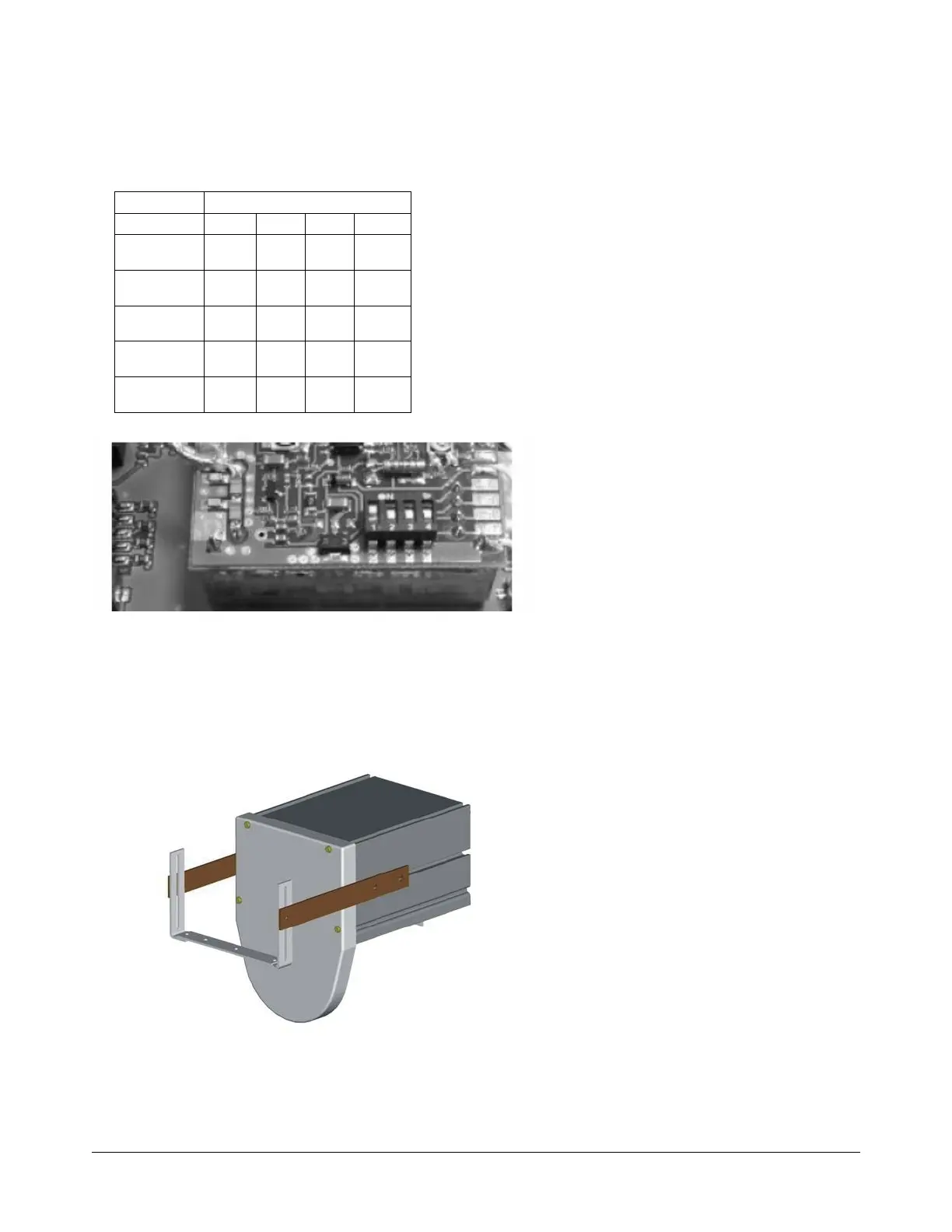

Appendix A: RF link DIP switch settings
If 2.4GHz devices interfere with the SensorRail, select one of the following alternate frequencies using the four-
position DIP switch located on the transmitter board of the trolley.
DIP Switch
Channel 1 2 3 4
Channel 1
(2414.5MHz)
ON OFF OFF OFF
Channel 2
(2428.5MHz)
OFF ON OFF OFF
Channel 3
(2442.5MHz)
ON ON OFF OFF
Channel 4
(2456.5MHz)
OFF OFF ON OFF
Channel 5
(2470.5MHz)
ON OFF ON OFF
Appendix B: Alternate RF antenna location
Use Install Kit ADRL3RXBRK.
