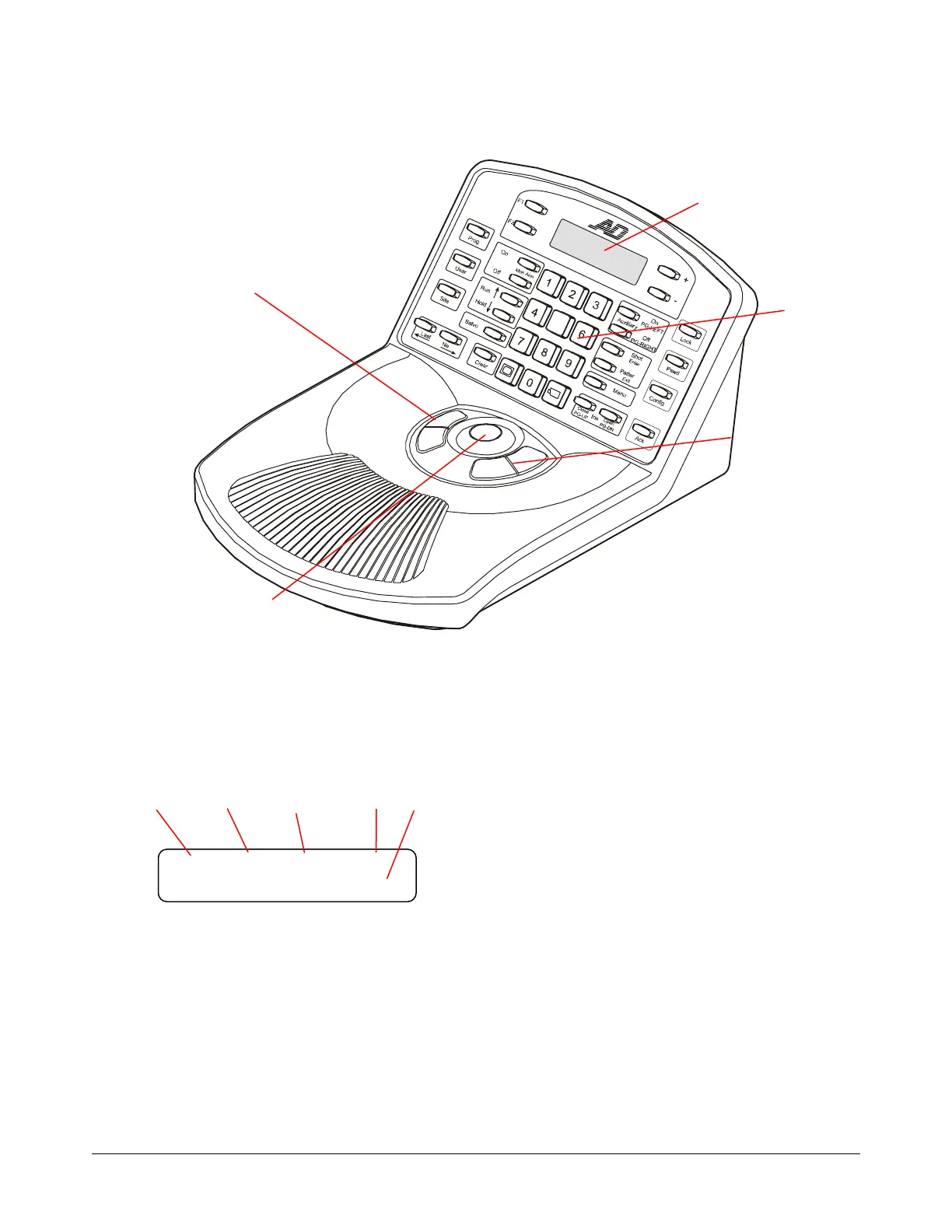

Figure 3: ADTTE keyboard features
n
5
x
t
1. The LCD displays status information, the
selected monitor and camera numbers, and
keyboard operating status. It also displays
system prompts and messages. The following
illustrates the fields that normally appear on
the LCD.
a b c d e
a. The Site (STS) field shows the status of
the connected switching system.
b. The Monitor (MON) field shows the
monitor number currently under keyboard
control.
c. The Camera (CAM) field shows the
camera number currently under keyboard
control.
d. The Entry field shows the numbers being
entered on the keypad.
e. The Status field shows the current
operating state of the system. During
normal operation (Program mode), “P”
appears in this field. During system menu
programming, “M” appears in this field.
During keyboard lock mode, “L” appears in
this field.
2. The keypad enables you to call up video from
individual cameras and control their pre-
programmed movement. It also provides for
camera iris control, auxiliary control, monitor
selection, and the ability to clear alarms.
3. The focus buttons enable you to control a
camera's focus setting.
4. The zoom buttons enable you to control a
camera's zoom setting.
5. The Tracker Ball provides variable speed
control of a camera's pan and tilt.
Figure 4 illustrates the locations of the buttons on
the ADTTE keypad.
1. LCD Display
2. Keypad
3. Focus Buttons
(Near/Far)
5. Tracker Ball
4. Zoom Buttons
(In / Out)
STS MON CAM 1234
-L
To Next Page
