American Dynamics ADTTE Operation And Programming Guide

MEGAPOWER 48 / ADTTE 8200-0170-05, REV. A
OPERATION AND PROGRAMMING REFERENCE GUIDE 9 of 43
Note: You may also use the F1 function key to lock
and unlock the selected camera.
Command Function
2- F1
Lock the camera
1- F1
Unlock the camera
Controlling Cameras and Domes
With the ADTTE keyboard, you can control the pan,
tilt, zoom, focus and iris settings for appropriately
equipped cameras.
Using the Tracker Ball
The Tracker Ball controls the panning and tilting of
cameras connected to the switching system. To
control pan/tilt direction:
• Move the Tracker Ball left or right for pan control.
• Move the Tracker Ball towards (down) or away
from (up) for tilt control.

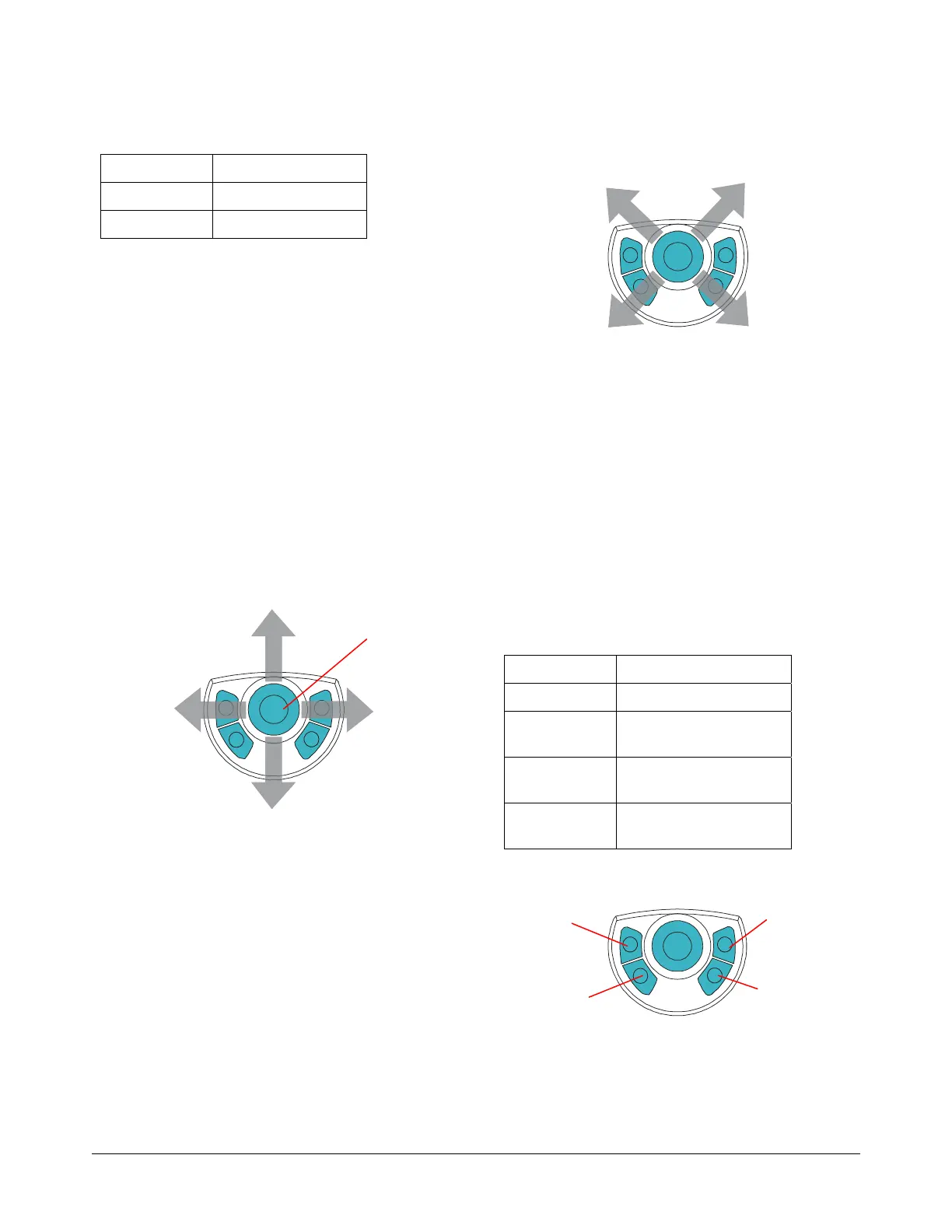

Figure 7: ADTTE Tracker Ball control pan/tilt
movement
When the Tracker Ball is moved diagonally, the
camera pans and tilts in the direction the Tracker
Ball moves.
Figure 8: ADTTE Tracker Ball control diagonal
movement
Note: For cameras with variable speed pan/tilt
capability, camera movement speed is proportional
to the positioning of the Tracker Ball. The further
from the stationary center position the Tracker Ball
travels, the faster the camera moves. Eight
independent speed levels are available for the up,
down, left, and right directions.
When the camera has been positioned
appropriately, release the Tracker Ball to the center
position.
Controlling Zoom and Focus
The zoom and focus controls are located to the left
and right of the Tracker Ball.
Command Function
Zoom In
Increase magnification
Zoom Out
Decrease
magnification
Focus Far
Adjust clarity for
distant objects
Focus Near
Adjust clarity for
nearby objects
Figure 9: ADTTE zoom and focus controls
Tracker Ball
Tilt U
p
Tilt Down
Pan
Left
Pan
Right
Move up
to left
Move up
to right
Move down
to right
Move down
to left
Focus Far
Focus Near
Zoom Out
(
wide
)
Zoom In
(
tele
)
