Page 6 of 11
AE-MC12N & MC22N
Operation Manual
773.376.0800 (P) • 773.376.2010 (F) • 3131 S. Canal St. Chicago, IL 60616
Revision 10/2015

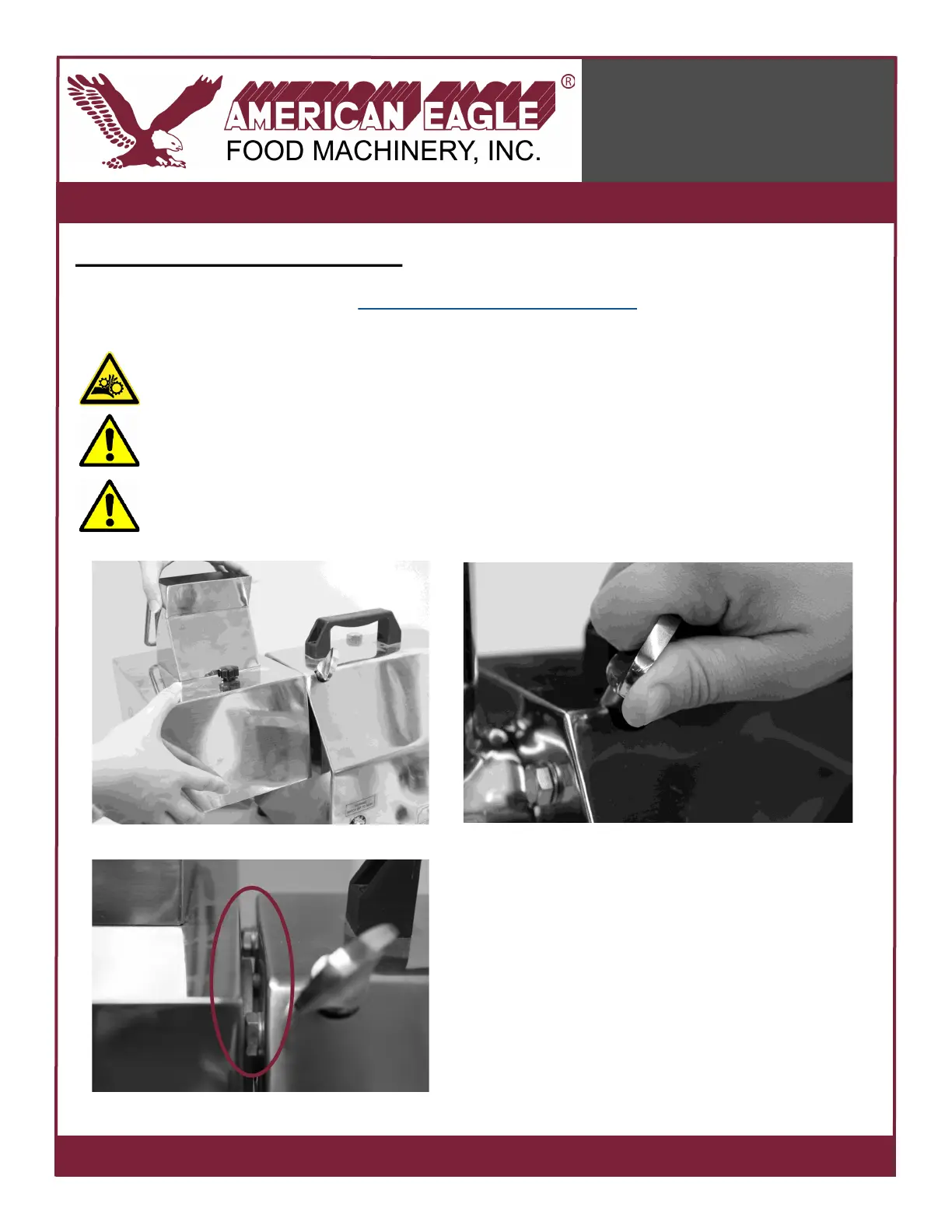

Assembly Instructions
CUTTER HEAD ASSEMBLY:
NOTE: Please see our website at www.americaneaglemachine.com for an instructional video on
proper assembly. Damage from improper assembly is not covered under warranty!
Figure 2 Figure 1
Figure 3
4. Make sure that cutter head is flush to the meat
grinder motor. After the attachment is installed, it
should resemble figure 3. If it does not resemble
figure 3, the attachment housing needs to be
adjusted to provide proper space.
1. To avoid injury, unplug the meat cutter before assembling the cutter head.
2. Insert the attachment into the hub, ensure the pin on the attachment aligns with the
hole on the motor unit and the attachment is fully inserted. See Figure 1.
3. Tighten the thumb screw clockwise until it is secure. Do not use a tool or over
tighten! See Figure 2.
