ALS-600PS Voltage Settings
Before opening up the ALS-600PS make sure the supply is unplugged. On the ALS-
600PS there are several solder on jumpers to set the line voltage range. Change the
jumpers only if the line voltage is low. For most cases, unless you need to change over
to 220VAC there should not be a need to change the jumpers.

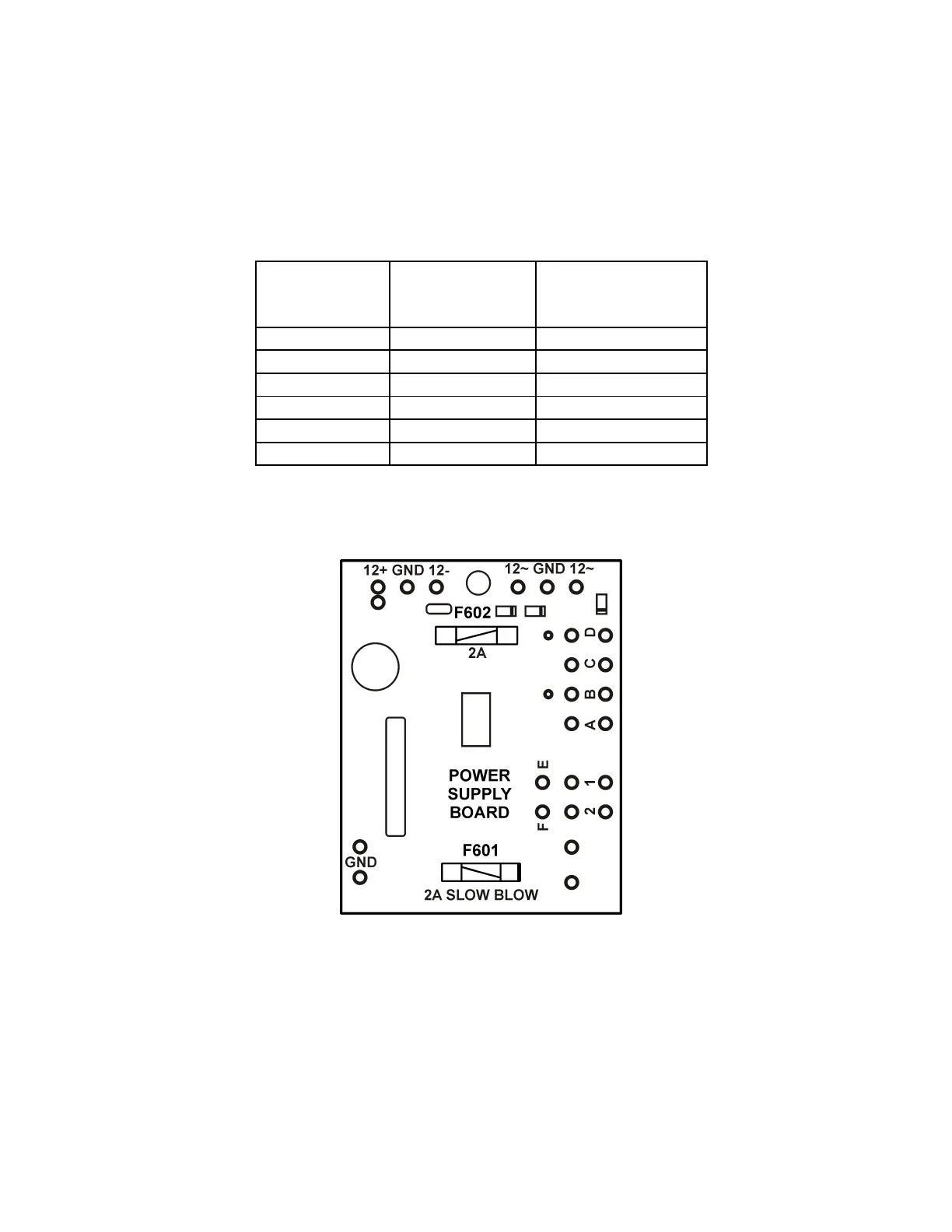

Table 7 ALS-600PS Voltage Settings
Figure 4 ALS-600PS Jumper Pins
AC LINE
VOLTAGE
RANGE
PRIMARY
BUCK BOOST
95-110 A to B C to D E to 2 F to 1
105-120 A to B C to D E to F
115-130 A to B C to D E to 1 F to 2
200-220 B to C E to 2 F to 1
210-230 B to C E to F
220-240 B to C E to 1 F to 2
