STEP
3
C
B
A
F
E
F
F
F
E
E
E
F F
C
Proper orientation of CAM LOCK
× 8
Ø15X10 mm

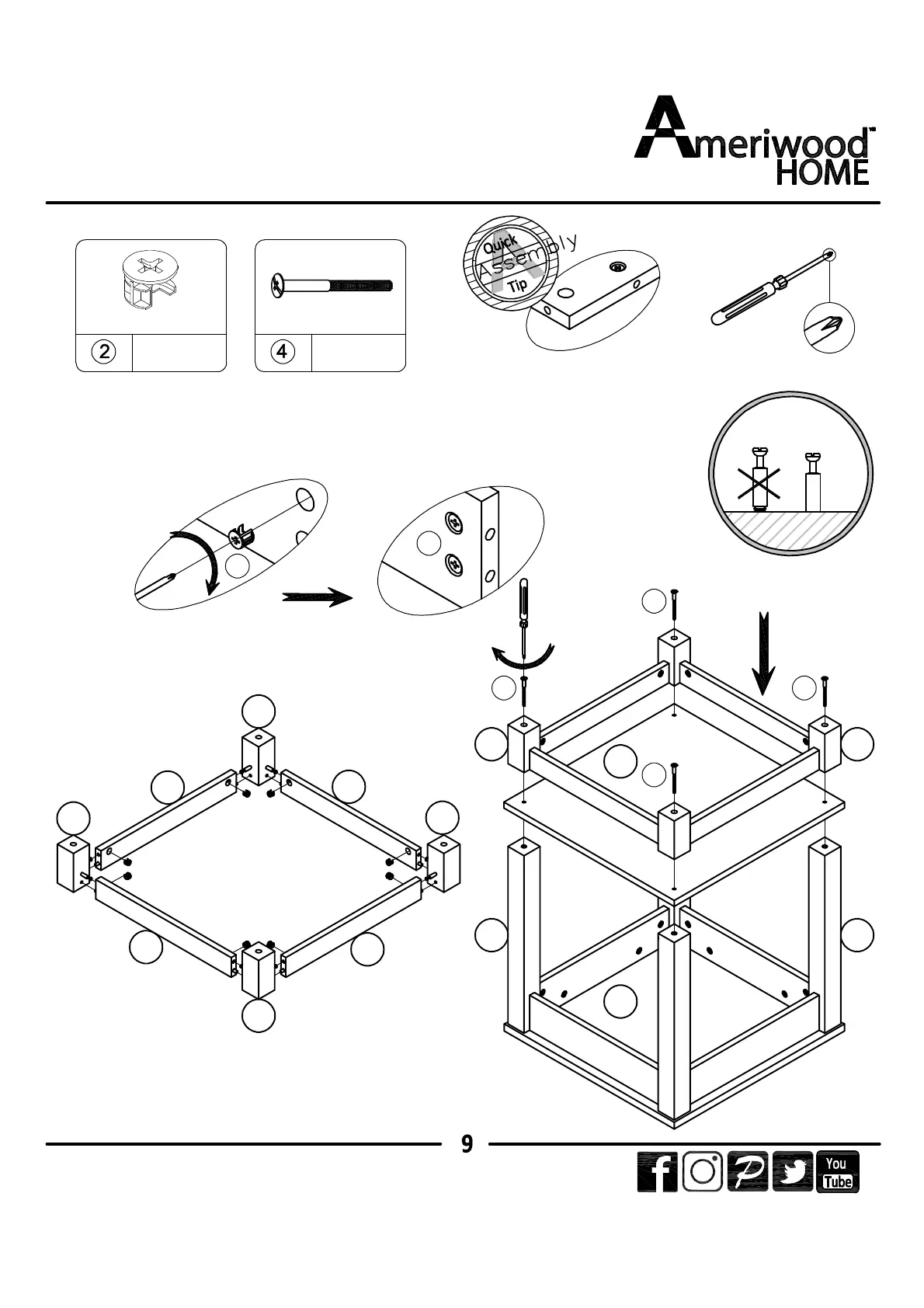

3.1 Attach (E) to (F) with (2) as illustrated.
3.2 Attach (E), (F) to (B), (C) with (4) as illustrated.
M6x70 mm
× 4
2
2
4
4 4
4
