50 26-03-2004 123200 03

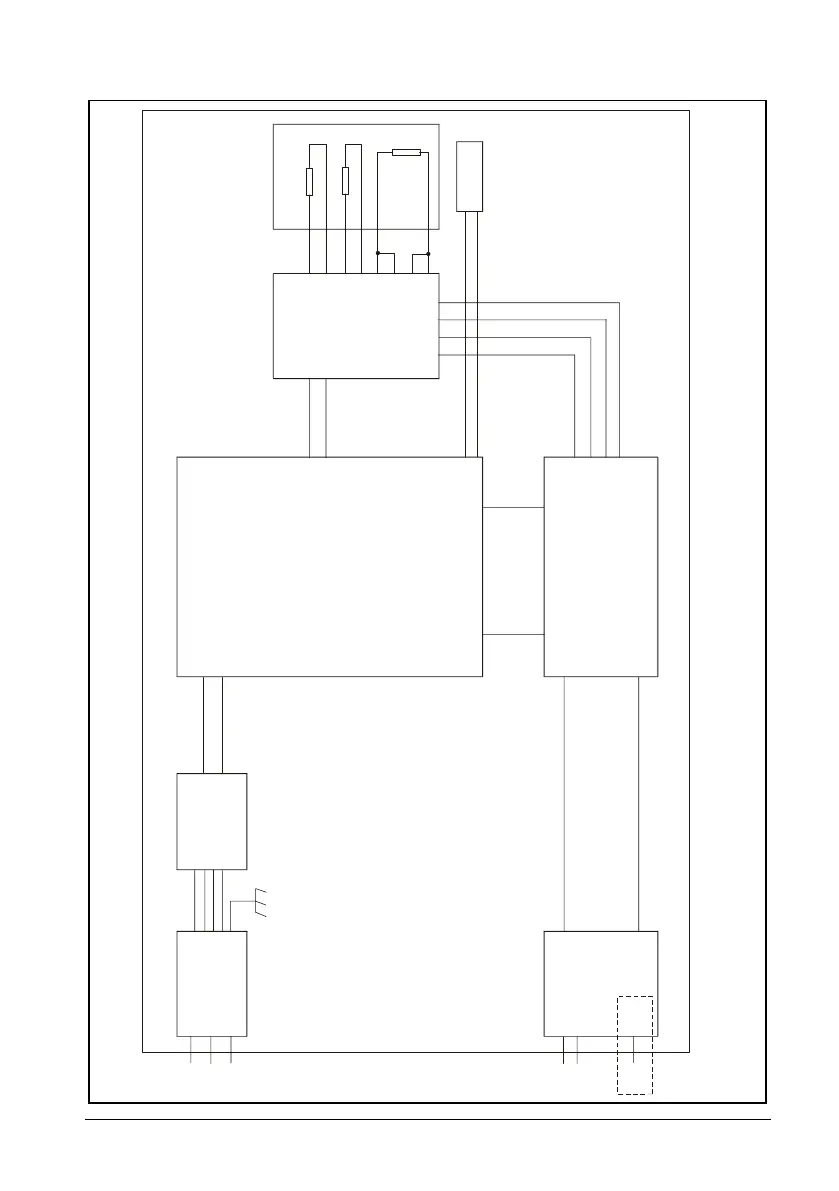

4.8 Wiring diagram – CTC-140 A/-RS, MTC-140 A
MAINS INLET WITH
ORANGE
BROWN
RED
BLACK
A
B
C
D
GND
RED
RED
CN5-1
CN5-2
CN4-1
CN4-1 BLACK
TE 1
TE 2
8V/6A
8V/6A
WELL
+
-
24 VDC FAN
105356 Rev 00
Page 1
R1
PT 1000
BLACK
RED
RED
CN3-1
CN3-2
CN2-1
CN 1
CN 1
CN 2
CN3-1
CN3-2
CN3-3
CN3-4
1
1
1
1
10
CN 1
I/O PCB
RS232
SWITCH TEST +
SWITCH TEST -
10
16
16
CN2-2
CN4-2
CN4-2
CN5-1
CN5-2
CN2-1
CN2-2
CN2-3
CN1-1
CN1-2
CN1-3
CN1-4
CN2-4
POWER PCB
CONNECTION PCB
CONTROLLER PCB
TRAFO 144VA
FUSE AND VOLTAGE
SELECTOR
Optional
