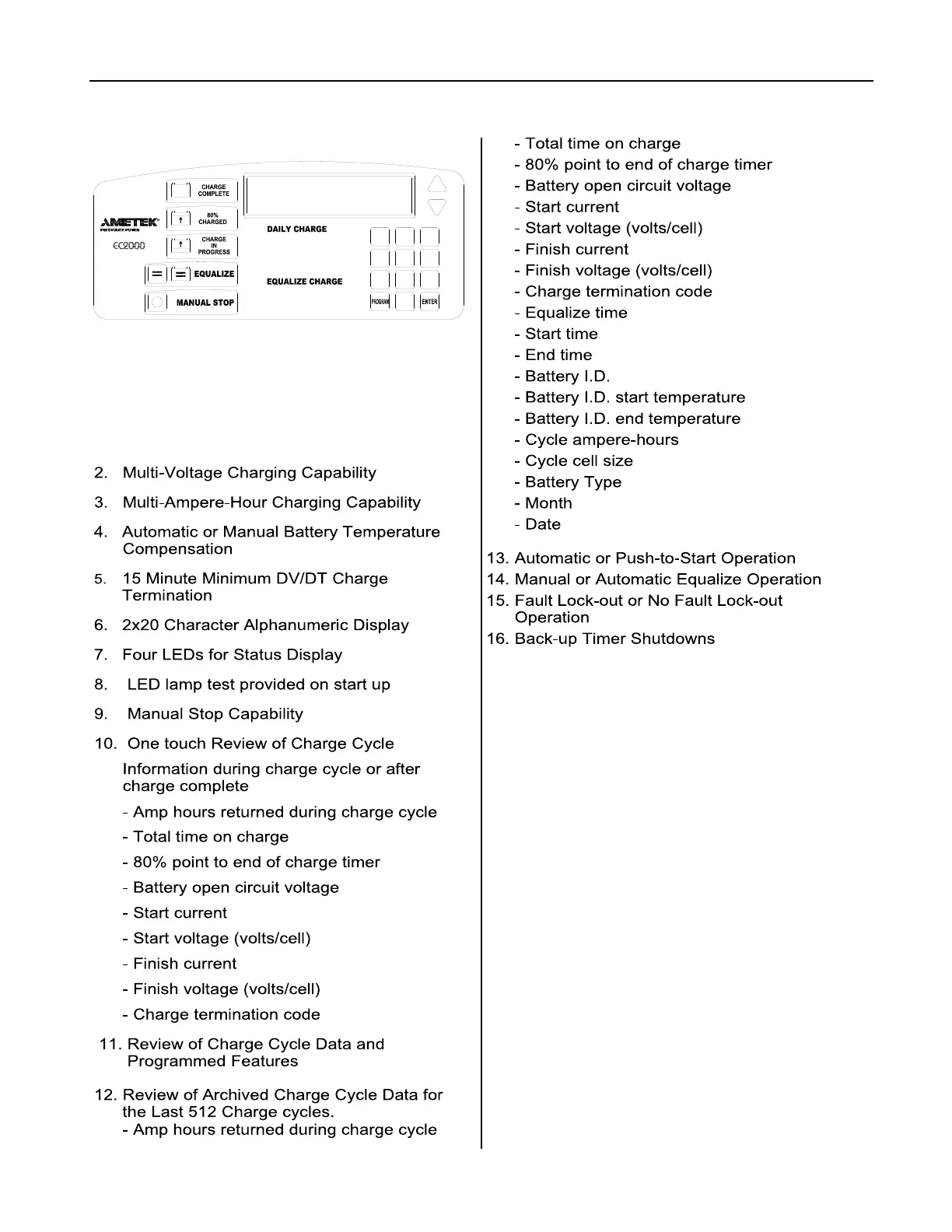

Main Features
1. 25 A/100AH high rate opportunity charging output.
17. Failure Mode Diagnostics
- High Battery Reject
- Low Battery Reject
- Battery Reject
- Battery Over-temperature
- Setup Error
- Low Voltage S.D.
- Charge Curve Error
- Low Current S.D.
- Backup Timer
- Manual Stop
- Fault Lockout
- Over Maximum Amp Hour Returned S.D.
- Charger Overtemperature S.D.
- DIDT S.D.
- Phase Error
18. One Part Number Control is User/Factory
programmable for 6-9-12-18-24-36-40 Cells.
19. Adjustable 8-99 Hour Refresh Charge Delay
20. Voltage Time Feature (DV/DT Disable)
21. “Cell Forming” Feature (Programmable from
EC2000 CONTROL FEATURES
193111-121
EC2000 CONTROL FEATURES
Figure 7-1
charger and press
the EQUALIZE key.
Connect battery to
Connect battery to
start automatically
after a brief delay.
charger. Charger will
1 2
3
4
5
6
7 8 9
0
CYCLE
REVIEW
FINISH
AMPS
FINISH
V/C
TERM
CODE
START
V/C
START
AMPS
BAT
OCV
AH
RET
TIME
ON CHG
TIME
>80%
