Ametek JOFRA ATC-650 B Service Manual

122770 06 18-09-2007 45
Cut the strap holding together the
cables and carefully retract the
well.

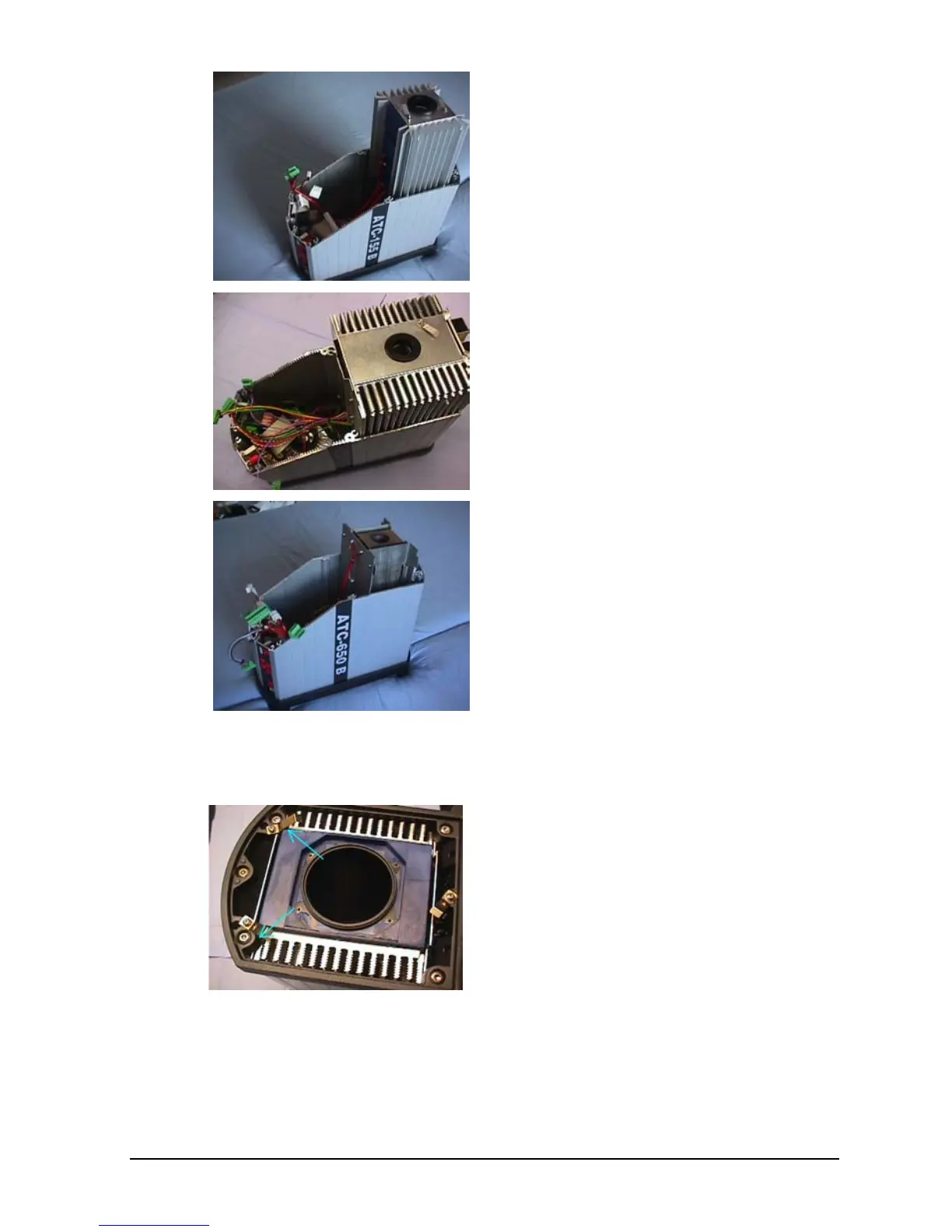

This picture shows the ATC-155 B
calibrator. Note the position of the
straps for later assembly.
This picture shows the ATC-157 B.
Note that the aluminium plate is
mounted on the well.
This picture shows the ATC-650 B
calibrator.
ATC-140/157 A/B
To prevent the well in ATC-140 and
ATC-157 from rattling, rubber plugs
(60G032) are fitted in between the
heat sink on the well and the outer
casing of the instrument, one in
each side.
