Ametek JOFRA ATC-650 B

105446 06 23-03-2009 17

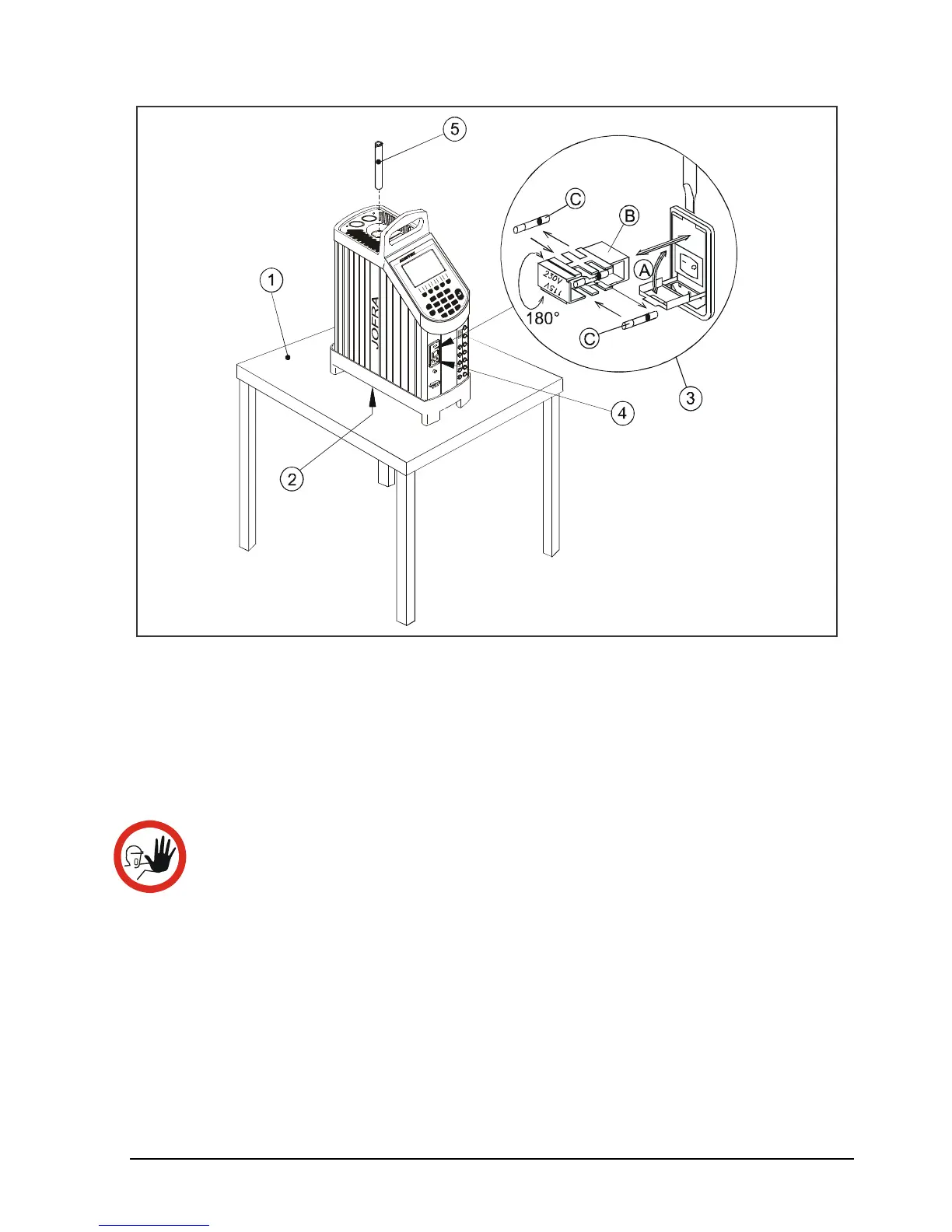

Fig. 1a
3.2.1 When setting up the dry-block calibrator, you must…

Place the calibrator on an even horizontal surface where you
intend to use it.
Caution…
 Do not use the instrument if the internal fan is out of
order.

Ensure a free supply of air to the internal fan located at the
bottom of the instrument.
The area around the calibrator should be free of draught, dirt,
flammable substances, etc.
