Ametek JOFRA ATC-650 B

48 23-03-2009 105446 06


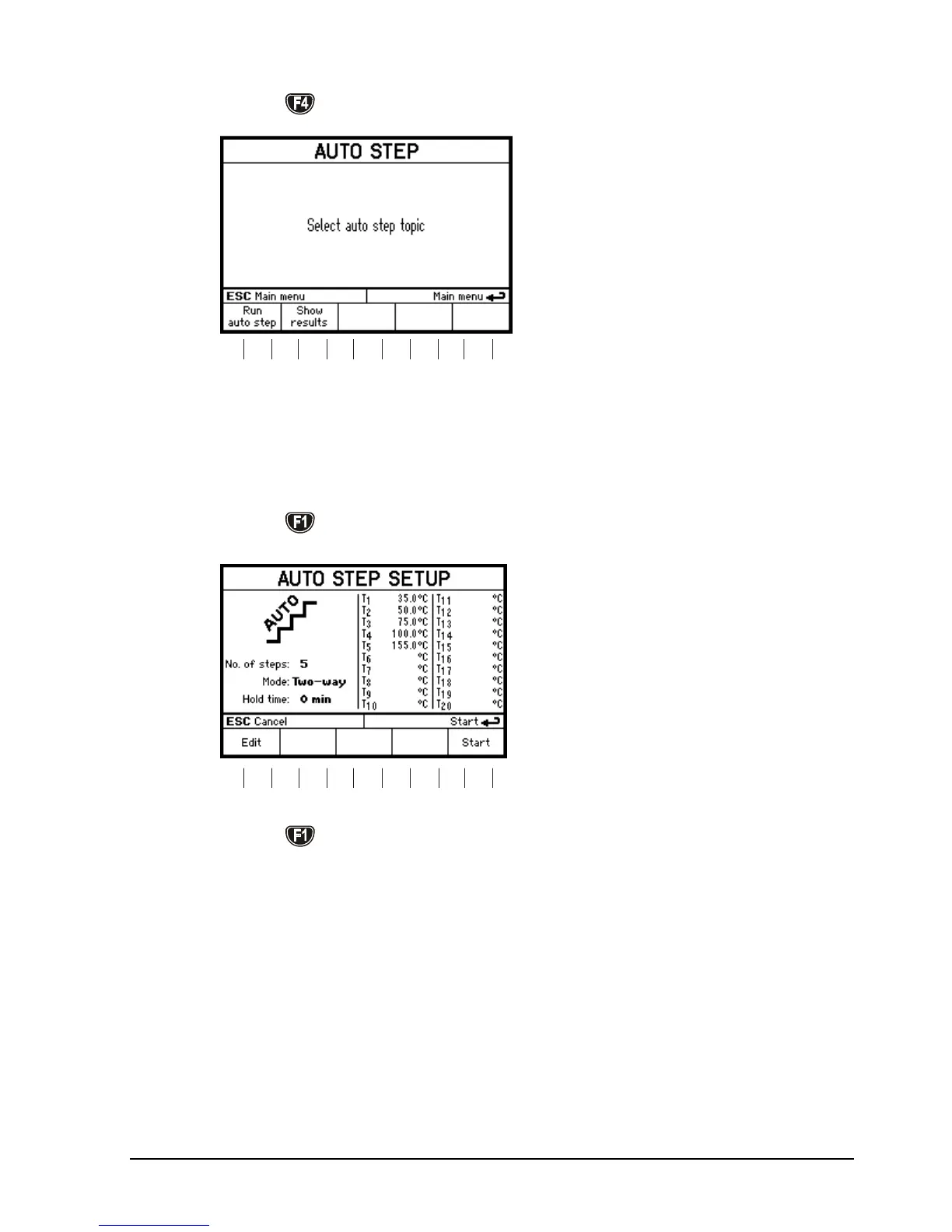

Press
to select the Auto step menu.
F3F2 F4 F5F1
Two functions are available using the soft keys
4.7.1 Running an Auto step calibration

Press
to select Run auto step.
F3F2 F4 F5F1

Press
to enable the editor to change the Auto step setup
and step temperature values.
 No of steps: the number of temperature steps per
direction (T
1
T
x
) can be set using integers from 1 – 20.
When a Two-way mode is selected, the same number of
steps are used for the second direction (T
x
T
1
).
 Mode: toggle between "One-way" and "Two-way".
 Hold time: defines the time (in minutes) the temperature
is maintained (after it is stable) for each step.
 T step values: must be set within the sensors permitted
range.
