Support rod set
Sensor under test
Warning
Ensure that the sensor is absolutely clean and dry, as a few
drops of water might cause a steam explosion.

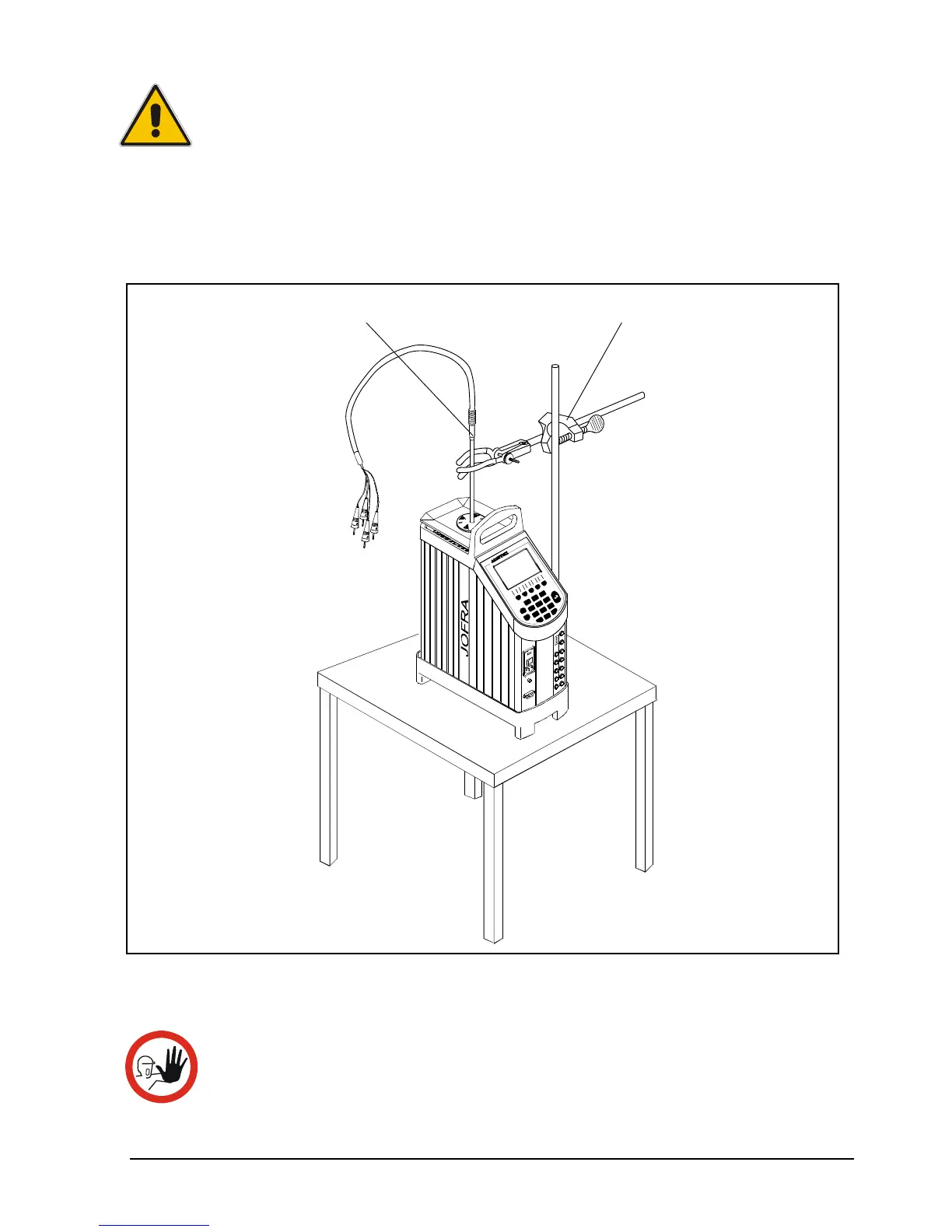

Place the sensor to be calibrated vertically into the well. It is
recommended to use the optional support rod set for a
correct position during calibration. See fig. 2b.
Fig. 2b
Caution…
The tip of the sensor should rest at the bottom of the
sensor basket for optimum results.
