Main screen display

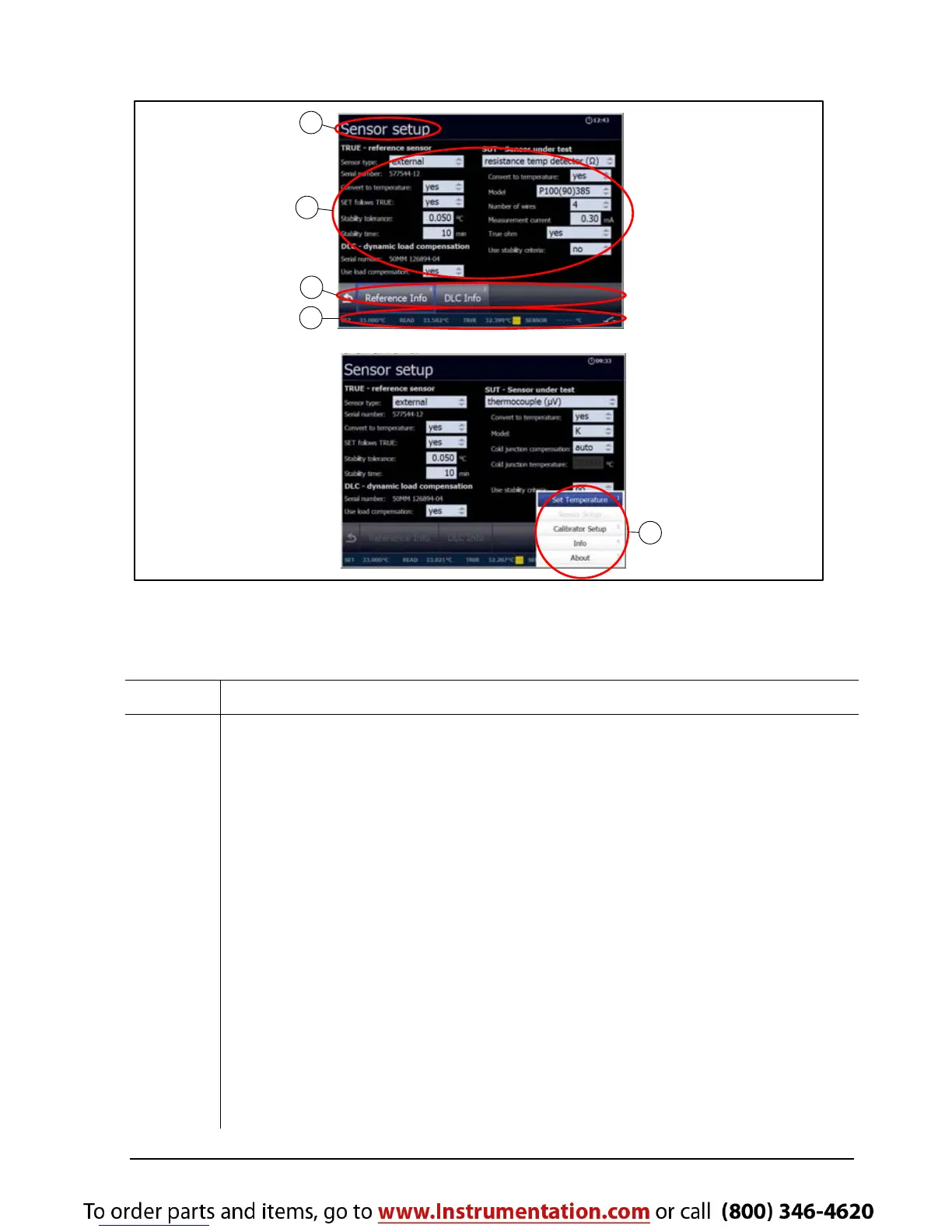

Fig. 10
The Main screen display is divided into four separate areas:
Pos.
Description
1
Heading: Informs you of the current menu selected.
2
Setup field: Provides the bulk of setup data in the menu. This
data can be changed by moving the cursor to the various
fields.
3
Horizontal menu: Provides you with the relevant menu
options that can be selected at the present point. Each option
can be activated either by selecting and activating the option
– or simply by pressing the numeric key that corresponds to
the option number.
4
Readings: This reading line is always visible and informs you
of the current readings.
5
Vertical menu: This menu can be activated throughout the
entire calibration. The menu can be switched on and of in all
stages of operating the calibrator.
1
2
3
4
5
