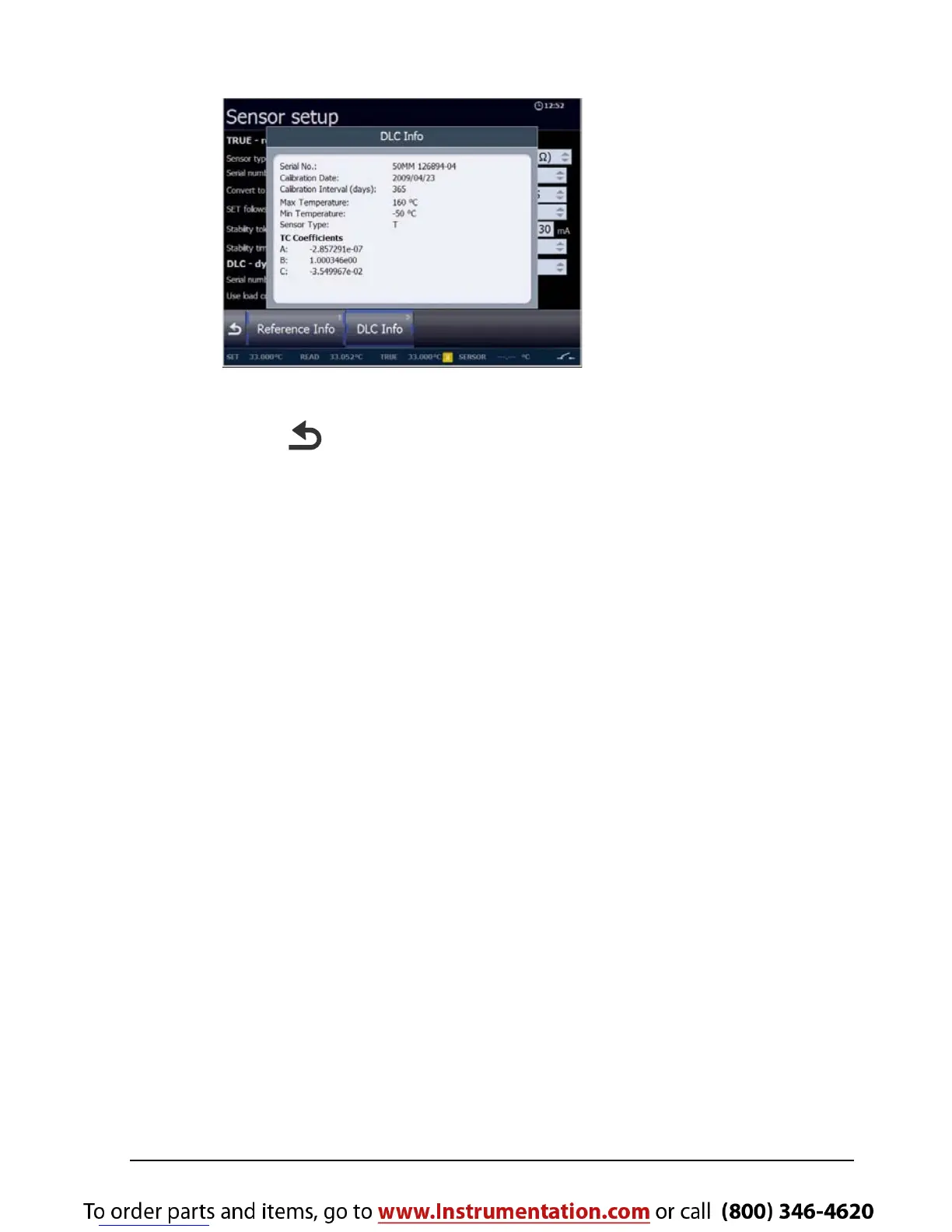

View the DLC Info box by selecting “DLC Info
2
”.
The DLC Info box is displayed.
Press to return to the Sensor setup menu.
