1) 120V and 208V Output

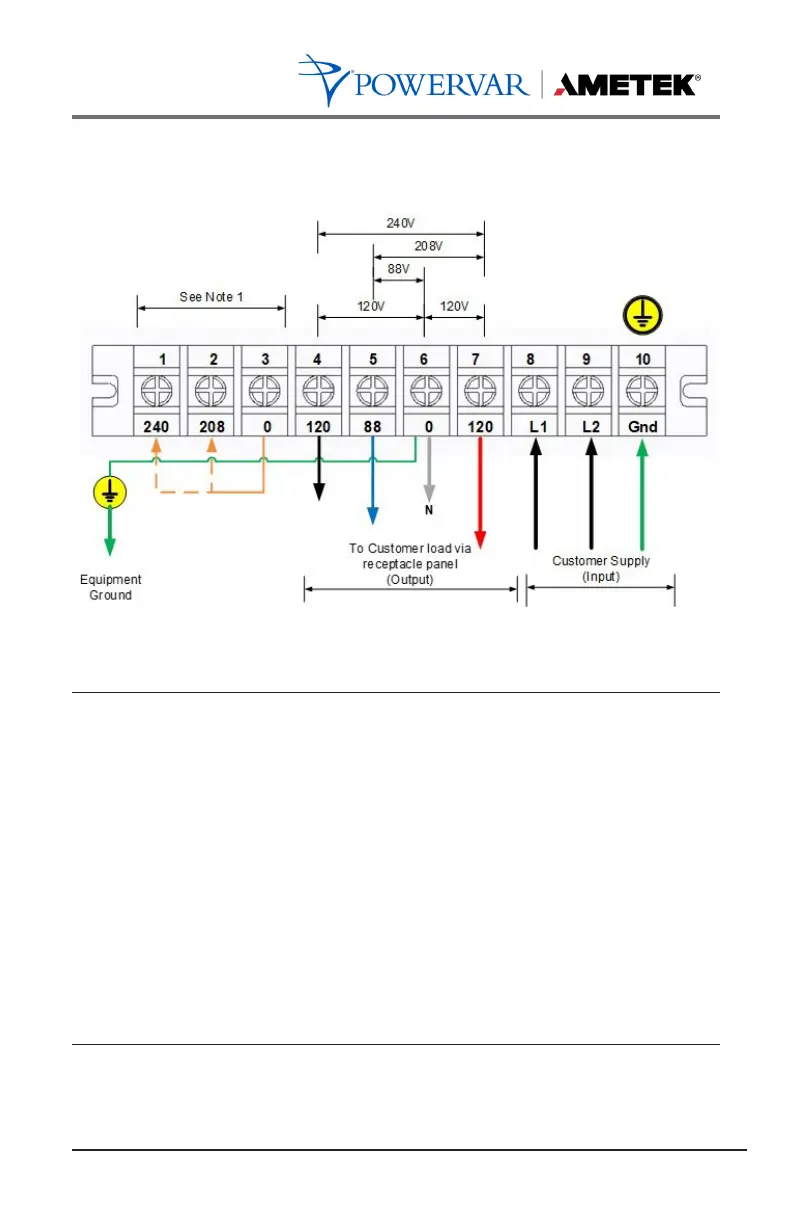

Figure 1: Output wiring – 120V & 208V
NOTE 1: Static Switch Output (SSO) Tap Selection must match
expected output voltage. Install a jumper between 0-208V
or 0-240V.
NOTE 2: 208 is obtained by using the 120 and 88 terminals.
NOTE 3: Make sure that the wires are connected tightly to the
terminals.
NOTE 4: Install the output breaker between the output terminal and
the load. The breaker should be qualified with leakage
current protection if necessary.
