2) 120V and 240V Output

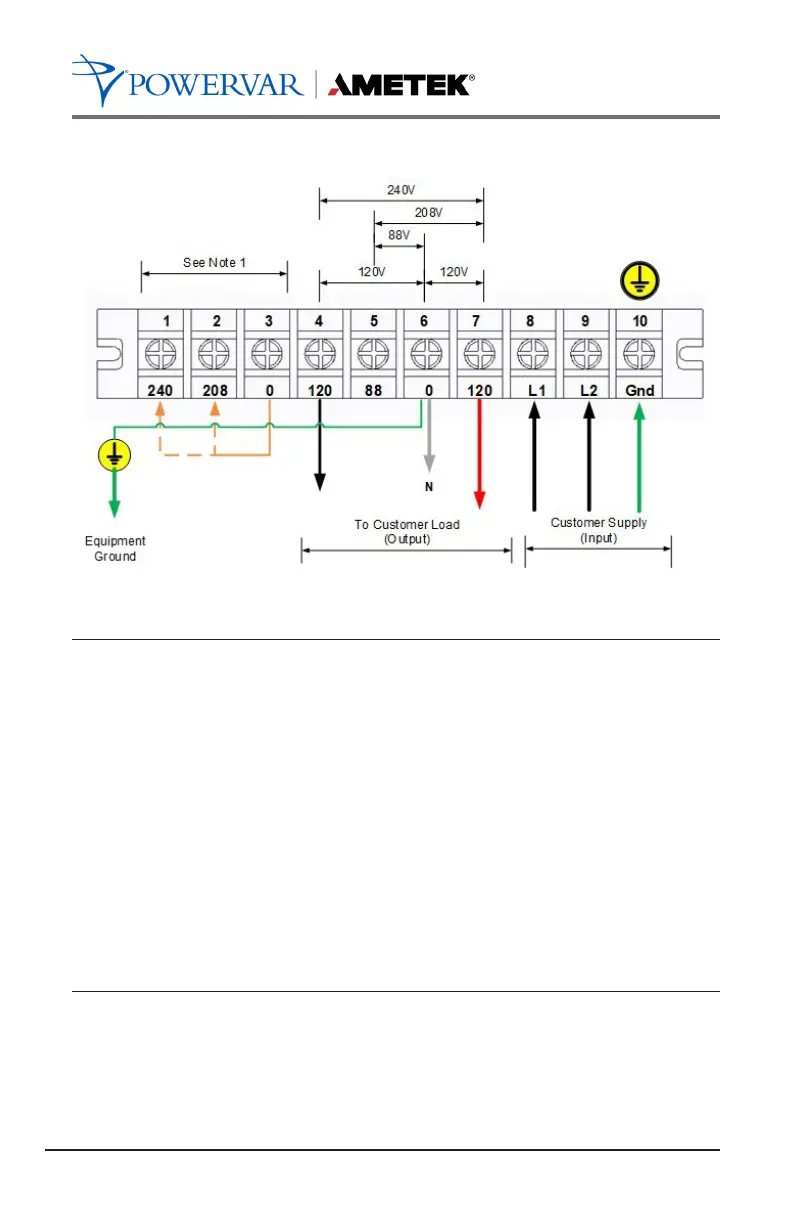

Figure 2: Output wiring – 120V & 240V
NOTE 1: Static Switch Output (SSO) must match the output
voltage. Install a jumper between 0-208V or 0-240V.
NOTE 2: Split phase wiring, load shall be balanced 50 / 50 on each
side of transformer taps.
NOTE 3: Make sure that the wires are connected tightly to the
terminals.
NOTE 4: Install the output breaker between the output terminal and
the load. The breaker should be qualified with leakage
current protection if necessary.
