3) 120V Outputs

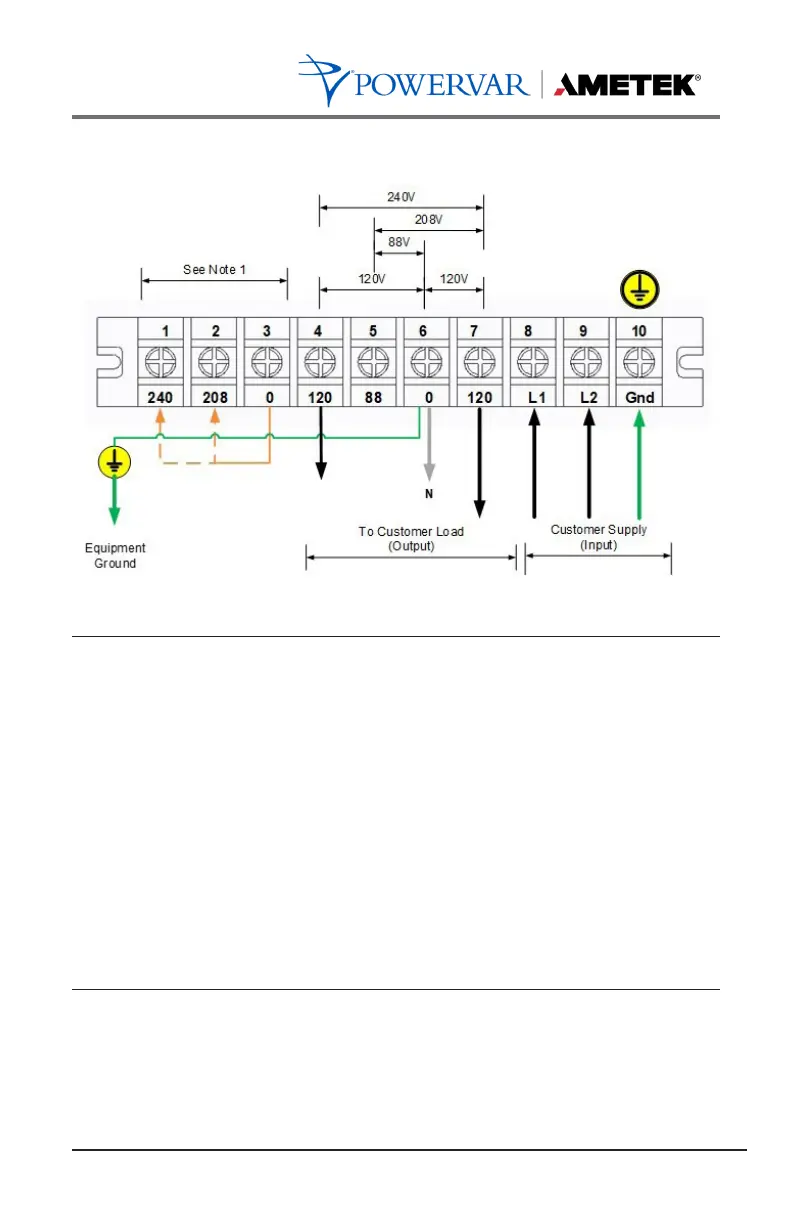

Figure 3: Output wiring – 120V
NOTE 1: Static Switch Output (SSO) must match the output
voltage. Install a jumper between 0-208V or 0-240V.
NOTE 2: There are 2 sets of 120V outputs. Each set can carry half
of the total UPS capacity.
NOTE 3: Make sure that the wires are connected tightly to the
terminals.
NOTE 4: Install the output breaker between the output terminal and
the load. The breaker should be qualified with leakage
current protection if necessary.
