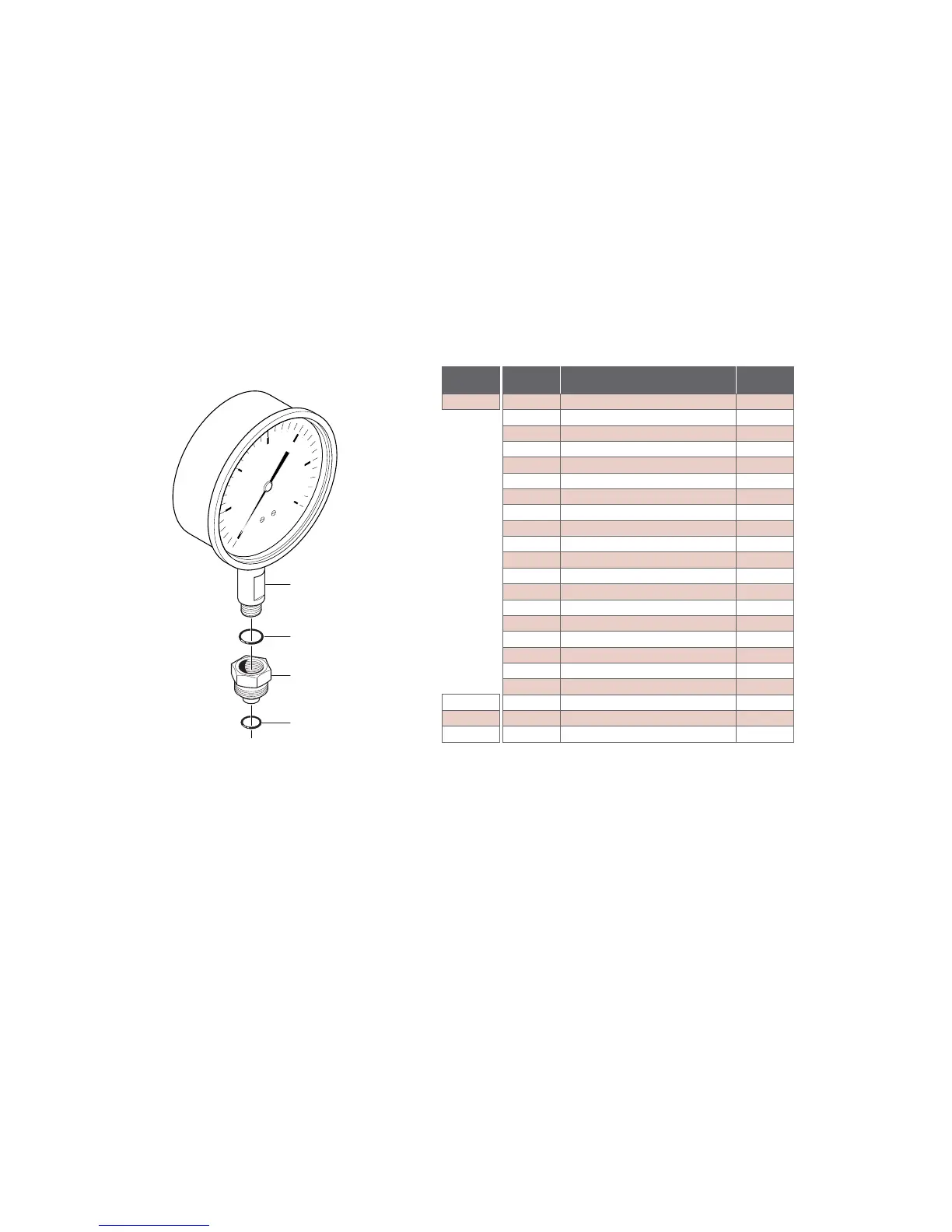

Figure 4 • Gauge and Fitting Assembly and Parts List
Item
Number
Part
Number
Description
Units Per
Assembly
1
— Gauge and Fitting Assembly 4
T-274 Test Gauge, 4 ½", 0-30 psi
*
T-275 Test Gauge, 4 ½", 0-160 psi
*
T-276 Test Gauge, 4 ½", 0-600 psi
*
T-277 Test Gauge, 4 ½", 0-3000 psi
*
T-278 Test Gauge, 4 ½", 0-5000 psi
*
T-279 Test Gauge, 4 ½", 0-10 000 psi
*
T-590 Test Gauge, 4 ½", 0 - 2 kg/cm²
*
T-591 Test Gauge, 4 ½", 0 - 42 kg/cm²
*
T-592 Test Gauge, 4 ½", 0 - 210 kg/cm²
*
T-593 Test Gauge, 4 ½", 0 - 350 kg/cm²
*
T-596 Test Gauge, 4 ½", 0 - 200 kPa
*
T-597 Test Gauge, 4 ½", 0 - 4000 kPa
*
T-598 Test Gauge, 4 ½", 0 - 21 000 kPa
*
T-599 Test Gauge, 4 ½", 0 - 35 000 kPa
*
T-604 Test Gauge, 4 ½", 0 - 11 bar
*
T-605 Test Gauge, 4 ½", 0 - 42 bar
*
T-606 Test Gauge, 4 ½", 0 - 350 bar
*
T-607 Test Gauge, 4 ½", 0 - 700 bar
*
2
10-90009 O-ring, Body Union (T-136)
**
3 T-173 Body, Union
**
4 10-90027 O-ring, Body Union
**
*
Gauges will be provided based on the Comparator Testing Kit selected.
**
One each per Gauge Assembly.
