Type T Pump Operation Manual

FEATURES AND PARTS LISTS
Type T Series hand pumps may be ordered with either oil or a water/alcohol mixture as the pressure medium. There are three available seal packages for the
system: Buna-N, Viton®, and EPT.
All Type T Series hand pumps feature a vent valve, and dual volume control for rapid pressure increase at lower pressures and easier pumping at higher
pressures. T-1,
T-2, and T-3 models include a dual pressure port manifold with ne adjust, plus replacement o-rings and a set of service tools.
Refer to Figure 3 on page 25 for more details on the included tools.
T-1 and T-2 – Included Parts
X
Reference and Device Under Test Pressure Ports
Part Number Description
T-134 15/16-20 Male to 1/4" NPT Female Adapter
T-135 15/16-20 Male to 1/2" NPT Female Adapter
T-1-CPF – Included Parts
X
Reference and Device Under Test Pressure Ports
Part Number Description
5255 CPF Male to 15/16-20 Male Adapter (2)
4715 MP Female to 1/4" Female NPT Fitting
T-3 – Included Parts
X
Reference and Device Under Test Pressure Ports
Part Number Description
T-134 15/16-20 Male to 1/4" NPT Female Adapter
T-135 15/16-20 Male to 1/2" NPT Female Adapter
– Set of 4 Test Gauges
*
*
For more details refer to T-3 Pumps for Hydraulic Comparator Kits on page 2
and to Figure 4 on page 26.

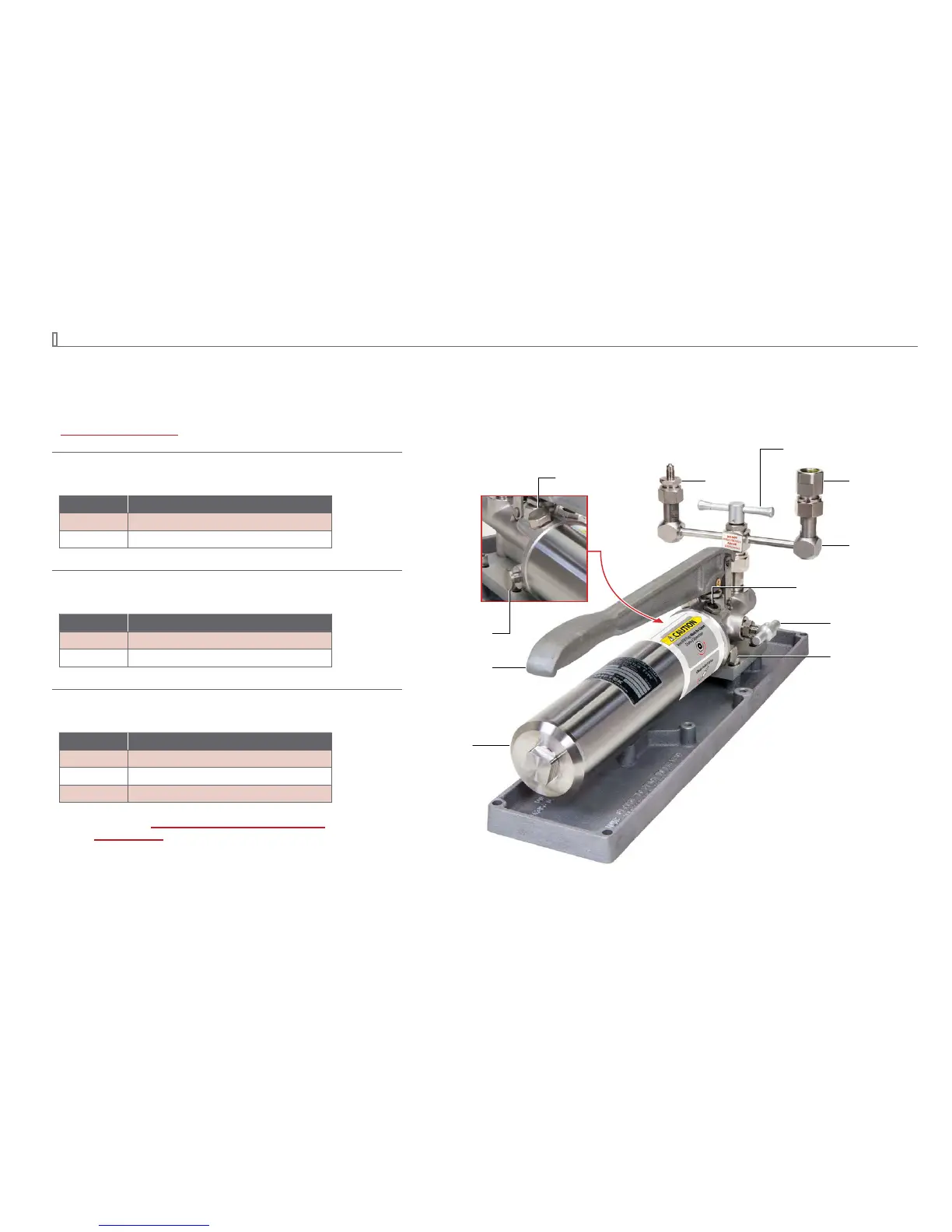

Pump Handle
Valve Rod Selector
CPF Fitting
Reservoir Tube
Vent Valve
Check Valve Plug
NPT Union Body
Fine Adjust
Manifold Assembly
Fill and Vent Relief Plug
Check Valve Plug
